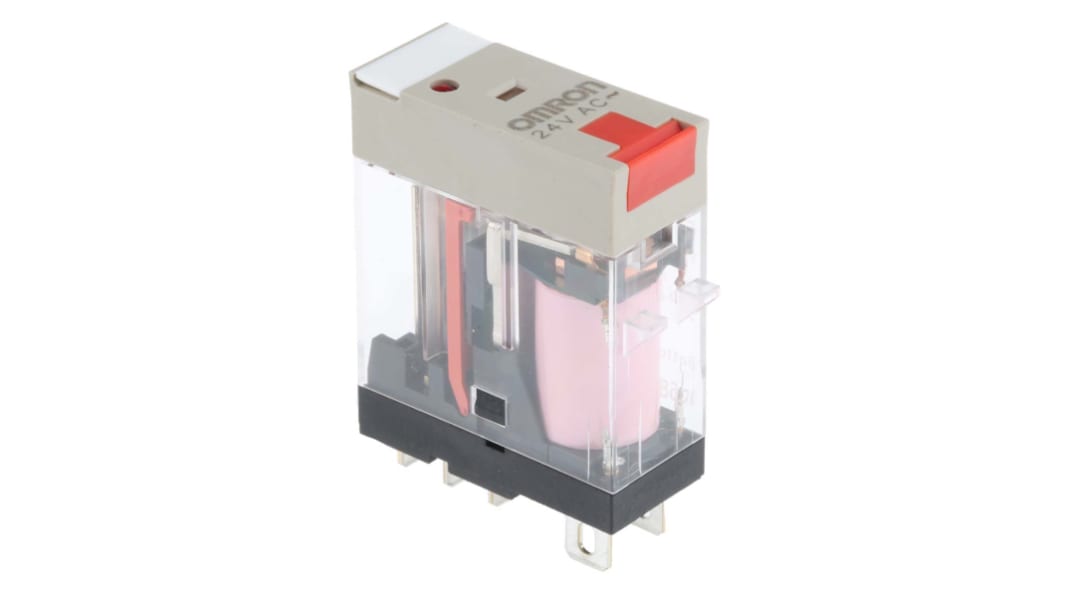

Omron PCB Mount Power Relay, 24V ac Coil, 10A Switching Current, SPDT

RS Stock No.:: 329-7184
Mfr. Part No.:: G2R-1-SNI AC24(S)
Manufacturer:: Omron

Omron PCB Mount Power Relay, 24V ac Coil, 10A Switching Current, SPDT

Bulk discount available

Price Each

€9.37

(exc. VAT)

€11.53

(inc. VAT)

9 Within 1 working day(s) (IE stock)*

330 Within 2 working day(s) (EU stock)

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit
1 - 4	€9.37
5 - 9	€9.09
10 +	€8.72

RS Stock No.:: 329-7184
Mfr. Part No.:: G2R-1-SNI AC24(S)
Manufacturer:: Omron

G2RS Series with Test Button

Integral coil status LED, and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100mΩ
Coil to contact isolation: 5000Vac
Operating temperature range: -40 to + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately

Note

Can be used as a replacement for earlier version of G2R-SN series, please check height clearance.

Approvals

UL, CSA, VDE

Omron G2R Series Power Relay, SPDT Contact Configuration, 24V AC Coil Voltage - G2R-1-SNI AC24(S)

This power relay is engineered for efficient control in various automation applications. It operates with a coil voltage of 24V AC, making it compatible with multiple electrical systems. With a switching current capacity of 10A and a single pole, this SPDT relay is suitable for numerous tasks in electrical and mechanical sectors. Its PCB mount design ensures reliable operation across various setups, making it a vital component for professionals.

Features & Benefits

• 24V AC coil voltage, ideal for standard applications
• SPDT configuration offers flexible switching options
• PCB mounting design simplifies installation in compact spaces
• 10A switching current accommodates high-load devices
• Through-hole design ensures secure connections on circuit boards
• Silver alloy contact material enhances durability and electrical performance

Applications

• Utilised in automation controls for machinery and equipment
• Implemented in HVAC systems for effective regulation
• Used in motor control circuits for reliable performance
• Ideal for circuit protection in various electrical assemblies

How is this component mounted in a project?

It features a PCB mount design that allows for straightforward installation on printed circuit boards using through-hole connections.

What is the maximum voltage it can handle?

The component can handle a maximum switching voltage of 380V AC and 125V DC, offering flexibility for different applications.

What temperatures can this relay operate within?

It operates effectively in environments with temperatures ranging from -40°C to +70°C, ensuring consistent performance across various settings.

What is the expected lifecycle of this relay?

The relay has a lifespan of up to 1,000,000 electrical cycles and 10,000,000 mechanical cycles, promoting extended use and dependability.

Attribute	Value
Coil Voltage	24V ac
Contact Configuration	SPDT
Mounting Type	PCB Mount
Switching Current	10A
Number of Poles	1
Latching	No
Terminal Type	Through Hole
Maximum Switching Voltage AC	380V ac
Maximum Switching Voltage DC	125V dc
Length	29mm
Coil Resistance	260Ω
Coil Power	900mW
Series	G2R
Standards Met	CE
Height	29mm
Depth	13mm
Isolation Coil To Contact	5kV ac
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-40°C
Contact Material	Silver Alloy
Life	1000000 (Electrical) cycles, 10000000 (Mechanical) cycles
Maximum Switching Power AC	2.5 kVA
Maximum Switching Power DC	300 W
Application	Power
