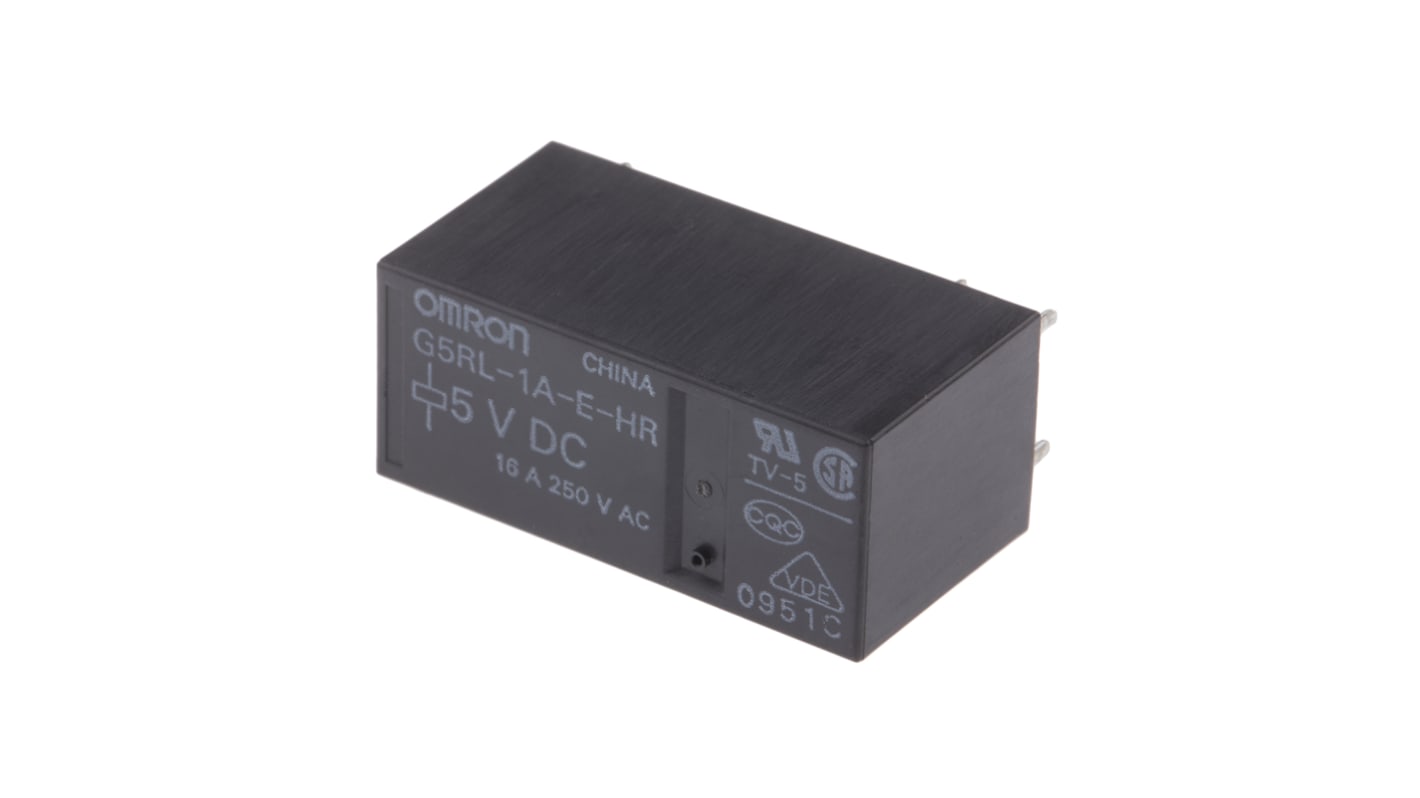

Omron PCB Power Relay, 5 V dc Coil, 16 A Switching Current, SPST
- RS Stock No.:
- 683-9239
- Mfr. Part No.:
- G5RL-1A-E-HR DC5
- Manufacturer:
- Omron
Bulk discount available
Subtotal (1 unit)*
€4.26
(exc. VAT)
€5.24
(inc. VAT)
Temporarily out of stock
- 21 unit(s) shipping from 24 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | €4.26 |
| 25 - 49 | €3.71 |
| 50 - 99 | €3.42 |
| 100 - 249 | €3.22 |
| 250 + | €2.90 |
*price indicative
- RS Stock No.:
- 683-9239
- Mfr. Part No.:
- G5RL-1A-E-HR DC5
- Manufacturer:
- Omron
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 5 V dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | G5RL | |
| Terminal Type | Solder | |
| Switching Current | 16 A | |
| Switching AC Voltage | 250 V ac | |
| Switching DC Voltage | 24 V dc | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 29mm | |
| Standards/Approvals | VDE, UL, RoHS, EN, CSA | |
| Coil Power | 0.75W | |
| Width | 12.7 mm | |
| Height | 15.7mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 5 V dc | ||
Product Type Power Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series G5RL | ||
Terminal Type Solder | ||
Switching Current 16 A | ||
Switching AC Voltage 250 V ac | ||
Switching DC Voltage 24 V dc | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 29mm | ||
Standards/Approvals VDE, UL, RoHS, EN, CSA | ||
Coil Power 0.75W | ||
Width 12.7 mm | ||
Height 15.7mm | ||
Contact Material Silver Alloy | ||
- COO (Country of Origin):
- CN
G5RL Series
Low noise "Silent" operation versions - almost inaudible, 44dB @ 15cm
High inrush versions - inrush peak currents up to 100A
AC versions - 24, 120 & 240Vac coils
Flux proof
8mm creepage/clearance between coil and contacts
Low profile: 15.7mm max height
Note
Operating temperature range -40 to 85°C (DC coil), -40 to 70°C (AC coil)
Approvals
UL, CSA, VDE
