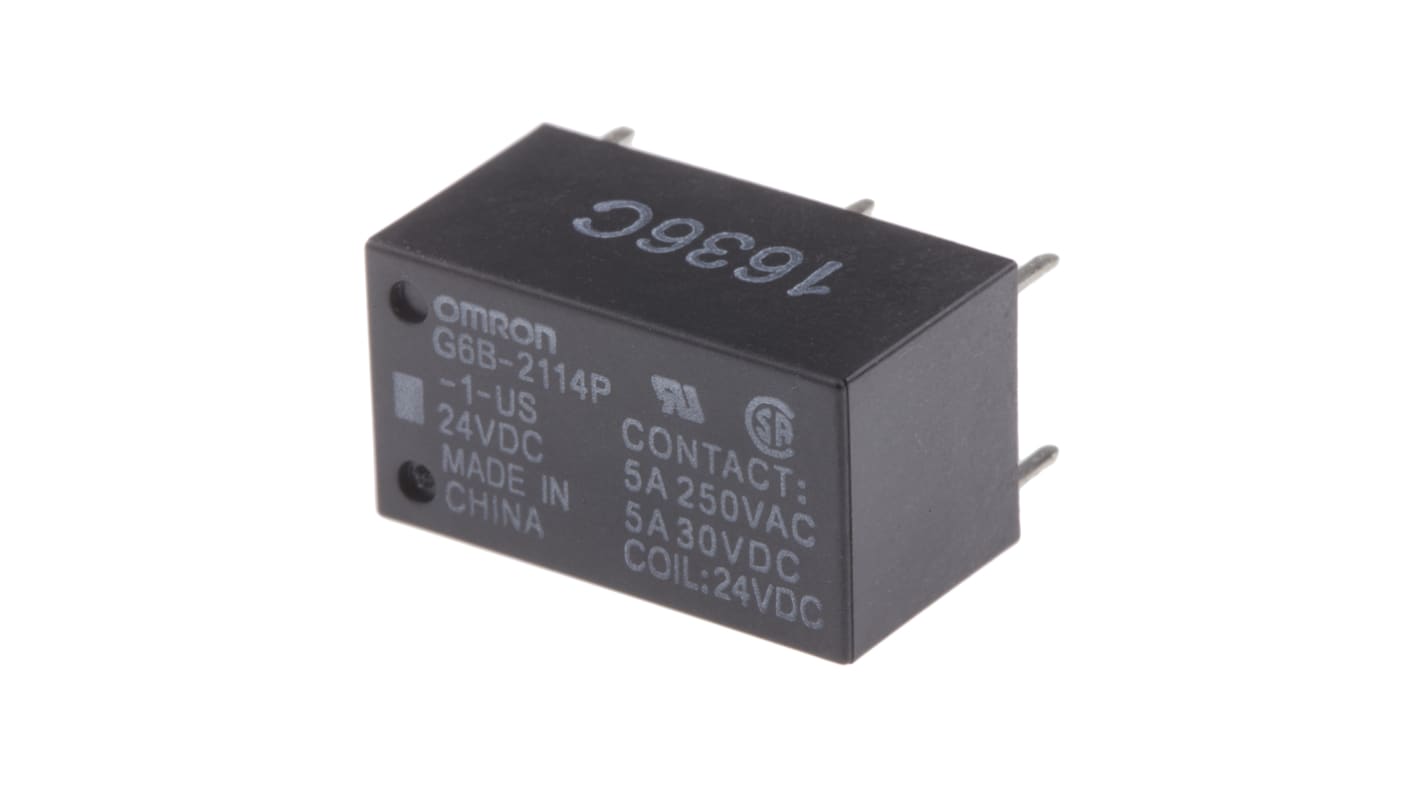

Omron PCB Mount Power Relay, 24V dc Coil, 5A Switching Current, SPST-NC, SPST-NO
- RS Stock No.:
- 789-7511
- Distrelec Article No.:
- 301-71-225
- Mfr. Part No.:
- G6B-2114P-1-US DC24
- Manufacturer:
- Omron
Bulk discount available
Subtotal (1 unit)*
€12.50
(exc. VAT)
€15.38
(inc. VAT)
In Stock
- 122 unit(s) ready to ship from another location
- Plus 25 unit(s) shipping from 21 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | €12.50 |
10 - 24 | €9.76 |
25 - 99 | €9.05 |
100 - 249 | €8.68 |
250 + | €7.92 |
*price indicative
- RS Stock No.:
- 789-7511
- Distrelec Article No.:
- 301-71-225
- Mfr. Part No.:
- G6B-2114P-1-US DC24
- Manufacturer:
- Omron
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Coil Voltage | 24V dc | |
Contact Configuration | SPST-NC, SPST-NO | |
Mounting Type | PCB Mount | |
Switching Current | 5A | |
Number of Poles | 1 | |
Latching | No | |
Series | G6B | |
Terminal Type | Through Hole | |
Maximum Switching Voltage AC | 380V ac | |
Maximum Switching Voltage DC | 125V dc | |
Length | 20mm | |
Coil Resistance | 2880Ω | |
Coil Power | 200mW | |
Height | 11mm | |
Isolation Coil To Contact | 3kV ac | |
Depth | 11mm | |
Minimum Operating Temperature | -25°C | |
Contact Material | Silver Alloy | |
Life | 100000 Operations | |
Maximum Operating Temperature | +70°C | |
Maximum Switching Power DC | 150 W | |
Maximum Switching Power AC | 1.25 kVA | |
Application | Power | |
Select all | ||
---|---|---|
Brand Omron | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST-NC, SPST-NO | ||
Mounting Type PCB Mount | ||
Switching Current 5A | ||
Number of Poles 1 | ||
Latching No | ||
Series G6B | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 380V ac | ||
Maximum Switching Voltage DC 125V dc | ||
Length 20mm | ||
Coil Resistance 2880Ω | ||
Coil Power 200mW | ||
Height 11mm | ||
Isolation Coil To Contact 3kV ac | ||
Depth 11mm | ||
Minimum Operating Temperature -25°C | ||
Contact Material Silver Alloy | ||
Life 100000 Operations | ||
Maximum Operating Temperature +70°C | ||
Maximum Switching Power DC 150 W | ||
Maximum Switching Power AC 1.25 kVA | ||
Application Power | ||
