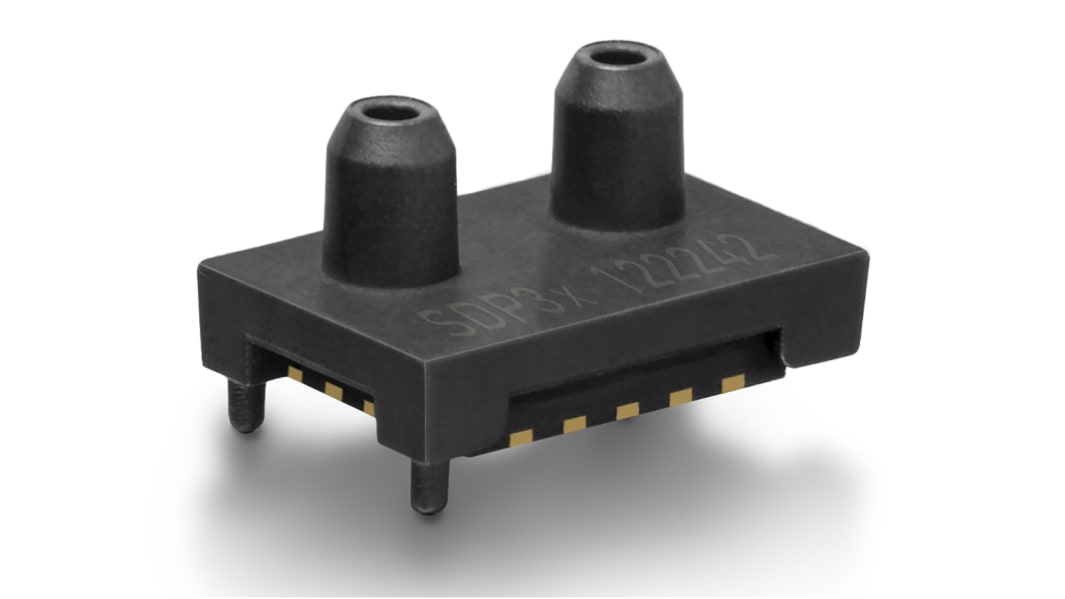

Sensirion Differential for Air, N2, O2 Pressure Sensor, 1500Pa Max Pressure Reading , 5.5 V, 2 mm Tube

  • RS Stock No. 174-9069
  • Mfr. Part No. SDP33-1500Pa-TR-250pcs
  • Manufacturer Sensirion
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

In many drone applications the airspeed is important information for reliable and controlled take off, landing and flight. The airspeed is most effectively measured with a pilot tube and a differential pressure sensor. Recently, PX4 integrated the SDP3x differential pressure sensor into an airspeed sensor development kit for VTOL and fixed wing UAV applications, which is fully integrated with the open source autopilot. The integration includes a full aerodynamic software compensation model for the sensor and pitot tube making it a plug and play solution.

Extended range to 1500Pa
Calibrated and temperature compensated
Excellent repeatability, no drift, no offset
Reflow solderable – Pick & Place
Extended feature set – smart averaging

Specifications
Attribute Value
Pressure Reading Type Differential
Minimum Pressure Reading -1500Pa
Maximum Pressure Reading 1500Pa
Accuracy 6 %
Output Type I2C
Media Measured Air, N2, O2
Process Connection 2 mm Tube
Response Time 3 ms
Maximum Current 5.5 mA
Supply Voltage 5.5 V
Interface I2C
Housing Material Epoxy-Based Resin, Glass, LCP
Minimum Operating Temperature -40°C
Series SDP33
Maximum Operating Temperature +85°C
Mounting Type PCB Mount
42 In stock for delivery within 2 working days
Unit of sale: Each
28.78
(exc. VAT)
35.40
(inc. VAT)
units
Per unit
1 - 4
€28.78
5 - 9
€27.45
10 - 24
€24.84
25 - 49
€22.88
50 +
€20.25
