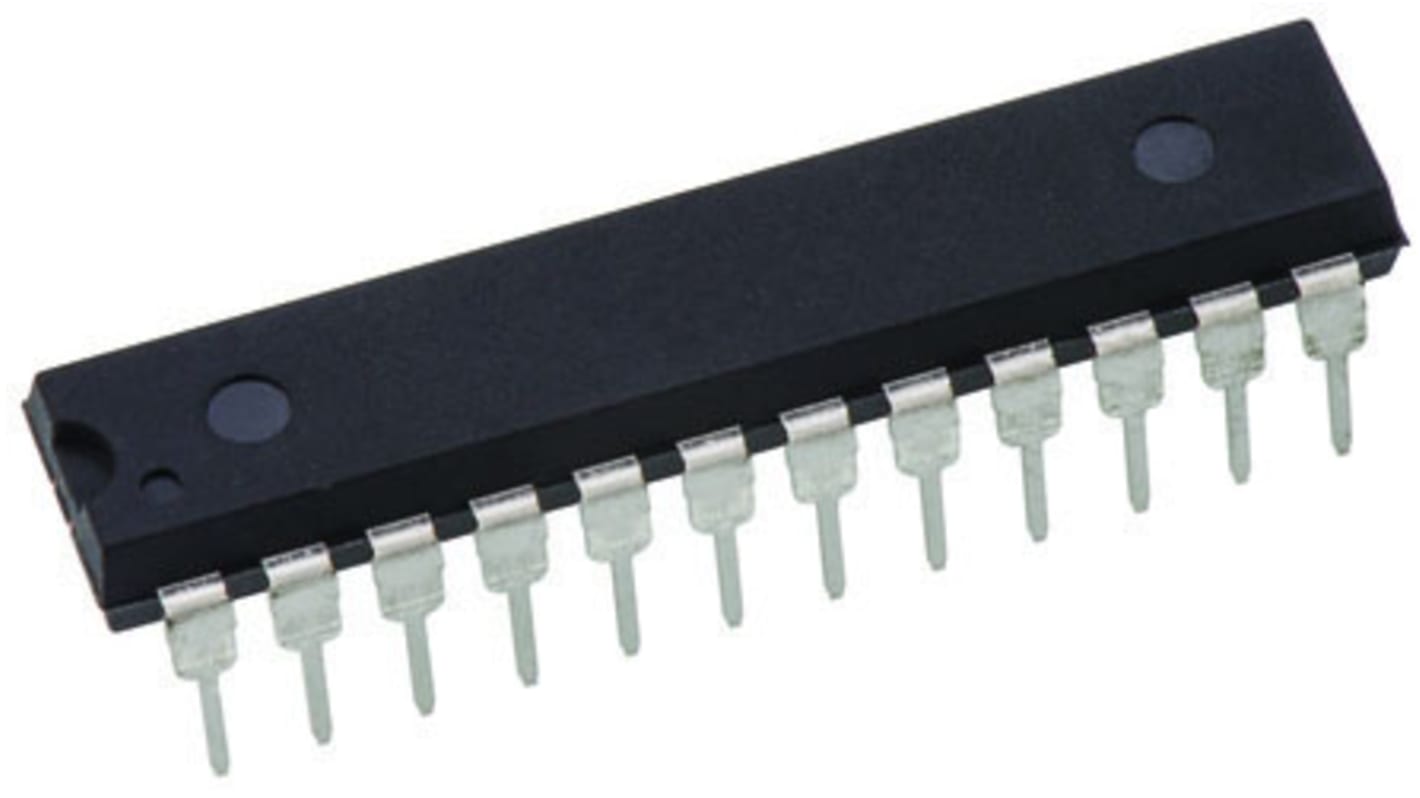

Texas Instruments TIBPAL20L8-25CNT, Programmeable Array Logic Circuit 50MHz 25ns 24-Pin PDIP
- RS Stock No.:
- 438-3810
- Mfr. Part No.:
- TIBPAL20L8-25CNT
- Manufacturer:
- Texas Instruments
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 438-3810
- Mfr. Part No.:
- TIBPAL20L8-25CNT
- Manufacturer:
- Texas Instruments
Specifications
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Maximum Propagation Delay Time | 25ns | |
| Maximum Internal Frequency | 50MHz | |
| Mounting Type | Through Hole | |
| Package Type | PDIP | |
| Pin Count | 24 | |
| Dimensions | 31.64 x 6.73 x 4.57mm | |
| Length | 31.64mm | |
| Width | 6.73mm | |
| Height | 4.57mm | |
| Maximum Operating Supply Voltage | 5.25 V | |
| Maximum Operating Temperature | +75 °C | |
| Minimum Operating Supply Voltage | 4.75 V | |
| Minimum Operating Temperature | 0 °C | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Maximum Propagation Delay Time 25ns | ||
Maximum Internal Frequency 50MHz | ||
Mounting Type Through Hole | ||
Package Type PDIP | ||
Pin Count 24 | ||
Dimensions 31.64 x 6.73 x 4.57mm | ||
Length 31.64mm | ||
Width 6.73mm | ||
Height 4.57mm | ||
Maximum Operating Supply Voltage 5.25 V | ||
Maximum Operating Temperature +75 °C | ||
Minimum Operating Supply Voltage 4.75 V | ||
Minimum Operating Temperature 0 °C | ||
Non Compliant
