Schneider Electric Residual Current Circuit Breaker with Overload Protection, 6 A Current Rating, 1-Pole, 30 mA Trip

View all RCBOs

Subtotal (1 unit)*

€154.51

(exc. VAT)

€190.05

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 27 unit(s) ready to ship from another location
  • Plus 8 unit(s) shipping from 13 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +€154.51

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
790-9193
Mfr. Part No.:
A9D31806
Manufacturer:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Product Type

Residual Current Circuit Breaker with Overload Protection

Current Rating

6 A

Number of Poles

1

Series

iC60H

Range

Acti9

Trip Sensitivity

30mA

Tripping Characteristics

Type B

Mount Type

DIN Rail

Rated AC Voltage

240 V ac

Terminal Type

Screw Clamp

Earth Leakage Protection Type

Type A

Depth

77.5mm

Height

110mm

Width

18 mm

Better World Product

Yes

Tripping Mechanism

Thermal Magnetic

Application

Distribution

Breaking Capacity

10000A

Standards/Approvals

RoHS

Reset Actuator Type

Toggle Switch

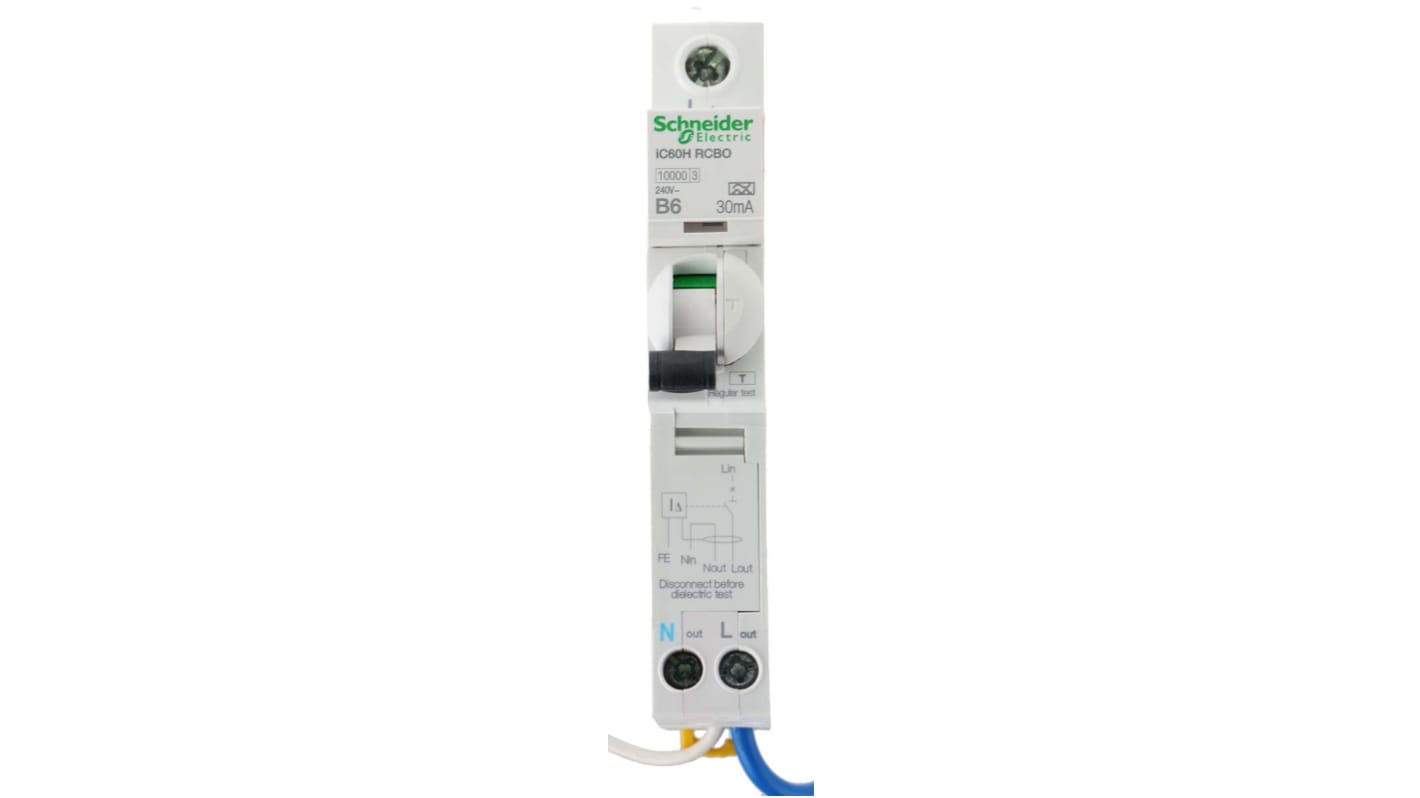

Schneider Electric RCBO, 6A Current Rating, 30mA Trip Sensitivity - Acti 9 Series - A9D31806


Fit this Schneider Electric RCBO to your distribution board to ensure excessive loads don't trip you up. By combining both overcurrent and residual current protection in one compact device, it efficiently safeguards against short circuits, overloads and electric shocks. It's capable of detecting leakage currents as low as 30mA, making it a sensitive safety device. Thanks to the RCBO's modular design, it's a doddle to add extra functions, such as an auxiliary fault indicator for remote monitoring or a voltage release (791-2799) to guard against power drops.

Features & Benefits


• Mechanical lifespan of 20,000 cycles means it's durable

• Mercury-free design makes it safe to use and possible to recycle

• Wide operating temperature range between -15°C and +60°C, to handle harsh conditions

• Thermal-magnetic mechanism trips as soon as a fault is detected for reliable electrical safeguarding

Applications


• Residential buildings

• Care homes

• Offices

Is this RCBO easy to use?


Yes, it's a user-friendly option with a trip window that shows red when a faulty circuit's detected. A green position indicator means you always know when the circuit is safe to work on.
