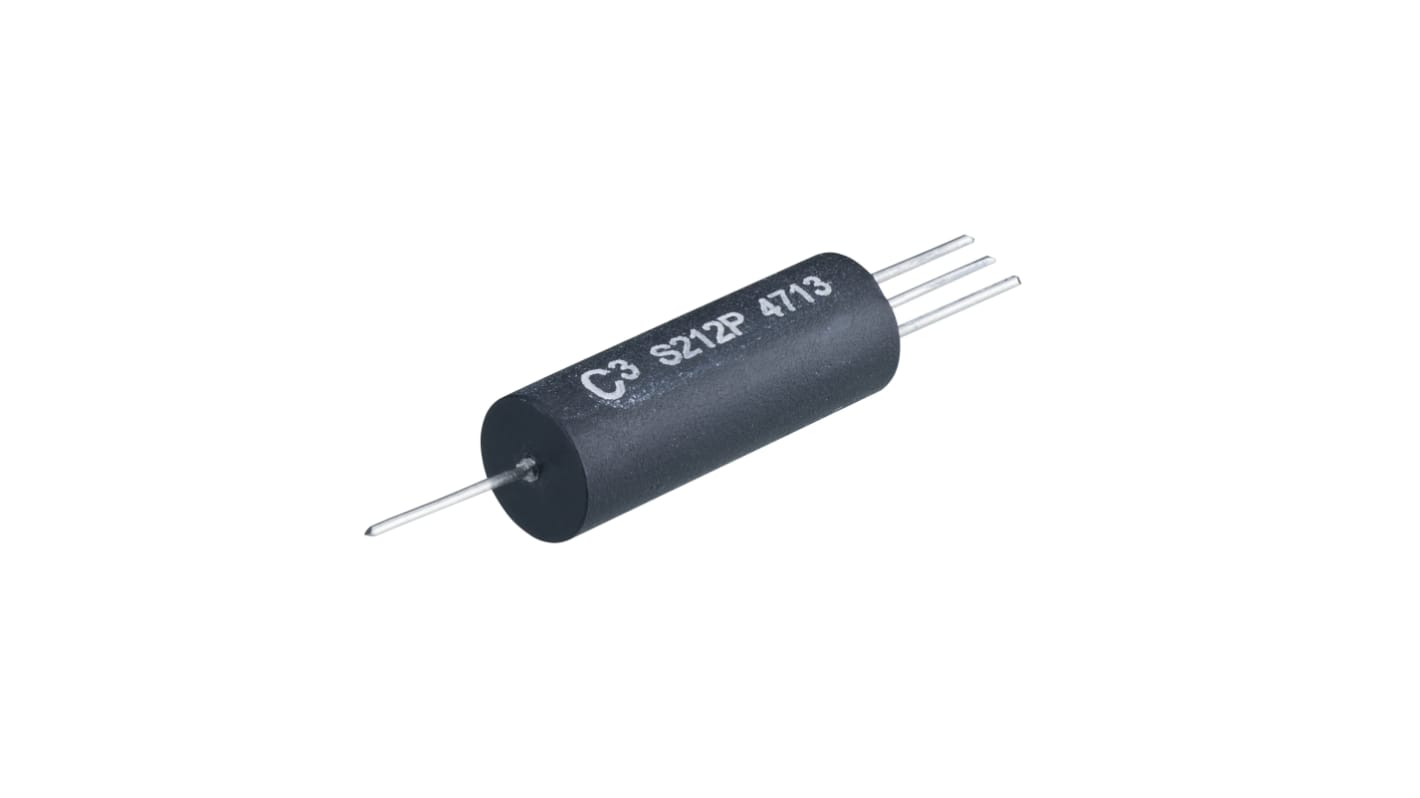

Sensata Cynergy3 PCB Mount Reed Relay, 12V dc Coil, SPST, 350V dc Max, 1 A Max, 1000Ω
- RS Stock No.:
- 817-2285
- Mfr. Part No.:
- S2-12E
- Manufacturer:
- Sensata / Cynergy3
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 817-2285
- Mfr. Part No.:
- S2-12E
- Manufacturer:
- Sensata / Cynergy3
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Sensata / Cynergy3 | |
Contact Configuration | SPST | |
Coil Voltage | 12V dc | |
Mounting Type | PCB Mount | |
Maximum Switching Current DC | 1 A | |
Maximum Switching Voltage AC | 300V | |
Maximum Switching Voltage DC | 350V dc | |
Coil Resistance | 1000Ω | |
Length | 22.86mm | |
Depth | 7.62 (Dia.)mm | |
Dimensions | 7.62 (Dia.) x 22.86in | |
Isolation Coil To Contact | 1kV | |
Operating Time Including Bounce | 1ms | |
Maximum Operating Temperature | +85°C | |
Operating Temperature Range | -40 → +85°C | |
Contact Resistance | 80 mΩ | |
Contact Material | Rhodium | |
Maximum Switching Power AC | 100VA | |
Minimum Operating Temperature | -40°C | |
Life | 10000000 (50 W) operations, 1000000000 (Dry) operations | |
Terminal Type | PCB Pin | |
Select all | ||
---|---|---|
Brand Sensata / Cynergy3 | ||
Contact Configuration SPST | ||
Coil Voltage 12V dc | ||
Mounting Type PCB Mount | ||
Maximum Switching Current DC 1 A | ||
Maximum Switching Voltage AC 300V | ||
Maximum Switching Voltage DC 350V dc | ||
Coil Resistance 1000Ω | ||
Length 22.86mm | ||
Depth 7.62 (Dia.)mm | ||
Dimensions 7.62 (Dia.) x 22.86in | ||
Isolation Coil To Contact 1kV | ||
Operating Time Including Bounce 1ms | ||
Maximum Operating Temperature +85°C | ||
Operating Temperature Range -40 → +85°C | ||
Contact Resistance 80 mΩ | ||
Contact Material Rhodium | ||
Maximum Switching Power AC 100VA | ||
Minimum Operating Temperature -40°C | ||
Life 10000000 (50 W) operations, 1000000000 (Dry) operations | ||
Terminal Type PCB Pin | ||
