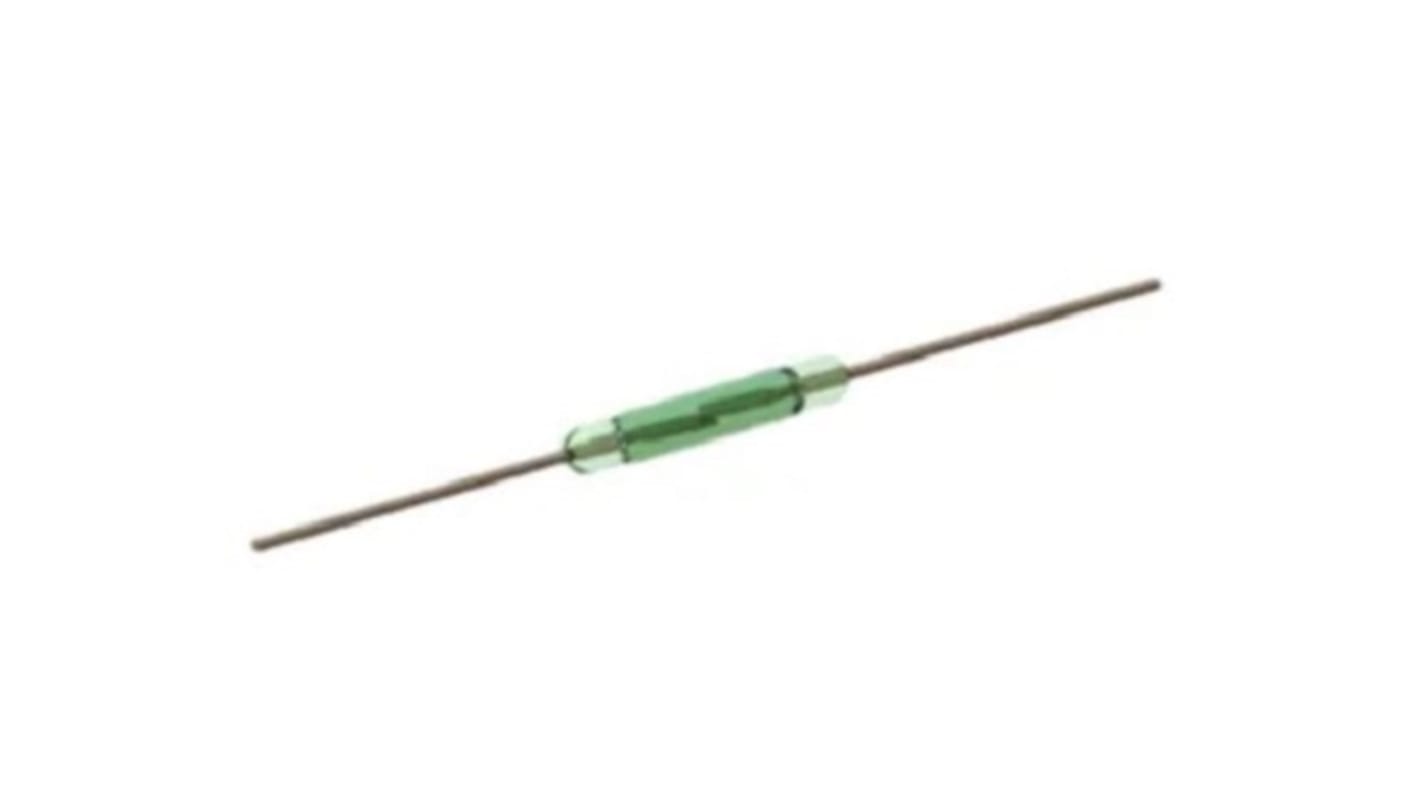

RS PRO SPDT Through Hole Reed Switch, 0.5A 175V dc
- RS Stock No.:
- 265-2256
- Manufacturer:
- RS PRO
Subtotal (1 unit)*
€8.29
(exc. VAT)
€10.20
(inc. VAT)
In Stock
- 468 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | €8.29 |
*price indicative
- RS Stock No.:
- 265-2256
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Contact Configuration | SPDT | |
| Maximum Switching Current | 0.5A | |
| Maximum Switching Power | 10W | |
| Maximum Switching Voltage | 175V dc | |
| Contact Resistance | 250mΩ | |
| Contact Material | Rhodium | |
| Maximum Release Time | 1.5ms | |
| Operating Time Including Bounce | 0.7ms | |
| AT Value Range | 20 → 30AT | |
| Mounting Type | Through Hole | |
| Length | 56.1mm | |
| Dimensions | 55.1 x 2.5mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Contact Configuration SPDT | ||
Maximum Switching Current 0.5A | ||
Maximum Switching Power 10W | ||
Maximum Switching Voltage 175V dc | ||
Contact Resistance 250mΩ | ||
Contact Material Rhodium | ||
Maximum Release Time 1.5ms | ||
Operating Time Including Bounce 0.7ms | ||
AT Value Range 20 → 30AT | ||
Mounting Type Through Hole | ||
Length 56.1mm | ||
Dimensions 55.1 x 2.5mm | ||
