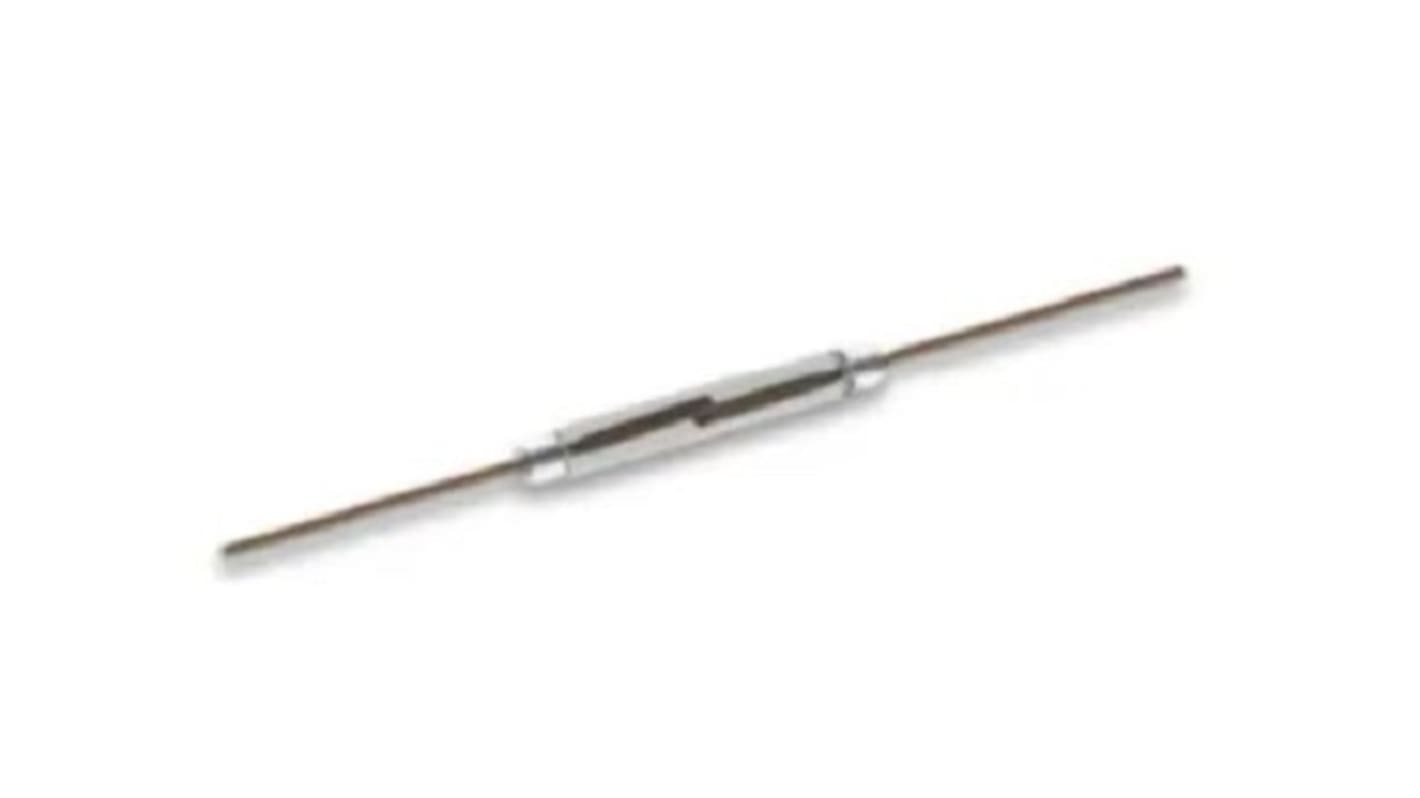

RS PRO SPST Through Hole Reed Switch, 1.5A 30V dc
- RS Stock No.:
- 265-2275
- Manufacturer:
- RS PRO
Subtotal (1 pack of 5 units)*
€16.48
(exc. VAT)
€20.27
(inc. VAT)
In Stock
- 61 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | €16.48 | €3.296 |
*price indicative
- RS Stock No.:
- 265-2275
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Contact Configuration | SPST | |
| Maximum Switching Current | 1.5A | |
| Maximum Switching Power | 70W | |
| Maximum Switching Voltage | 30V dc | |
| Contact Resistance | 200mΩ | |
| Maximum Release Time | 0.1ms | |
| Operating Time Including Bounce | 0.2ms | |
| AT Value Range | 15 → 20AT | |
| Mounting Type | Through Hole | |
| Length | 7.7mm | |
| Depth | 1.6mm | |
| Dimensions | 7.7 x 2.2 x 1.6mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Contact Configuration SPST | ||
Maximum Switching Current 1.5A | ||
Maximum Switching Power 70W | ||
Maximum Switching Voltage 30V dc | ||
Contact Resistance 200mΩ | ||
Maximum Release Time 0.1ms | ||
Operating Time Including Bounce 0.2ms | ||
AT Value Range 15 → 20AT | ||
Mounting Type Through Hole | ||
Length 7.7mm | ||
Depth 1.6mm | ||
Dimensions 7.7 x 2.2 x 1.6mm | ||
