VCNT2020 Vishay, SMT Reflective Sensor, Phototransistor Output

  • RS Stock No. 161-2050
  • Mfr. Part No. VCNT2020
  • Manufacturer Vishay
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MY
Product Details

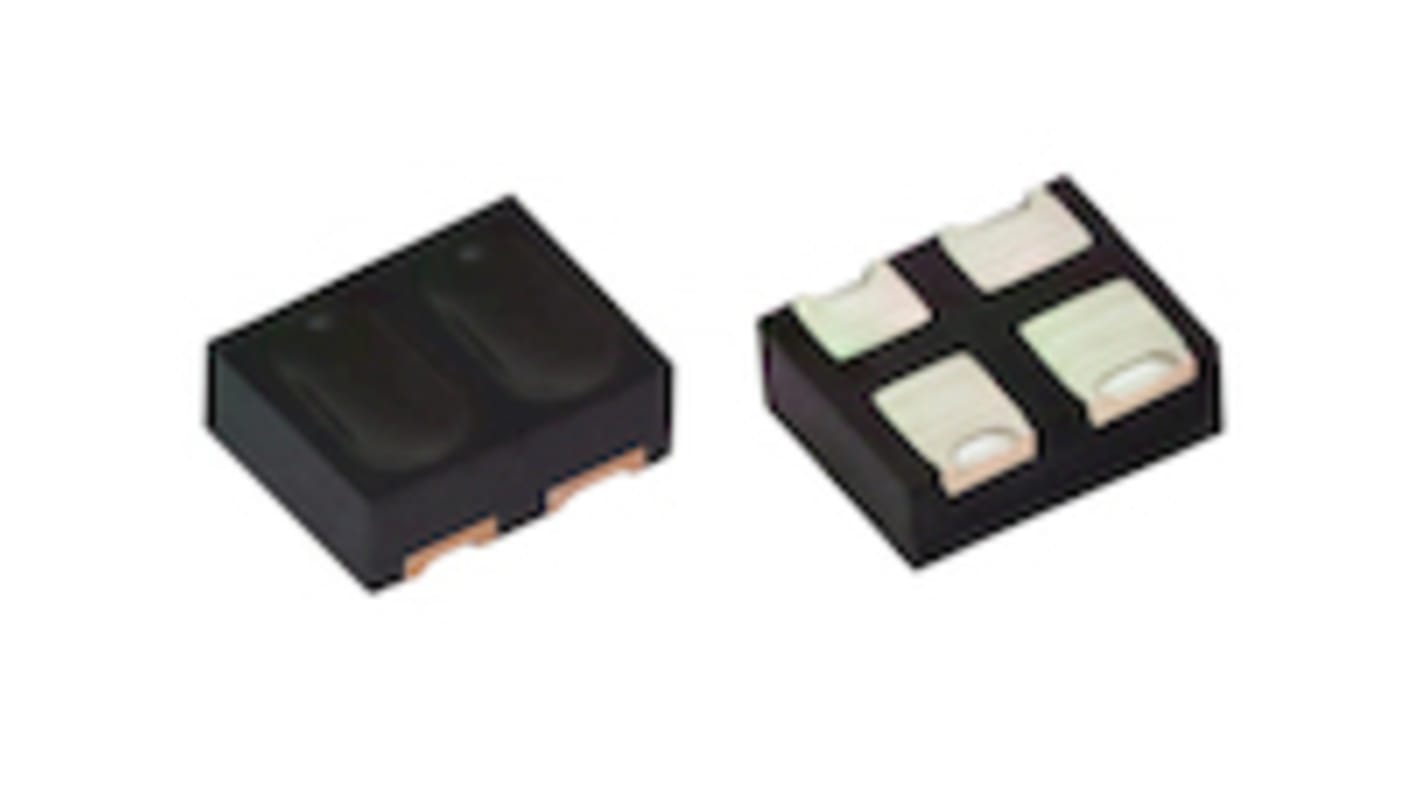

The VCNT2020 is a reflective sensor in a miniature SMD package. It has a compact construction where the emitting light source and the detector are arranged in the same plane. The operating infrared wavelength is 940 nm. The detector consists of a silicon phototransistor. The sensor analog output signal (photo current) is triggered by detection of reflected infrared light from a close by object. The sensor has a built in daylight blocking filter, which greatly suppresses disturbing ambient light and therefore increases signal to noise ratio.

Package type: SMD
Detector type: phototransistor
Dimensions (L x W x H in mm): 2.5 x 2 x 0.8
Operating range within > 20 % relative collector current: 0.2 mm to 2.5 mm
Emitter wavelength: 940 nm
Moisture sensitivity level (MSL): 4
Position sensor
Optical switch
Optical encoder (e.g. disc and tape drives for DVD and/or camera applications)
Object detection (e.g. paper presence in printer and copy machines)

Attribute Value
Peak Sensor Distance 2.5mm
Output Device Phototransistor
Typical Rise Time 10µs
Typical Fall Time 15µs
Number of Pins 4
Mounting Type Surface Mount
Package Type SMD
Dimensions 2.5 x 2 x 0.8mm
Height 0.8mm
Length 2.5mm
Maximum Operating Temperature 85°C
Minimum Operating Temperature -25°C
Width 2mm
Output Signal Type Analogue
Operating Temperature Range -25 → +85°C
Temporarily out of stock - back order for despatch 17-04-2020, delivery within 2 working days
Unit of sale: Each (On a Reel of 3000)
(exc. VAT)
(inc. VAT)
Per unit
Per Reel*
3000 +
*price indicative
