Finder 93 5 Pin 12V dc DIN Rail Relay Socket, for use with 34.51 Series Relay
- RS Stock No.:
- 666-8104
- Mfr. Part No.:
- 93.51.7.024
- Manufacturer:
- Finder
5 Within 1 working day(s) (IE stock)
277 Within 2 working day(s) (EU stock)
Added
Price Each
€14.03
(exc. VAT)
€17.26
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €14.03 |
| 5 - 9 | €13.44 |
| 10 + | €12.88 |
- RS Stock No.:
- 666-8104
- Mfr. Part No.:
- 93.51.7.024
- Manufacturer:
- Finder
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

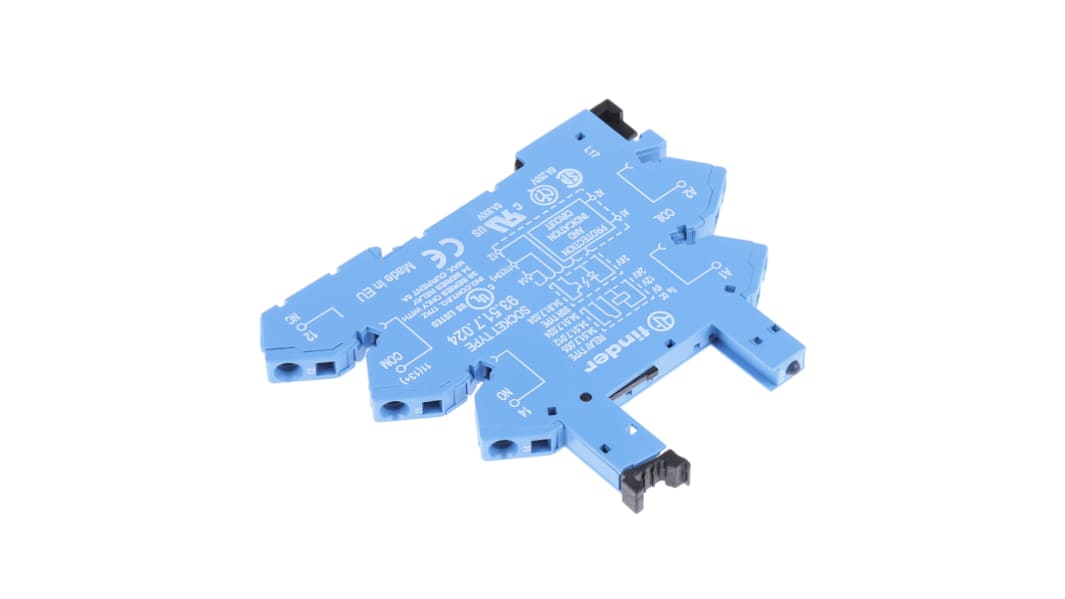

Finder Relay Socket
The Finder 5-pin DIN rail mount socket has spring clamp leads. It has a current rating of 6A and voltage rating of 250VAC. The socketed relay is retained and ejected using a simple plastic clip. This relay socket is used with 34.51 relay series.
Features and Benefits
Dielectric contacts is 6kV
Insulation resistance is 1000MΩ
Operating temperature ranges between -40 and 70°C
Screwless terminal socket
SPDT contact configuration
Insulation resistance is 1000MΩ
Operating temperature ranges between -40 and 70°C
Screwless terminal socket
SPDT contact configuration
Applications
Coil relays
Protection circuit
Protection circuit
Certifications
CSA certified
UL approved
VDE approved
IP20 rated
UL approved
VDE approved
IP20 rated
Specifications
Attribute | Value |
|---|---|
| Voltage | 12V dc |
| For Use With | 34.51 Series Relay |
| Series | 93 |
| Mounting Type | DIN Rail |
| Current Rating | 6A |
| Number of Contacts | 5 |
