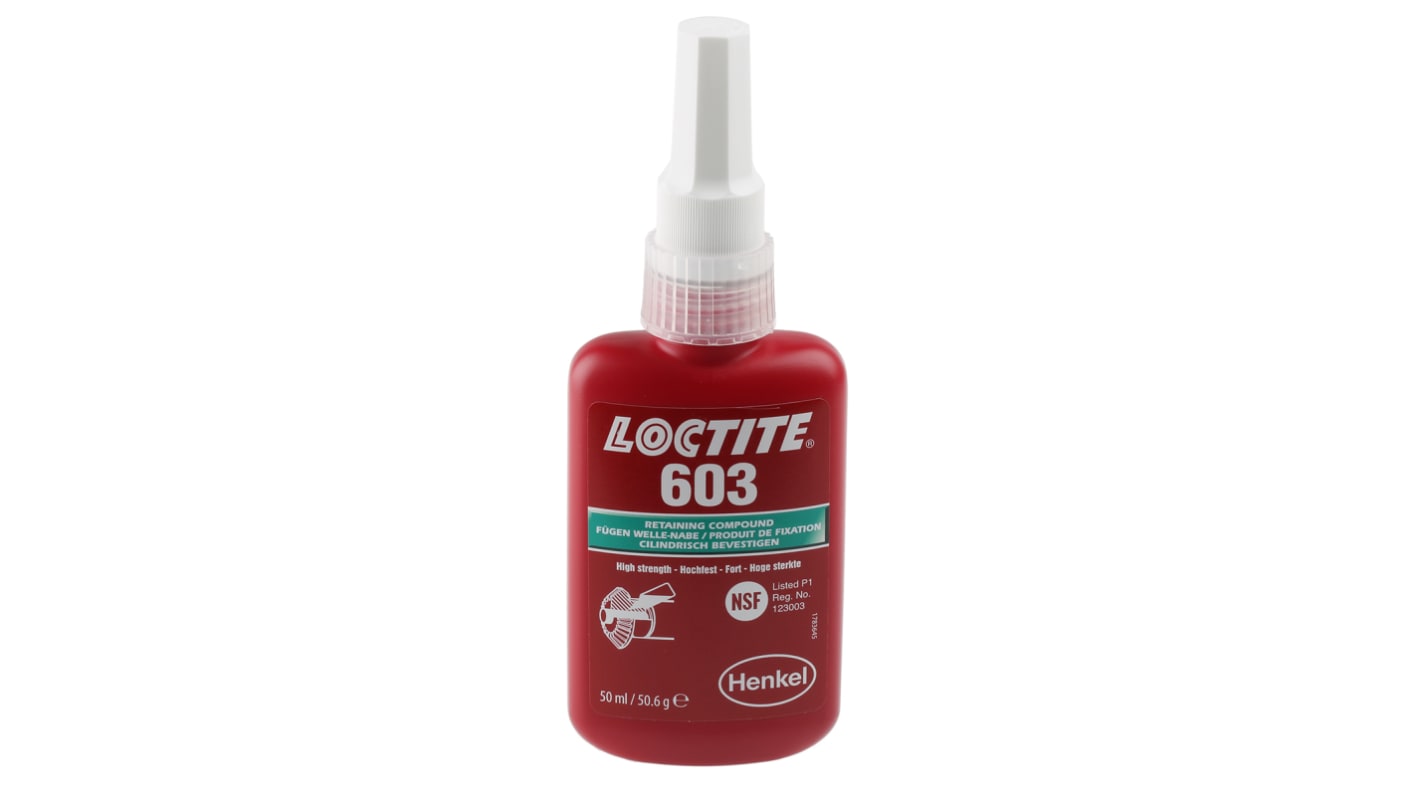

Loctıte Green High Strength, Retaining Compound Urethane Methacrylate Liquid Bottle 50 ml, -55 → +150 °C

  • RS Stock No. 330-3964
  • Mfr. Part No. 135280
  • Manufacturer Loctite
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IE
Product Details

Loctite® 603 High Strengh Retainer

Single component anaerobic sealant
Oil tolerant
Fast cure
Used to retain roller bearings, oil impregnated bushes etc.

Note

Testing should be carried out before contact with styrene, acrylic and polycarbonate based plastics to ensure compatibility

Loctite Retaining Compound Liquid

The Loctite green high strength, 50ml retaining compound liquid is designed to bond cylindrical fitting parts, particularly where consistently clean surfaces cannot be assured. This product cures when confined in the absence of air between close-fitting metal surfaces and prevents loosening and leakage from shock and vibration. The liquid is composed of urethane methacrylate and provides robust curing performance.
Note:
Testing should be carried out before contact with styrene, acrylic and polycarbonate-based plastics to ensure compatibility

Features and Benefits

• Cure time is 10 hours
• Fast cure
• Fills gaps of up to 0.15mm diametrical clearance
• Fluorescent
• Low viscosity
• Oil tolerant
• Operating temperature ranges between -55°C and 150°C
• Single component anaerobic sealant •High-strength retaining compound
•Especially suitable for sintered bearings

Applications

• Bonding
• Retaining
• Suitable for sintered bearings
• Retaining oil-impregnated bushings into housings

Certifications

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007

Threadlocking and Retainers

Specifications
Attribute Value
Trade Name Loctite 603
Application Bonding, Retaining
Anaerobic Yes
Colour Green
Chemical Ingredients Urethane Methacrylate
Product Form Liquid
Package Type Bottle
Package Size 50 ml
Cure Time 10 h
Strength High
Maximum Operating Temperature +150°C
Minimum Operating Temperature -55°C
Chemical Composition Urethane Methacrylate
Operating Temperature Range -55 → +150 °C
3 Within 1 working day(s) (IE stock)
90 Within 2 working day(s) (EU stock)
Unit of sale: Each
56.19
(exc. VAT)
69.11
(inc. VAT)
units
Per unit
1 - 5
€56.19
6 - 14
€53.95
15 +
€52.81
