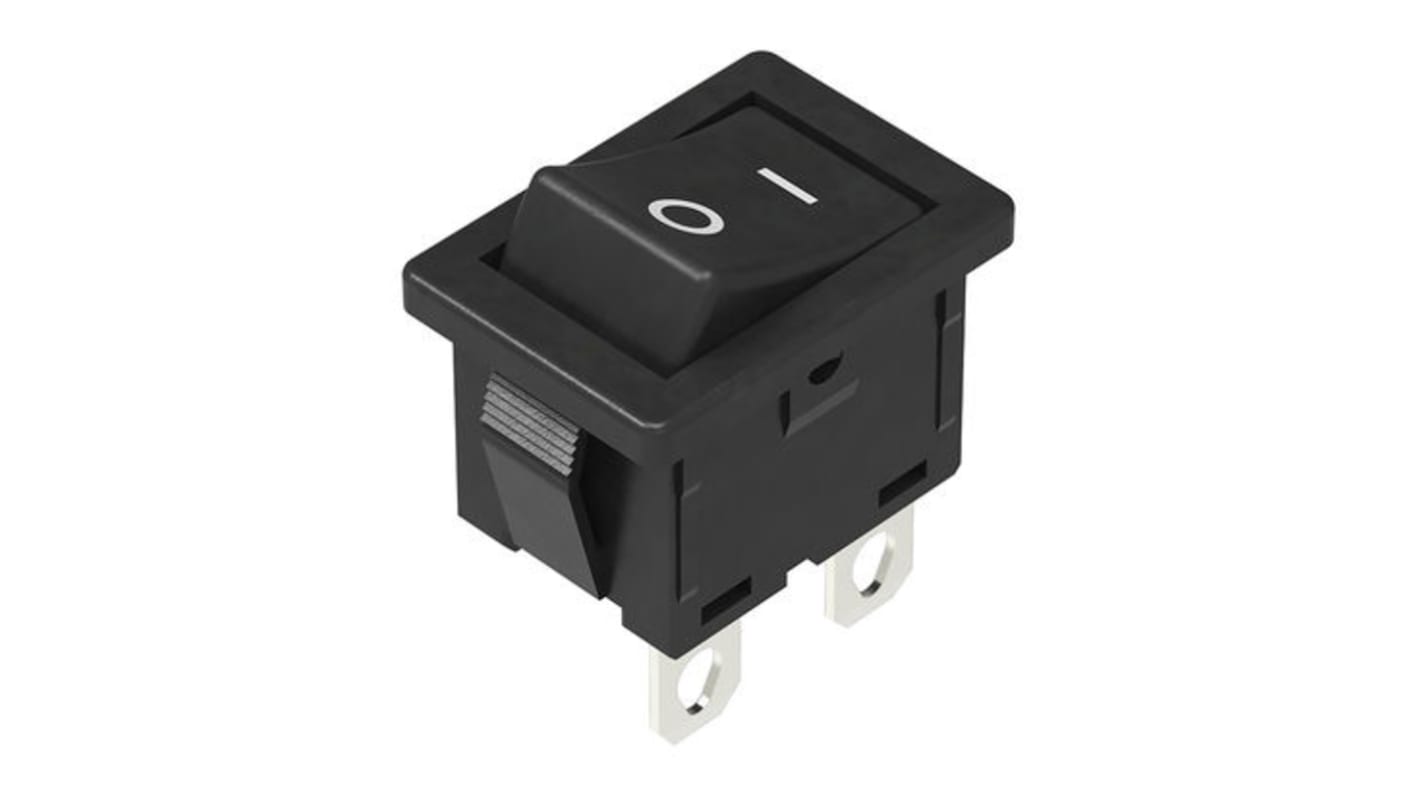

Alps Alpine SPST, Latching Rocker Switch Panel Mount
- RS Stock No.:
- 123-9580
- Mfr. Part No.:
- SDDJE10700
- Manufacturer:
- Alps Alpine
8 In stock for delivery within 5 working days
Added
Price Each
€3.41
(exc. VAT)
€4.19
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €3.41 |
| 5 - 19 | €3.26 |
| 20 - 49 | €3.08 |
| 50 - 99 | €2.95 |
| 100 + | €2.86 |
- RS Stock No.:
- 123-9580
- Mfr. Part No.:
- SDDJE10700
- Manufacturer:
- Alps Alpine
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Alps Power Rocker Switch
The Power Rocker Switch is 100A inrush current compatible, compact and large capacity snap-in type with easy mounting.
Alps Rocker Switches
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Switch Operation | Latching |
| Panel Cut Out Width | 12.9mm |
| Panel Cut Out Height | 19.4mm |
| Contact Current Rating | 10 A |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| IP Rating | IP00 |
| Terminal Type | Wire Lead |
| Legend Text | I, O |
| Actuator Shape | Rectangular |
| Panel Cut Out Size | 19.4 x 12.9mm |
| AC Voltage Rating | 250V |
| Operating Temperature Range | -10 → +55°C |
| Legend Text Colour | White |
| Mechanical Life | 10000Cycles |
| Maximum Operating Temperature | +55°C |
| Minimum Operating Temperature | -10°C |
| Contact Resistance | 100mΩ |
