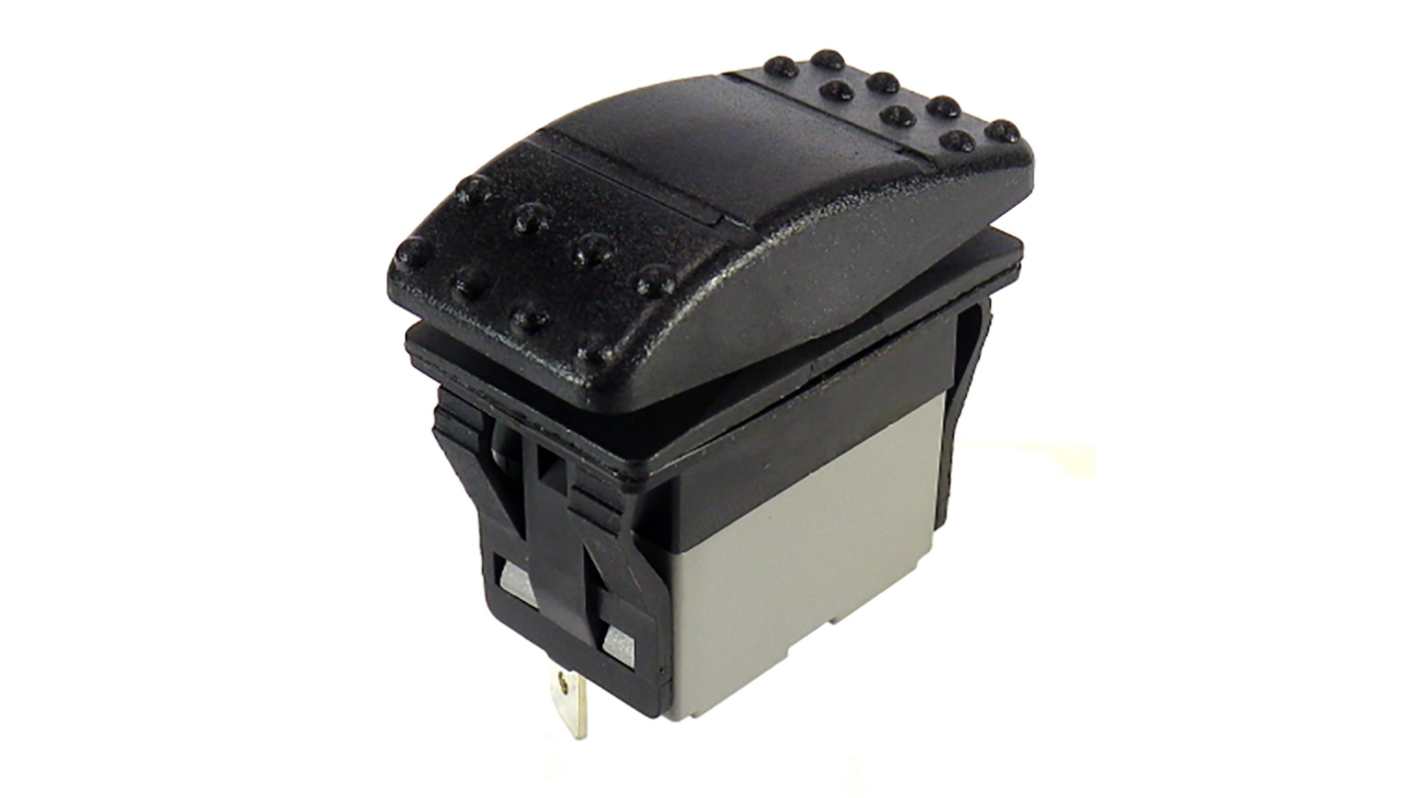

RS PRO DPDT, Latching Rocker Switch Panel Mount

Name: RS PRO DPDT, Latching Rocker Switch Panel Mount
Brand: RS PRO
SKU: 174-8298
Price: 16.17 EUR
Availability: BackOrder

Bulk discount available

Subtotal (1 box of 500 units)*

€6,572.00

(exc. VAT)

€8,083.50

(inc. VAT)

Temporarily out of stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

*price indicative

Compare

Alternative

This product is not currently available. Here is our alternative recommendation.

Each

€18.77

(exc. VAT)

€23.09

(inc. VAT)

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Contact Configuration	DPDT
	Switch Operation	Latching
	Panel Cut Out Width	37mm
	Panel Cut Out Height	21.1mm
	Contact Current Rating	16 A @ 125 → 250 V ac, 16 A @ 30 V dc, 20 A @ 125 → 250 V ac
	Illuminated	No
	Actuator Colour	Black
	Mounting Type	Panel Mount
	IP Rating	IP67
	Terminal Type	Quick Connect
	Legend Text	On
	Panel Cut Out Size	21.1 x 37mm
	DC Voltage Rating	30V
	Actuator Shape	Rectangular
	AC Voltage Rating	125 → 250V
	Minimum Operating Temperature	-20°C
	Operating Temperature Range	-20 → +85°C
	Maximum Operating Temperature	+85°C
	Case Material	Polyamide
	Contact Material	Copper
	Contact Resistance	20mΩ

	Select all
	Brand RS PRO
	Contact Configuration DPDT
	Switch Operation Latching
	Panel Cut Out Width 37mm
	Panel Cut Out Height 21.1mm
	Contact Current Rating 16 A @ 125 → 250 V ac, 16 A @ 30 V dc, 20 A @ 125 → 250 V ac
	Illuminated No
	Actuator Colour Black
	Mounting Type Panel Mount
	IP Rating IP67
	Terminal Type Quick Connect
	Legend Text On
	Panel Cut Out Size 21.1 x 37mm
	DC Voltage Rating 30V
	Actuator Shape Rectangular
	AC Voltage Rating 125 → 250V
	Minimum Operating Temperature -20°C
	Operating Temperature Range -20 → +85°C
	Maximum Operating Temperature +85°C
	Case Material Polyamide
	Contact Material Copper
	Contact Resistance 20mΩ
