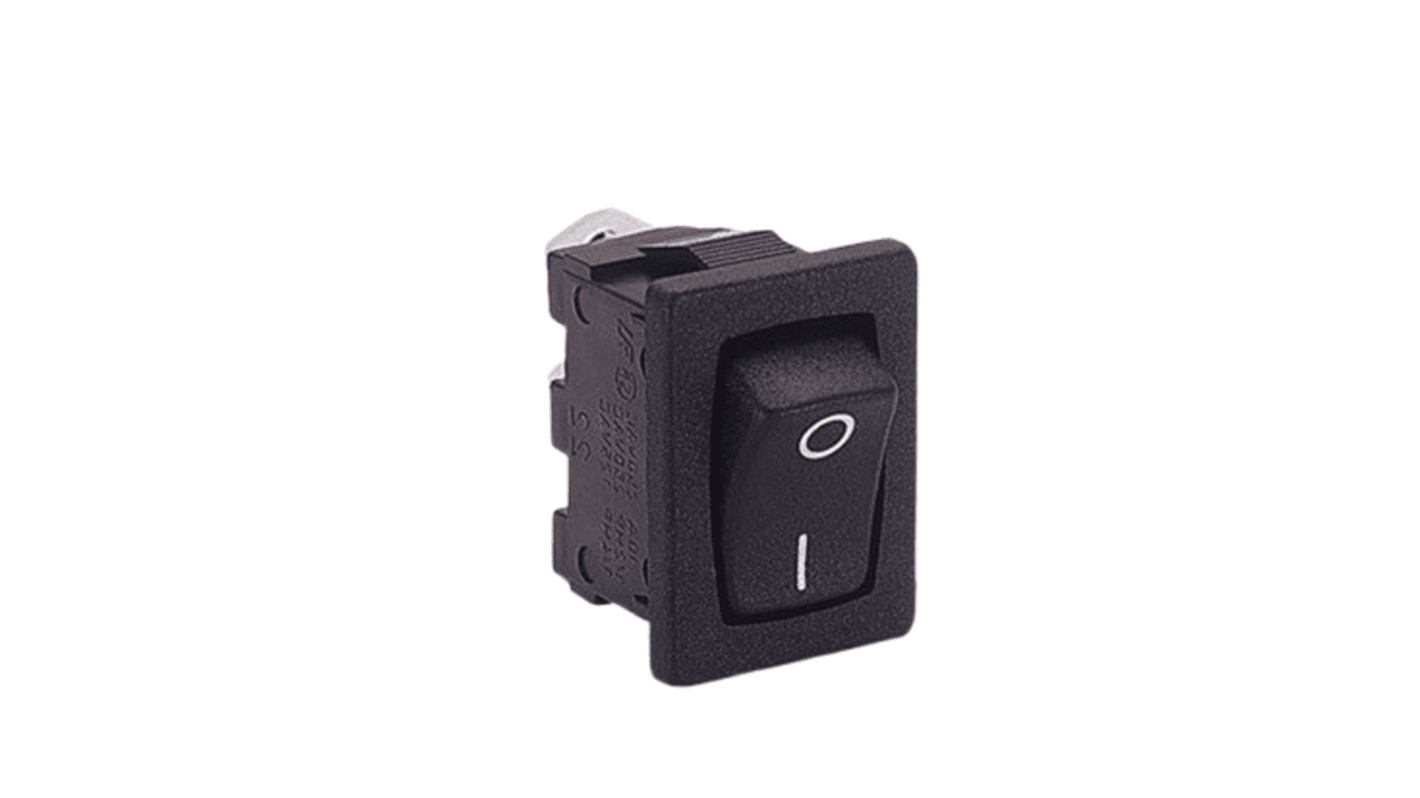

Arcolectric (Bulgin) Ltd DPDT, On-Off-On Rocker Switch Panel Mount

RS Stock No.:: 259-6610
Distrelec Article No.:: 303-90-562
Mfr. Part No.:: H8670VBAAA
Manufacturer:: Arcolectric (Bulgin) Ltd

Arcolectric (Bulgin) Ltd DPDT, On-Off-On Rocker Switch Panel Mount

Bulk discount available

Subtotal (1 unit)**

€14.48

(exc. VAT)

€17.81

(inc. VAT)

14 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Real time stock check

Units	Per unit
1 - 24	€14.48
25 - 49	€12.80
50 - 99	€12.30
100 - 249	€11.27
250 +	€9.35

**price indicative

RS Stock No.:: 259-6610
Distrelec Article No.:: 303-90-562
Mfr. Part No.:: H8670VBAAA
Manufacturer:: Arcolectric (Bulgin) Ltd

Curved Rocker Switches

The single throw types have 3mm contact separation
Electrical life: >10⁴ operations at full load
Maximum operating temperature: +90°C
Connection is by 4.8x0.8mm blade terminals
Dimensions: H21, W15 (SP), W24 (DP), depth behind panel 12.5 (19.9 with terminals), max. panel thickness 3 mm

Note

Stk no 318-064 features red illumination, stk no. 318-070 features green illumination.

Approvals

ENEC, UL, CSA

Bulgin 8670 Series Rocker Switch, 22mm Panel Cut Out Width, 6A Contact Current Rating - H8670VBAAA

This rocker switch is a versatile DPDT (double pole, double throw) device designed for panel mount applications. It features an easy-to-use On-Off-On operation, providing flexibility in circuit control. The switch has a panel cut-out size of 19.4 x 22mm, suitable for a variety of electronic setups. With a contact current rating of 6A, it is effective for managing moderate electrical loads.

Features & Benefits

• Quick connect terminals simplify installation and wiring
• Black actuator offers a professional and sleek appearance
• No illumination ensures a clean, minimalist design
• Rated for 250V AC, suitable for diverse electrical applications
• Maximum operating temperature of +90°C for high performance
• Clear legends indicate operational states for user convenience

Applications

• Ideal for use in industrial control panels
• Suitable for automation equipment requiring a reliable toggle interface
• Used with lighting systems where discrete power control is needed
• Effective in electronic devices requiring small footprint switches
• Compatible with various mechanical setups demanding manual switch operation

What is the maximum current rating for this switch?

The switch is rated for a maximum contact current of 6A, making it suitable for various medium-load applications.

How does the black actuator contribute to its usability?

The black actuator provides a clear and professional aesthetic while ensuring visibility in various environments without distraction.

Can this switch be used in outdoor applications?

While the switch is designed for panel mounting, its lack of illumination and IP rating means it is best suited for indoor environments or sheltered applications.

What type of connection does this switch use for wiring?

It utilises quick connect terminals, allowing for fast and secure wiring without the need for soldering, enhancing installation efficiency.

What is the significance of the On-Off-On operation?

The On-Off-On configuration allows users to switch between two separate circuits or drive two different functions, resulting in versatile control options in any application.

Approvals

ENEC, UL recognised component, CSA certified

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Arcolectric (Bulgin) Ltd
	Contact Configuration	DPDT
	Switch Operation	On-Off-On
	Panel Cut Out Width	22mm
	Panel Cut Out Height	19.4mm
	Contact Current Rating	6 A
	Illuminated	No
	Actuator Colour	Black
	Series	8670
	Mounting Type	Panel Mount
	Terminal Type	Quick Connect
	Legend Text	On (symbol); Off (symbol); On (symbol)
	AC Voltage Rating	250V
	Actuator Shape	Rectangular
	Panel Cut Out Size	19.4 x 22mm
	Maximum Operating Temperature	+90°C
	Legend Text Colour	White (Symbol)

	Select all
	Brand Arcolectric (Bulgin) Ltd
	Contact Configuration DPDT
	Switch Operation On-Off-On
	Panel Cut Out Width 22mm
	Panel Cut Out Height 19.4mm
	Contact Current Rating 6 A
	Illuminated No
	Actuator Colour Black
	Series 8670
	Mounting Type Panel Mount
	Terminal Type Quick Connect
	Legend Text On (symbol); Off (symbol); On (symbol)
	AC Voltage Rating 250V
	Actuator Shape Rectangular
	Panel Cut Out Size 19.4 x 22mm
	Maximum Operating Temperature +90°C
	Legend Text Colour White (Symbol)
