Murata Power Solutions Digital Shunt, 50 A, 50mV Output, ±0.25 % Accuracy

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CA
Product Details

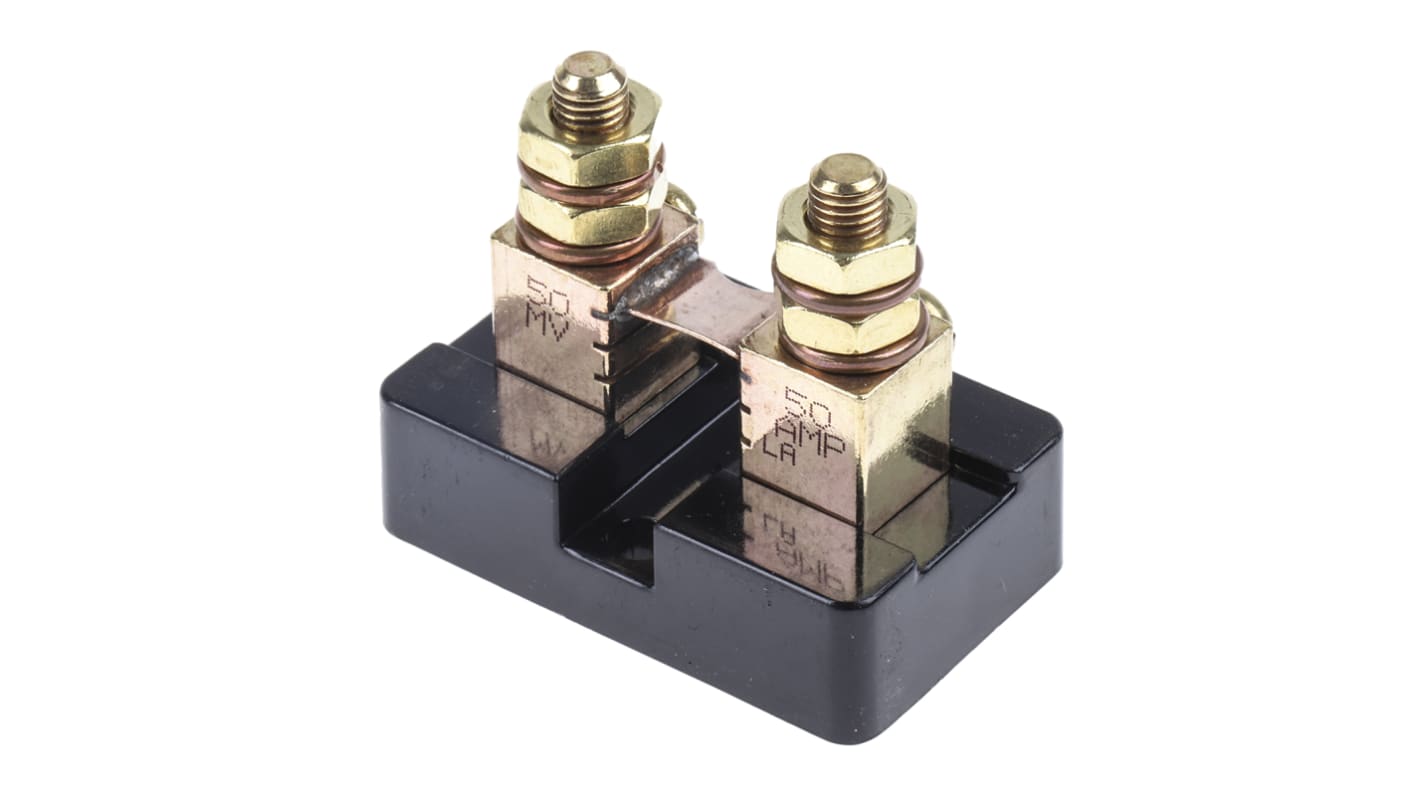

Murata Power Solutions DC Shunt

The Murata Power Solutions DC shunt has an output voltage rating of 50mV at 50A. This precision shunt connects directly to the MPS DCA5-20PC series of DC ammeters. Its installation is straightforward simply connect the load circuit to the shunt’s threaded studs and the shunt’s mV Kelvin-outputs to the digital ammeter’s input terminals. It features a rugged phenolic base that provides 750V isolation to the shunt’s brass terminals, allowing direct attachment to metal surfaces.

Features and Benefits

High precision with ±0.25% accuracy
Resistance is 0.0025ohm
Manganin sensing element
Base mount
Operating temperature ranges between -40°C and 60°C

Applications

Audio/Video systems
Consumer electronics

Specifications
Attribute Value
Maximum Current 50 A
Voltage Output 50mV
Shunt Type Digital
Accuracy ±0.25 %
Minimum Temperature -40°C
Maximum Temperature +60°C
40 In stock for delivery within 2 working days
Unit of sale: Each
22.36
(exc. VAT)
27.50
(inc. VAT)
units
Per unit
1 - 4
€22.36
5 - 9
€21.46
10 +
€21.01
