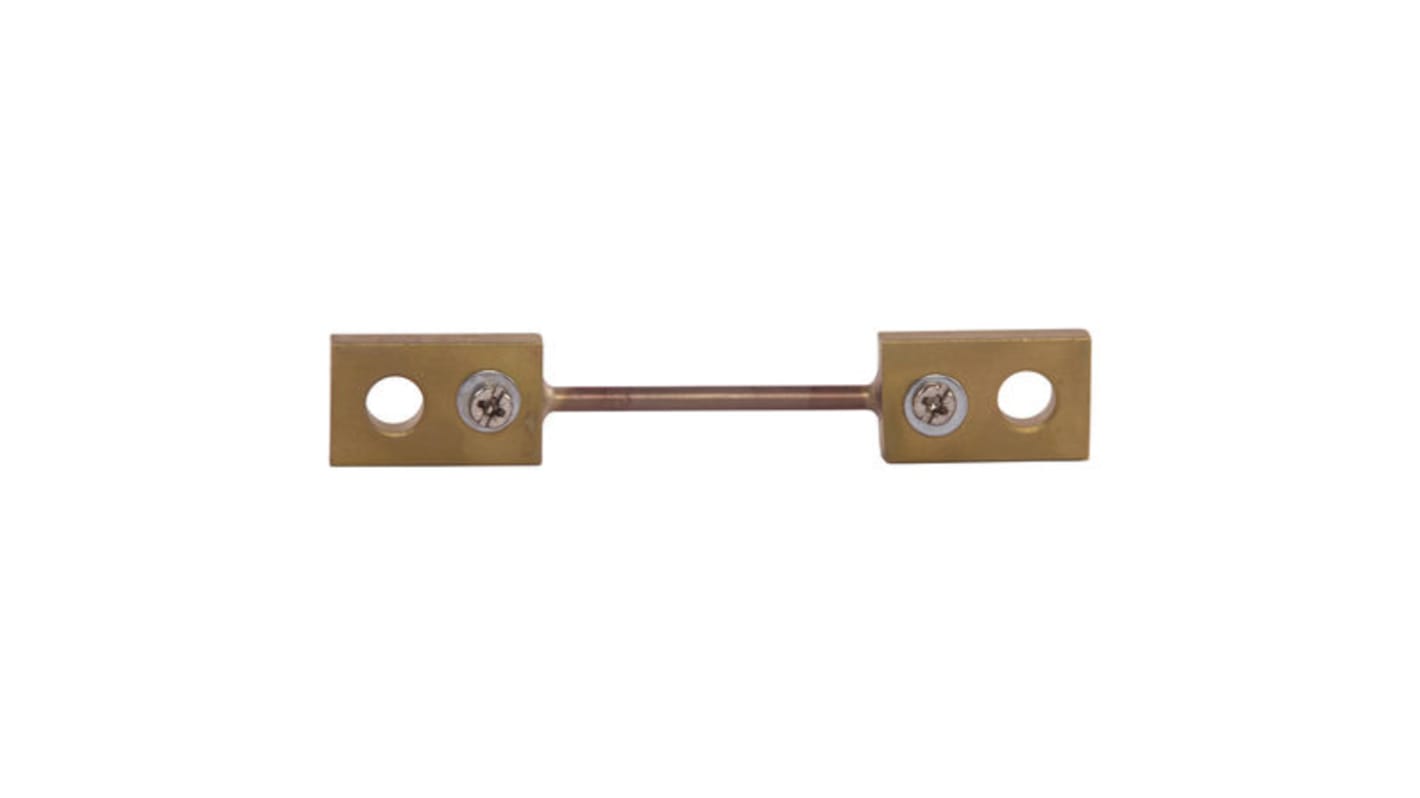

Sifam Tinsley Brass-Ended Shunt, 60 A, 75mV Output,

  • RS Stock No. 886-2086
  • Mfr. Part No. YN01-12751WS000000
  • Manufacturer Sifam Tinsley
Technical data sheets
Legislation and Compliance
Non Compliant
COO (Country of Origin): IN
Product Details

Sifam 75mV Ammeter Measuring Shunt

75mV Shunts Provide an accurate DC millivolt signal to drive ammeter indicators, overload protection and control devices, especially for higher amperage. They supply a voltage drop proportional to the DC current which is measured.
The current passing through the shunt produces a proportional voltage drop. A moving coil instrument connected to shunt measures the voltage drop across the shunt terminals.

Extension of DC current measuring ranges of moving-coil ammeters
Shunts of 1-25A ranges are fixed on an isolating base
The isolating base is adapted to be assembled on a 35mm DIN rail

Shunts

Specifications
Attribute Value
Maximum Current 60 A
Voltage Output 75mV
Shunt Type Brass-Ended
For Use With Ammeter
Series Kappa
3 In stock for delivery within 2 working days
Unit of sale: Each
46.06
(exc. VAT)
56.65
(inc. VAT)
units
Per unit
1 - 4
€46.06
5 - 9
€44.64
10 +
€43.65
