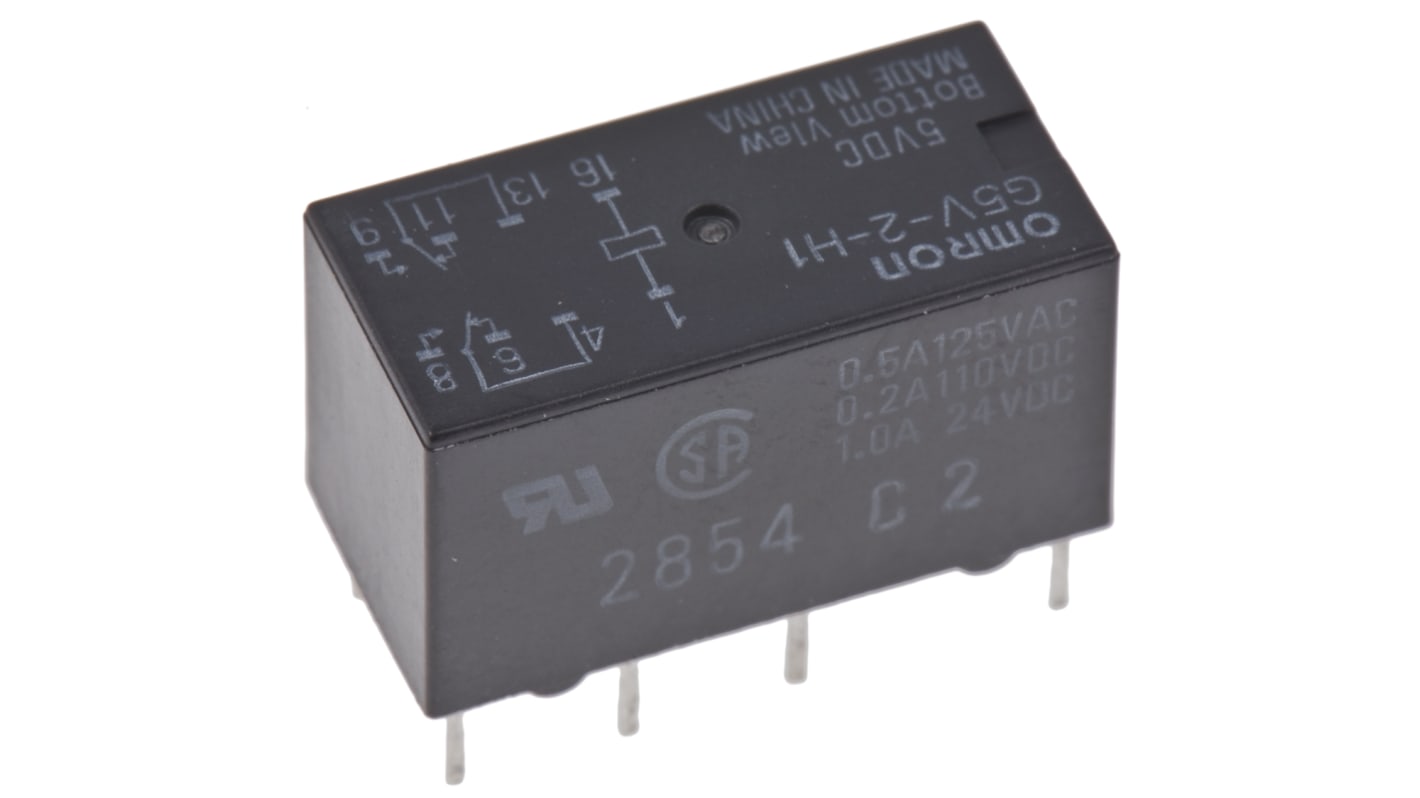

Omron PCB Mount Signal Relay, 5V dc Coil, 1A Switching Current, DPDT
- RS Stock No.:
- 807-4535
- Mfr. Part No.:
- G5V-2-H1 DC5
- Manufacturer:
- Omron
Subtotal (1 unit)*
€4.41
(exc. VAT)
€5.42
(inc. VAT)
- 24 unit(s) ready to ship from another location
Units | Per unit |
|---|---|
| 1 - 24 | €4.41 |
| 25 - 49 | €3.76 |
| 50 - 99 | €3.54 |
| 100 - 249 | €3.35 |
| 250 + | €3.00 |
*price indicative
- RS Stock No.:
- 807-4535
- Mfr. Part No.:
- G5V-2-H1 DC5
- Manufacturer:
- Omron
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 5V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Maximum Switching Current DC | 1 A | |
| Maximum Switching Voltage AC | 125V | |
| Maximum Switching Voltage DC | 125V | |
| Series | W11 | |
| Maximum Switching Power DC | 24 W | |
| Latching | No | |
| Length | 20.5mm | |
| Depth | 10.5mm | |
| Height | 11.5mm | |
| Dimensions | 20.5 x 10 x 11.5mm | |
| Terminal Type | Through Hole | |
| Number of Poles | 2 | |
| Application | Telecommunications | |
| Switching Current | 1A | |
| Isolation Coil To Contact | 1kV rms | |
| Maximum Operating Temperature | +70°C | |
| Contact Material | Gold Plated | |
| Coil Power | 150mW | |
| Coil Resistance | 166Ω | |
| Maximum Switching Power AC | 62.5VA | |
| Life | 100000 Operations | |
| Operating Temperature Range | -25 → +70°C | |
| Minimum Operating Temperature | -25°C | |
| Electrical Life | 10^5 Operations | |
| Features | Conforms to FCC Part 68 Requirements, Bifurcated Contacts | |
Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 5V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Maximum Switching Current DC 1 A | ||
Maximum Switching Voltage AC 125V | ||
Maximum Switching Voltage DC 125V | ||
Series W11 | ||
Maximum Switching Power DC 24 W | ||
Latching No | ||
Length 20.5mm | ||
Depth 10.5mm | ||
Height 11.5mm | ||
Dimensions 20.5 x 10 x 11.5mm | ||
Terminal Type Through Hole | ||
Number of Poles 2 | ||
Application Telecommunications | ||
Switching Current 1A | ||
Isolation Coil To Contact 1kV rms | ||
Maximum Operating Temperature +70°C | ||
Contact Material Gold Plated | ||
Coil Power 150mW | ||
Coil Resistance 166Ω | ||
Maximum Switching Power AC 62.5VA | ||
Life 100000 Operations | ||
Operating Temperature Range -25 → +70°C | ||
Minimum Operating Temperature -25°C | ||
Electrical Life 10^5 Operations | ||
Features Conforms to FCC Part 68 Requirements, Bifurcated Contacts | ||
