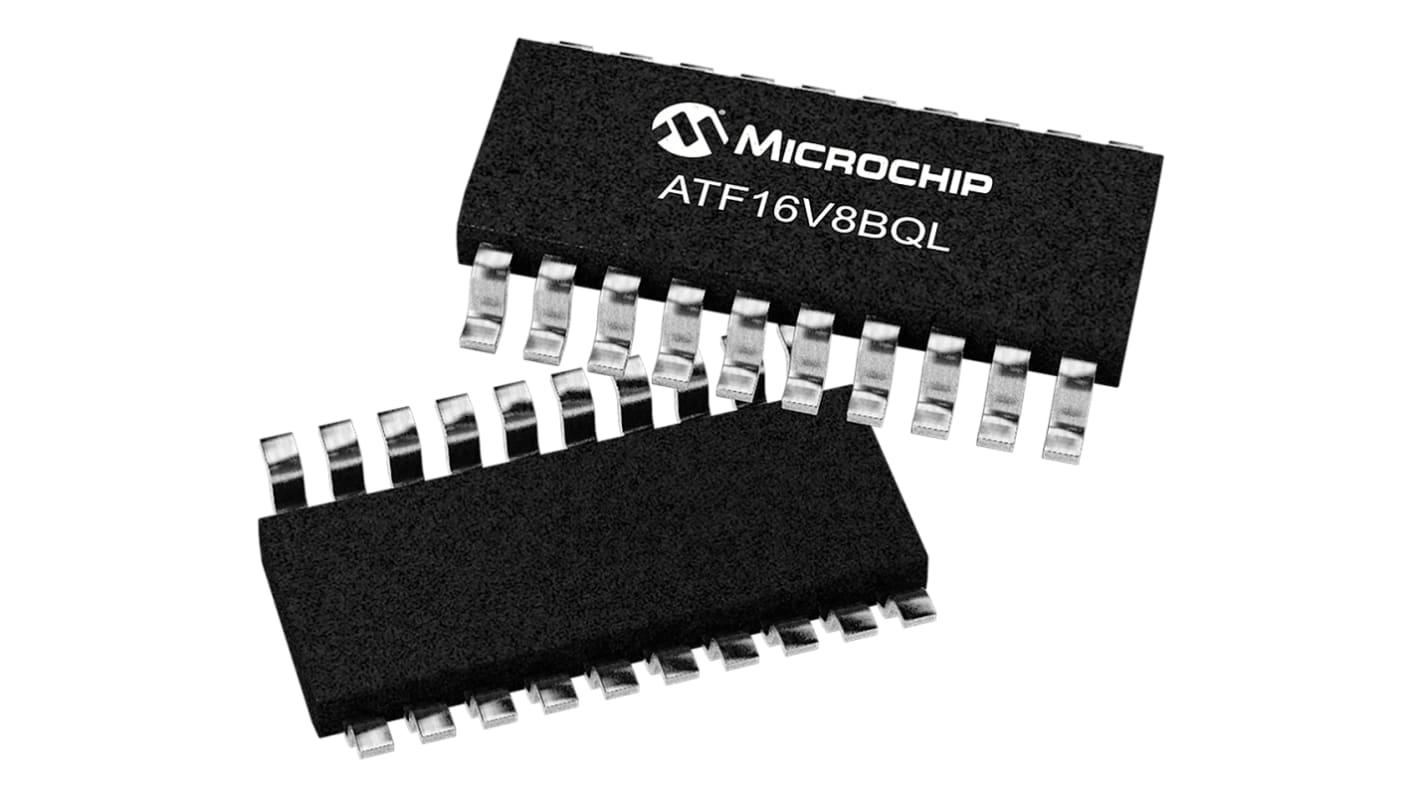

Microchip ATF16V8BQL-15XU, SPLD Simple Programmable Logic Device ATF16V8B 150 Gates, 8 Macro Cells, 8 I/O, 62MHz 15ns
RS Stock No.:
127-8207P
Mfr. Part No.:
ATF16V8BQL-15XU
Manufacturer:
Microchip
View all SPLDs
520 In stock for delivery within 2 working days
Add to Basket
Units
Add to basket
Real time stock check
Add to a parts list
Price Each (Supplied in a Tube)
€1.624
(exc. VAT)
€1.998
(inc. VAT)
Units
Per unit
25 - 95
€1.624
100 +
€1.56
Packaging Options:
Standard Pack
Production Pack
RS Stock No.:
127-8207P
Mfr. Part No.:
ATF16V8BQL-15XU
Manufacturer:
Microchip
Technical data sheets
Legislation and Compliance
Product Details
Specifications
ATF16V8BQL-15XU Datasheet
ESD Control Selection Guide V1
RoHS Certificate of Compliance
Statement of conformity
Simple Programmable Logic Device, Microchip
From Atmel, this high-performance programmable logic device boasts low power, high reliability and an industry standard architecture.
Attribute
Value
Family Name
ATF16V8B
Number of Gates
150
Number of Macro Cells
8
Number of User I/Os
8
Maximum Internal Frequency
62MHz
Re-programmability Support
Yes
Mounting Type
Surface Mount
Package Type
TSSOP
Pin Count
20
Maximum Propagation Delay Time
15ns
Fabrication Technology
CMOS, TTL
Dimensions
6.6 x 4.5 x 1.05mm
Height
1.05mm
Maximum Operating Supply Voltage
5 V
Propagation Delay Test Condition
50pF
Maximum Operating Temperature
+85 °C
Minimum Operating Temperature
-40 °C
Width
4.5mm
Length
6.6mm
