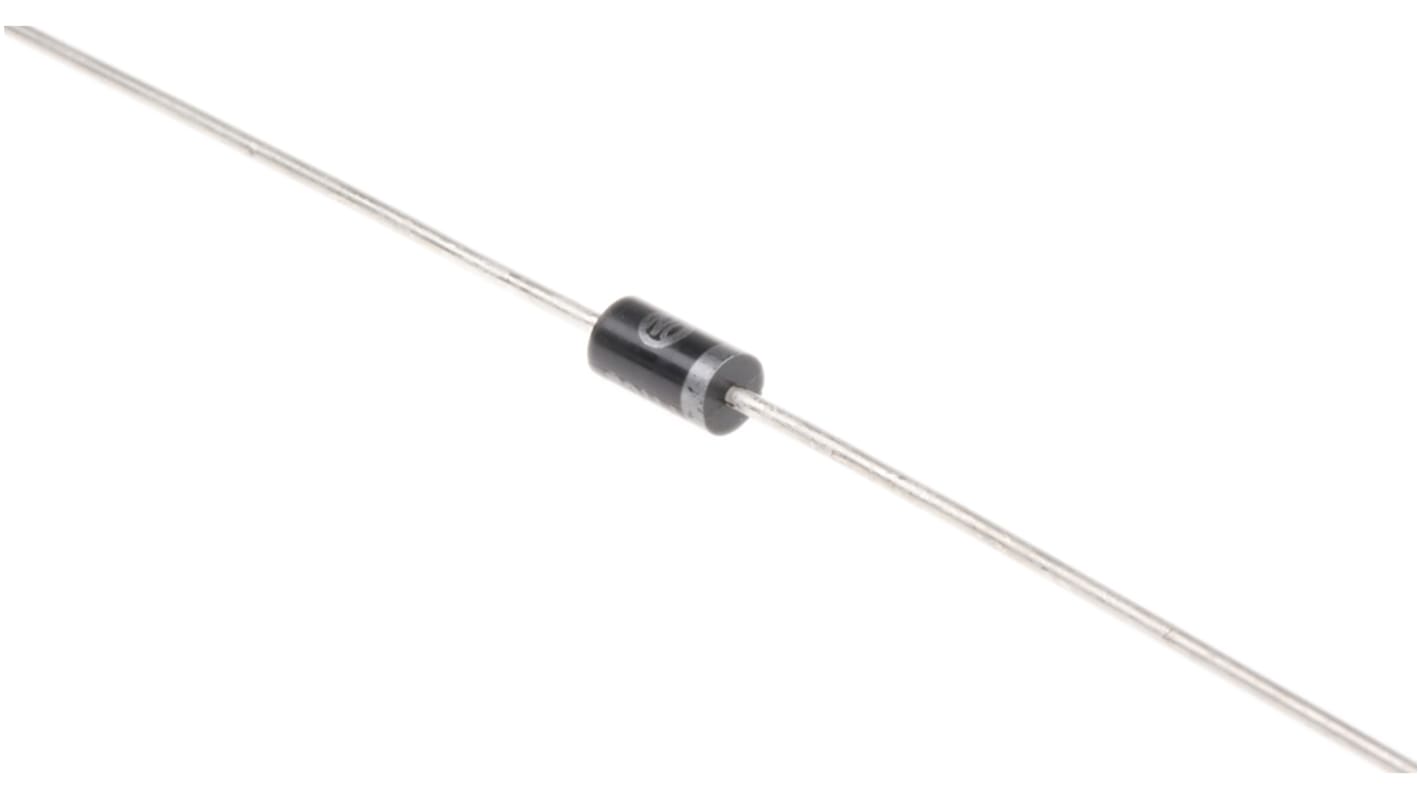

onsemi Switching Diode, 2-Pin DO-41 1N4001G

RS Stock No.:: 774-3265
Mfr. Part No.:: 1N4001G
Manufacturer:: onsemi

onsemi Switching Diode, 2-Pin DO-41 1N4001G

600 Within 1 working day(s) (IE stock)

12300 Within 2 working day(s) (EU stock)

Added

View basket

Price Each (In a Pack of 50)

€0.174

(exc. VAT)

€0.214

(inc. VAT)

Units	Per unit	Per Pack*
50 - 50	€0.174	€8.70
100 - 950	€0.074	€3.70
1000 - 1950	€0.051	€2.55
2000 - 9950	€0.039	€1.95
10000 +	€0.029	€1.45
*price indicative

RS Stock No.:: 774-3265
Mfr. Part No.:: 1N4001G
Manufacturer:: onsemi

Technical data sheets

Datasheet

Legislation and Compliance

Product Details

ON Semi 1N4001-1N4007 Axial Lead Standard Recovery Rectifiers

This range of ON Semiconductor products are the standard rectifiers which are specifically designed for general purpose, low power applications. With a finish that ensures its external surfaces are corrosion resistant and terminal leads are readily solderable, this product offers an effective and reliable product to it’s customers.

Features:

• Case: Epoxy, Molded
• Weight: 0.4 Gram
• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
• Lead Temperature for Soldering Purposes: 260°C Max for 10 Seconds
• Polarity: Cathode Indicated by Polarity Band

Typical Applications

• High frequency inverters
• Free wheeling diodes
• Polarity protection diodes

Specifications

Attribute	Value
Diode Configuration	Single
Number of Elements per Chip	1
Mounting Type	Through Hole
Package Type	DO-41
Diode Technology	Silicon Junction
Maximum Forward Voltage Drop	1.1V
Pin Count	2
Minimum Operating Temperature	-65 °C
Maximum Operating Temperature	+175 °C
Height	5.2mm
Dimensions	2.7 (Dia.) x 5.2mm
Diameter	2.7mm
