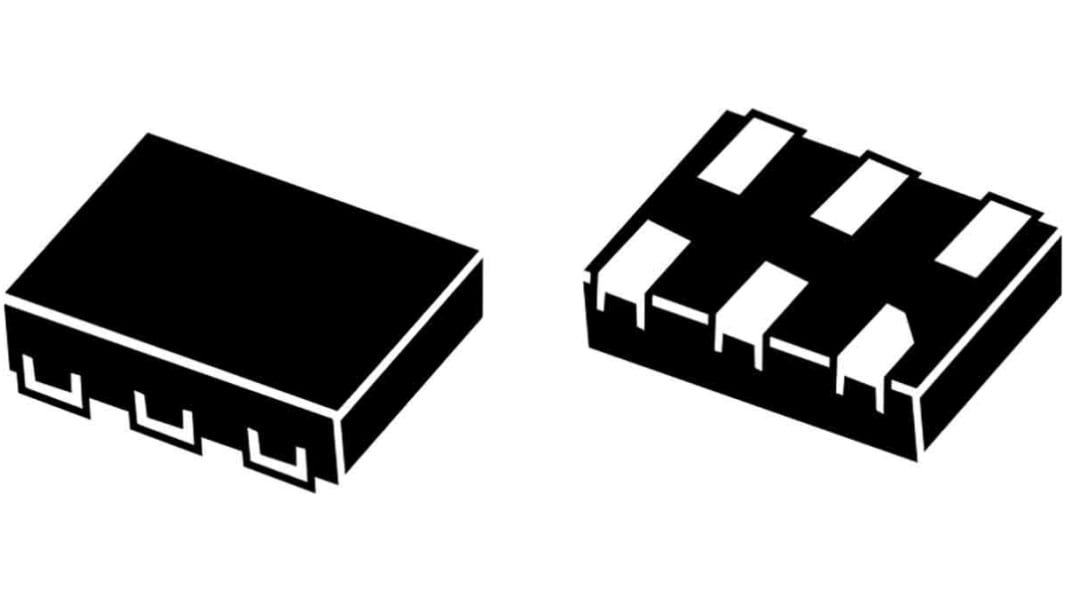

STMicroelectronics Temperature & Humidity Sensor, Digital Output, Surface Mount, SMBus, ±2.5%, 6 Pins
- RS Stock No.:
- 190-6794
- Mfr. Part No.:
- STTS751-0DP3F
- Manufacturer:
- STMicroelectronics
Temporarily out of stock - back order for despatch 11-04-2025, delivery within 2 working days
Price Each (On a Reel of 3000)
€0.507
(exc. VAT)
€0.624
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 + | €0.507 | €1,521.00 |
| *price indicative | ||
- RS Stock No.:
- 190-6794
- Mfr. Part No.:
- STTS751-0DP3F
- Manufacturer:
- STMicroelectronics
Technical data sheets
Legislation and Compliance
Product Details
Operating voltage 2.25 V to 3.6 V
Operating temperature –40 °C to +125 °C
Programmable
10 different conversion rates 0.0625 to 32 conversions/sec. 1 conversion/sec. - default
4 different resolutions 9-bit (0.5 °C/LSB) to12-bit (0.0625 °C/LSB) 10-bit (0.25 °C/LSB) - default
Low supply current
50 μA (typ) for 8 conversions/sec.
20 μA (typ) for 1 conversion/sec.
3 μA (typ) standby
Accuracy
±0.5 °C (typ) 0 °C to +85 °C
±0.5 °C (typ) –40 °C to +125 °C
One-shot mode for power saving
Fast conversion time 21 ms (typ) 10-bit
Pull-up resistor value allows single pin to select one of four slave addresses
Supports 400 kHz serial clock
SMBus 2.0 compatible
SMBus ALERT (ARA) support
SMBus timeout
Green
Operating temperature –40 °C to +125 °C
Programmable
10 different conversion rates 0.0625 to 32 conversions/sec. 1 conversion/sec. - default
4 different resolutions 9-bit (0.5 °C/LSB) to12-bit (0.0625 °C/LSB) 10-bit (0.25 °C/LSB) - default
Low supply current
50 μA (typ) for 8 conversions/sec.
20 μA (typ) for 1 conversion/sec.
3 μA (typ) standby
Accuracy
±0.5 °C (typ) 0 °C to +85 °C
±0.5 °C (typ) –40 °C to +125 °C
One-shot mode for power saving
Fast conversion time 21 ms (typ) 10-bit
Pull-up resistor value allows single pin to select one of four slave addresses
Supports 400 kHz serial clock
SMBus 2.0 compatible
SMBus ALERT (ARA) support
SMBus timeout
Green
Specifications
Attribute | Value |
|---|---|
| Sensor Function | Temperature |
| Output Type | Digital |
| Interface Type | SMBus |
| Accuracy | ±2.5% |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Minimum Operating Temperature | -40 °C |
| Operating Temperature Range | -40 to +125 °C |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Supply Voltage | 2.25 V |
| Maximum Operating Supply Voltage | 3.6 V |
| Package Type | UDFN |
| Length | 2.05mm |
| Height | 0.5mm |
| Width | 2.05mm |
| Resolution | 12 bit |
| Dimensions | 2.05 x 2.05 x 0.5mm |
