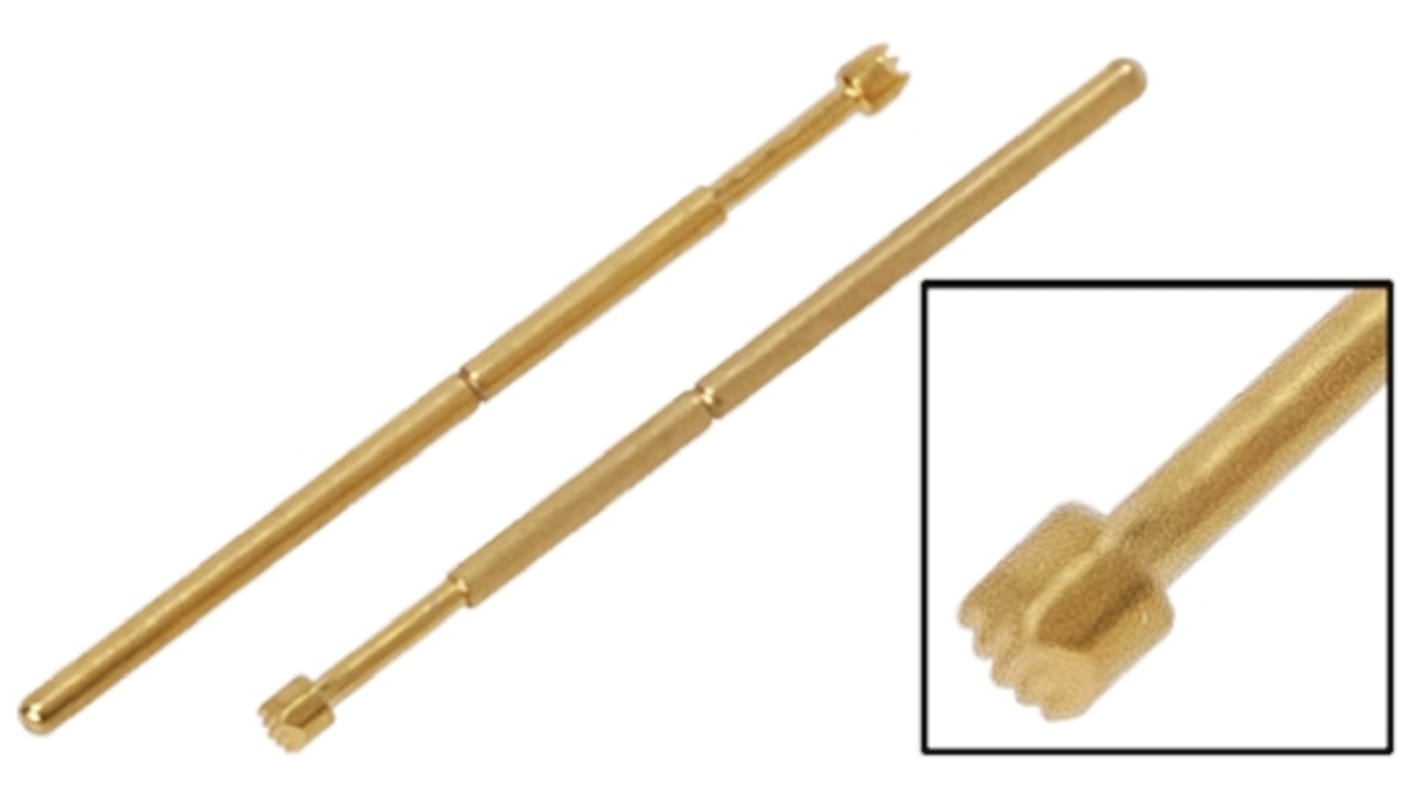

HARWIN Spring Test Probe With Serrated Tip
- RS Stock No.:
- 261-5115
- Mfr. Part No.:
- P13-4023
- Manufacturer:
- HARWIN
270 In stock for delivery within 2 working days
Added
Price Each (In a Pack of 5)
€2.784
(exc. VAT)
€3.424
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 20 | €2.784 | €13.92 |
| 25 - 45 | €2.574 | €12.87 |
| 50 - 95 | €2.366 | €11.83 |
| 100 + | €2.156 | €10.78 |
| *price indicative | ||
- RS Stock No.:
- 261-5115
- Mfr. Part No.:
- P13-4023
- Manufacturer:
- HARWIN
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS Pro Spring Probe with Crosscut Head
Brought to you under the trusted RS Pro Brand, this crosscut headed spring spade terminal probe is designed to be used with an appropriate receptacle, which is ordered separately. Having the probe separate from the receptacle allows easy replacement of damaged spring test probes without disturbing the wiring.
The probe is suited ideally (in development and production) for automatic test equipment (ATE) and test jigs, where fast testing of multipoint PCBs and sub-assemblies is required. Receptacles can be push fitted into the mounting plate to provide an airtight seal without the use of adhesives.
The crosscut head is ideal for test lands, pads and leads. The sharp points penetrate and provide excellent electrical contact.
An inserter is available for the 2.54mm pitch receptacles (See stock number 434-790.)
The probe is suited ideally (in development and production) for automatic test equipment (ATE) and test jigs, where fast testing of multipoint PCBs and sub-assemblies is required. Receptacles can be push fitted into the mounting plate to provide an airtight seal without the use of adhesives.
The crosscut head is ideal for test lands, pads and leads. The sharp points penetrate and provide excellent electrical contact.
An inserter is available for the 2.54mm pitch receptacles (See stock number 434-790.)
Features and Benefits
• Contact Resistance of 50mΩ
• Current Rating of 3A
• Gold Plated
• Spring Pressure of 1.47 N(g)
• Current Rating of 3A
• Gold Plated
• Spring Pressure of 1.47 N(g)
Specifications
Attribute | Value |
|---|---|
| Length | 16.35mm |
| Body Material | Phosphor Bronze |
| Contact Resistance | 30mΩ |
| Probe Tip Type | Serrated |
