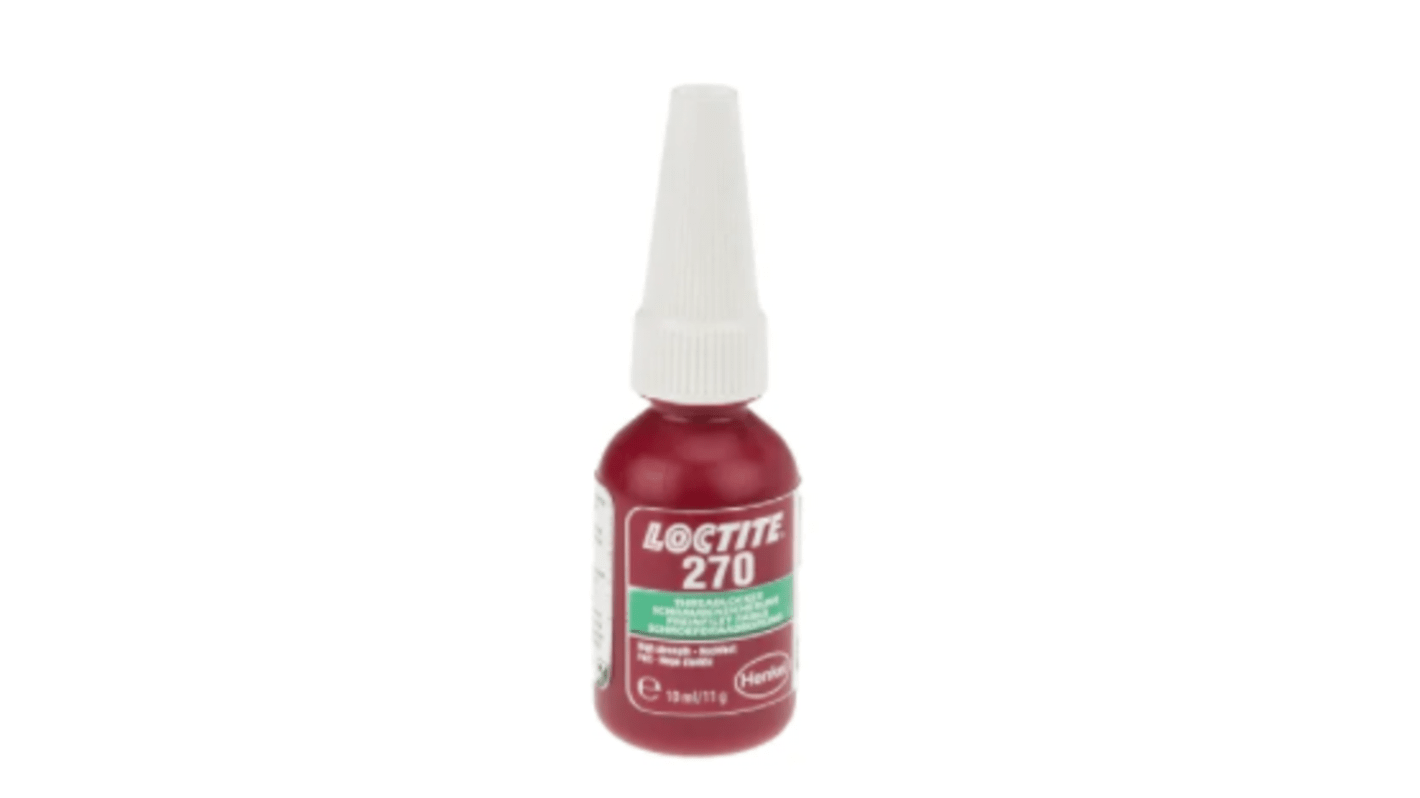

Loctite 270 Green Thread lock, 10 ml, 12 h Cure Time

  • RS Stock No. 517-7874
  • Mfr. Part No. 27016
  • Manufacturer Loctite
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IE
Product Details

LOCTITE® 270

High-strength screwlock
For connections up to M20
High strength — prevents unwanted manipulation
Dismantling only possible after heating to 300 °C
Resistant to chemicals
Suitable for temperatures up to 150 °C

Fixture time: 10 min
Final strength: 12 hrs
Temperature range: -55 °C → +150 °C

Loctite Thread lock

The Loctite 10ml green thread lock is designed for permanent locking and sealing of threaded fasteners. This product cures when confined in the absence of air between close-fitting metal surfaces and prevents loosening and leakage from shock and vibration. Loctite
270 is particularly suited for heavy-duty applications such as studs into motor housings, nuts onto studs in pump housings and other fasteners where high strength is required. It provides robust curing performance. It not only works on active metals (e. G. brass, copper) but also on passive substrates such as stainless steel and plated surfaces. This product offers high-temperature performance and oil tolerance. It tolerates minor surface contaminations from various oils, such as cutting, lubrication, anti-corrosion and protection fluids.

Features and Benefits

• High strength screw lock
• For connections up to M20
• High strength prevents unwanted manipulation
• Dismantling only possible after heating to 300°C
• Resistant to chemicals
• Suitable for temperatures up to 150°C
• Fixture time of 10 minutes
• Final strength of 12 hours
• Cure time of 24 hours
• Low viscosity of 400 → 600mPa/s
• Operating temperature ranges between -55⁰C and 180⁰C

Certifications

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007

Specifications
Attribute Value
Trade Name Loctite 270
Application Threadlocking
Material Compatibility Metal
Threadlocking Strength High
Cure Time 24 h
Anaerobic Yes
Colour Green
Product Form Liquid
Package Type Bottle
Package Size 10 ml
Maximum Operating Temperature +180°C
Minimum Operating Temperature -55°C
Chemical Composition Dimethacrylate Ester
Viscosity Description Low Viscosity
Viscosity Measurement 400 → 600mPa/s
Operating Temperature Range -55 → +180 °C
Odour Characteristic
Special Features Anaerobic
4 Within 1 working day(s) (IE stock)
146 Within 2 working day(s) (EU stock)
Unit of sale: Each
13.74
(exc. VAT)
16.90
(inc. VAT)
units
Per unit
1 - 5
€13.74
6 - 14
€13.19
15 +
€12.92
