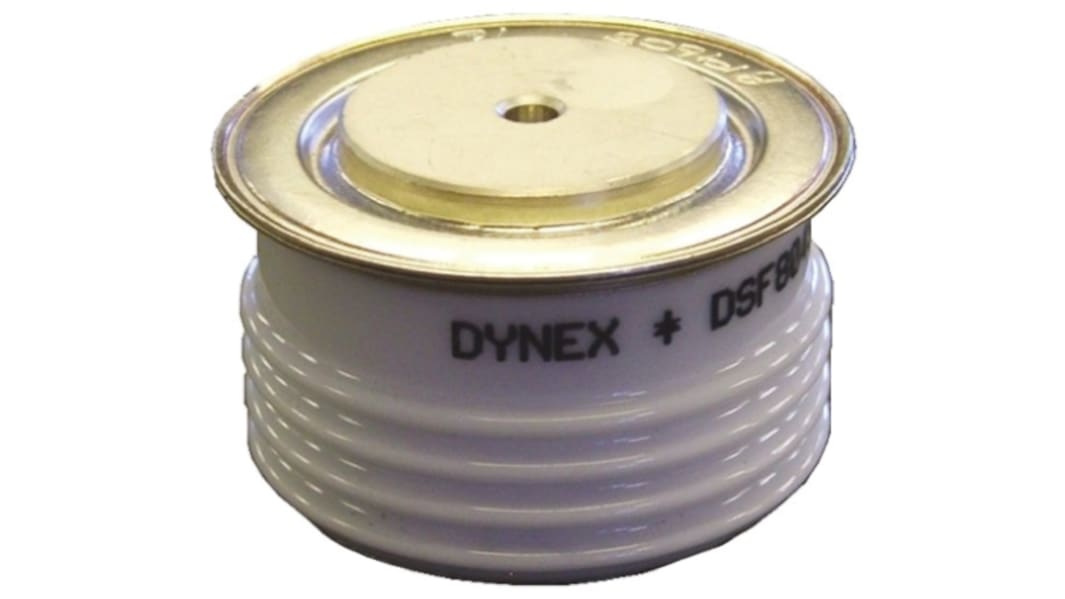

Dynex DCR1010G14, Thyristor 1400V, 1010A 300mA
- RS Stock No.:
- 760-9279
- Mfr. Part No.:
- DCR1010G14
- Manufacturer:
- Dynex
Temporarily out of stock - back order for despatch 07-06-2024, delivery within 2 working days
Added
Price Each
€135.98
(exc. VAT)
€167.26
(inc. VAT)
| Units | Per unit |
| 1 - 1 | €135.98 |
| 2 - 3 | €123.33 |
| 4 + | €119.65 |
- RS Stock No.:
- 760-9279
- Mfr. Part No.:
- DCR1010G14
- Manufacturer:
- Dynex
Technical data sheets
Legislation and Compliance
Product Details
Phase Control Capsule Thyristors, DYNEX
Supplied with
Gate & Cathode Leads.
Thyristors - DYNEX
A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
Specifications
Attribute | Value |
|---|---|
| Rated Average On-State Current | 1010A |
| Thyristor Type | SCR |
| Package Type | Type G |
| Repetitive Peak Reverse Voltage | 1400V |
| Surge Current Rating | 15000A |
| Mounting Type | Stud |
| Maximum Gate Trigger Current | 300mA |
| Maximum Gate Trigger Voltage | 3V |
| Maximum Holding Current | 200mA |
| Pin Count | 3 |
| Dimensions | 58 (Dia.) x 26.5mm |
| Repetitive Peak Off-State Current | 60mA |
| Repetitive Peak Forward Blocking Voltage | 1400V |
| Maximum Operating Temperature | +125 °C |
| Peak On-State Voltage | 1.35V |
