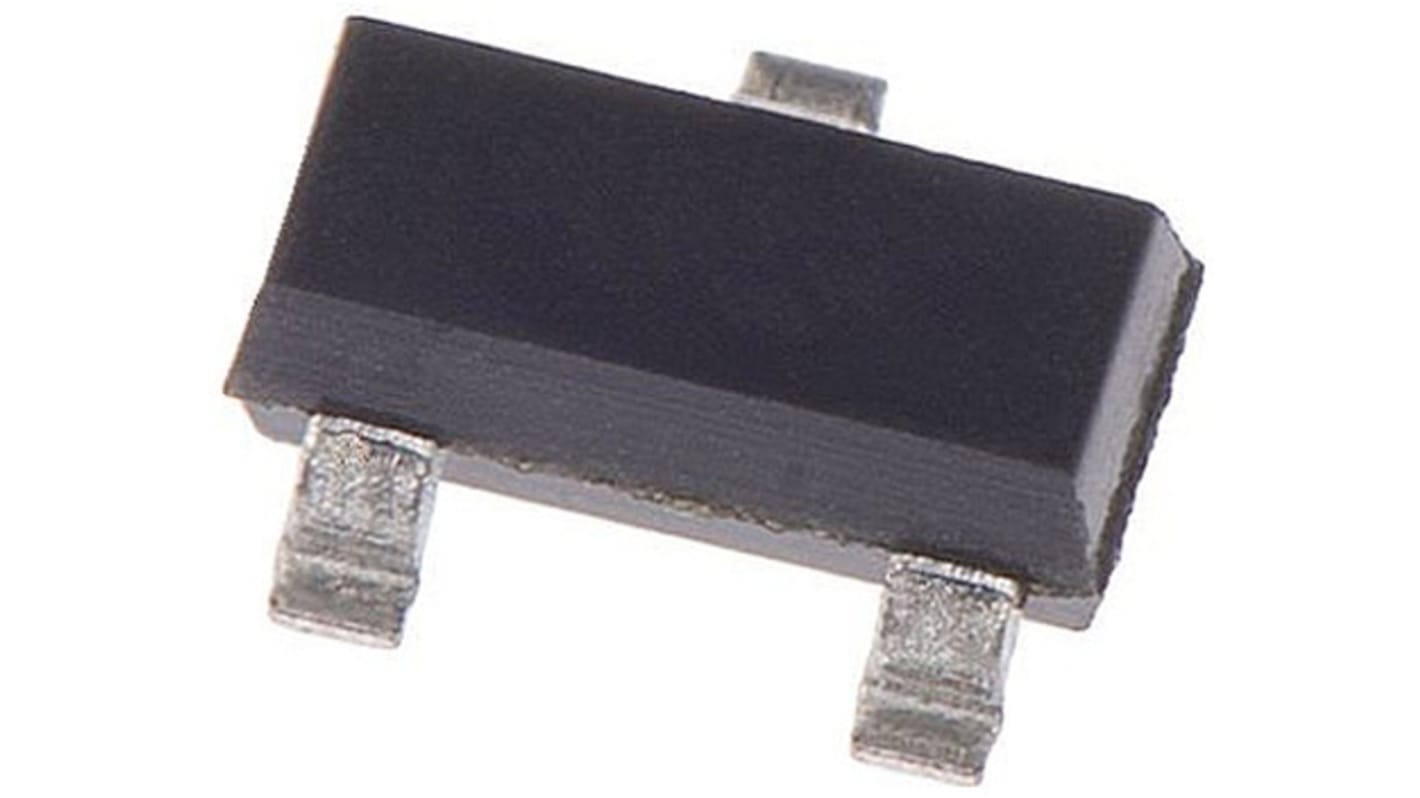

Wurth Elektronik 824022, Dual-Element Bi-Directional TVS Diode, 3-Pin SOT-23
- RS Stock No.:
- 754-6247
- Mfr. Part No.:
- 824022
- Manufacturer:
- Wurth Elektronik
1260 In stock for delivery within 2 working days
Price Each (In a Pack of 5)
€0.618
(exc. VAT)
€0.76
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 45 | €0.618 | €3.09 |
| 50 - 245 | €0.392 | €1.96 |
| 250 - 495 | €0.372 | €1.86 |
| 500 + | €0.348 | €1.74 |
| *price indicative | ||
- RS Stock No.:
- 754-6247
- Mfr. Part No.:
- 824022
- Manufacturer:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
Product Details
ESD Protectors, Wurth Elektronik
TVS Diode Arrays WE-TVS Series
ESD Ultra Low Capacitance TVS
Electrostatic Discharge (ESD) protection applications for USB 2.0, HDMI, DVI, Ethernet, Firewire, and Serial Bus interfaces
Working Voltage 3.3V, 5V and 12V
ESD Ultra Low Capacitance TVS
Electrostatic Discharge (ESD) protection applications for USB 2.0, HDMI, DVI, Ethernet, Firewire, and Serial Bus interfaces
Working Voltage 3.3V, 5V and 12V
Transient Voltage Suppressors, Wurth Elektronik
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Series |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 8V |
| Minimum Breakdown Voltage | 6.1V |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 3 |
| Maximum Peak Pulse Current | 8A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Dimensions | 2.9 x 1.3 x 1mm |
| Maximum Operating Temperature | +125 °C |
| Test Current | 1mA |
| Length | 2.9mm |
| Height | 1mm |
| Maximum Reverse Leakage Current | 2.5µA |
| Width | 1.3mm |
