RS PRO Drive Belt, belt section SPZ, 1000mm Length
- RS Stock No.:
- 136-8417
- Manufacturer:
- RS PRO
76 In stock for delivery within 2 working days
Added
Price Each
€4.92
(exc. VAT)
€6.05
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €4.92 |
| 5 - 9 | €4.83 |
| 10 - 24 | €4.72 |
| 25 + | €4.64 |
- RS Stock No.:
- 136-8417
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

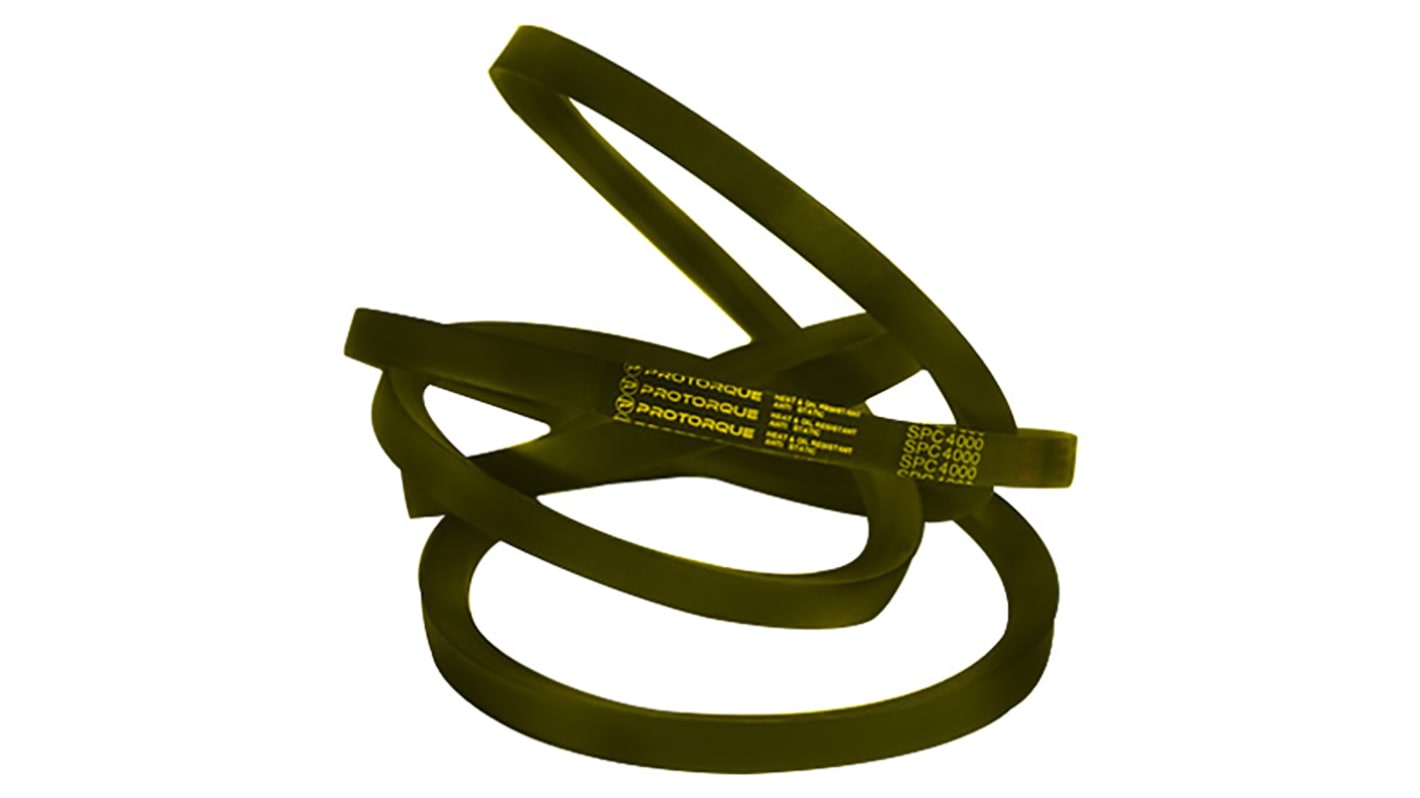

Wrapped High Performance Wedge Belts
These high performance wedge belts from RS Pro have been designed to deliver at least double the amount of power that conventional V belts do.
Made from a heavy-duty wear resistant rubber, the RS Pro wedge belts deliver protection from oil, heat and dirt, giving them longevity.
The dynamic load capacity is a result of the specially treated low stretch polyester tension cords. These cords enable resistance to flex fatigue and shock loads.
With a flexible fibre loaded rubber base, these RS Pro wedge belts allow for high belt tensions and increased power transmission.
Made from a heavy-duty wear resistant rubber, the RS Pro wedge belts deliver protection from oil, heat and dirt, giving them longevity.
The dynamic load capacity is a result of the specially treated low stretch polyester tension cords. These cords enable resistance to flex fatigue and shock loads.
With a flexible fibre loaded rubber base, these RS Pro wedge belts allow for high belt tensions and increased power transmission.
Features and Benefits
• Deeper profile for higher power
• Consistent length as per ISO specifications
• Operating temperature range -40 °C to +70 °C
• Oil, heat and ozone resistant
• Antistatic as per ISO 1813
• Abrasion and wear resistant
• RoHS and REACH compliant
Product Application Information
Suitable for all industrial applications where space, weight and high horsepower are important.
RS Pro
Specifications
Attribute | Value |
|---|---|
| Length | 1000mm |
| Top Width | 9.7mm |
| Belt Section | SPZ |
| Inside Length | 962mm |
| Height | 8mm |
| Minimum Pulley Diameter | 63mm |
| Outer Length | 1013mm |
| Minimum Operating Temperature | -40°C |
| Datum Length | 1000mm |
| Maximum Operating Temperature | +70°C |
