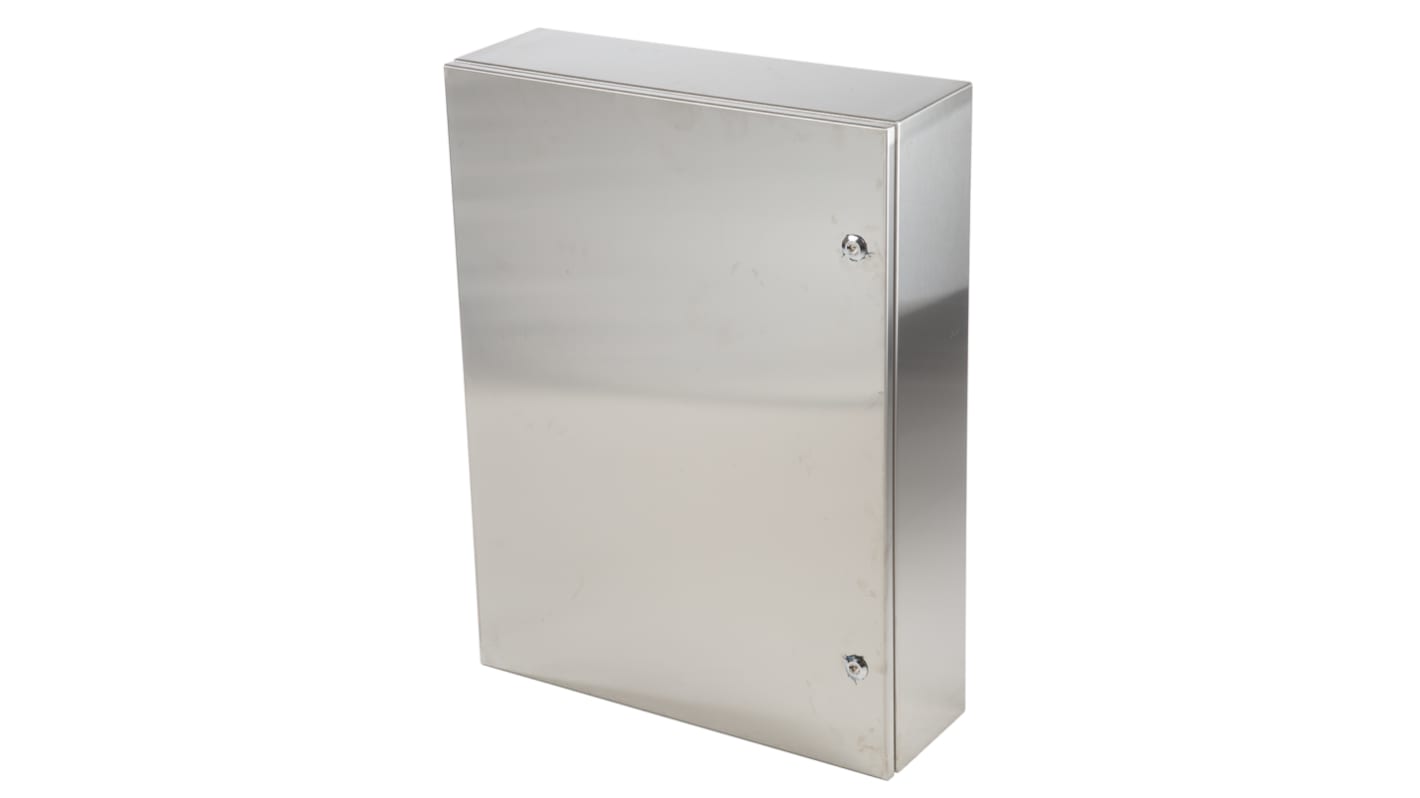

ABB SRX Series 304 Stainless Steel Wall Box, IP66, 800 mm x 600 mm x 200mm
- RS Stock No.:
- 799-0587
- Mfr. Part No.:
- SRN8620X SRX-SRN8620X
- Manufacturer:
- ABB
Temporarily out of stock - back order for despatch 11-06-2024, delivery within 2 working days
Added
Price Each
€969.36
(exc. VAT)
€1,192.31
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €969.36 |
| 5 - 9 | €920.89 |
| 10 - 24 | €872.42 |
| 25 - 49 | €823.96 |
| 50 + | €775.49 |
Alternatives
This product is not currently available. Here are our alternative recommendations.
- RS Stock No.:
- 799-0587
- Mfr. Part No.:
- SRN8620X SRX-SRN8620X
- Manufacturer:
- ABB
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
ABB SRX Enclosures
The range of ABB stainless steel, SRX enclosures can be used indoors or outdoors and are designed to offer a high standard of protection and strength as well as a very high level of hygiene.
Features and Benefits
• Easy to mount to the wall or floor
• Door can be hinged on the left or the right side
• IP66 protection meaning that they have protection from dust and powerful water jets
• IK10 Protected against 20 Joules impact. Equivalent to impact of 5 kg mass dropped from 400 mm above impacted surface
• Made from 304 stainless steel making the enclosures resistant to oxidation and corrosion
• Chassis plate supplied
• Normal operating conditions -25 to +55°C
• Door can be hinged on the left or the right side
• IP66 protection meaning that they have protection from dust and powerful water jets
• IK10 Protected against 20 Joules impact. Equivalent to impact of 5 kg mass dropped from 400 mm above impacted surface
• Made from 304 stainless steel making the enclosures resistant to oxidation and corrosion
• Chassis plate supplied
• Normal operating conditions -25 to +55°C
Typical Applications
The SRX wall mounted enclosures are ideal for using in environments such as the food, chemical and pharmaceutical industry and hospital sectors. The enclosures are also a great choice for constructing small and medium sized switchboards for automation and distribution.
Note
Enclosures do not have cable entry flanges or an inner door.
Standards
IEC EN 62208, IEC EN 60439-1, IEC 61439-1-2
Certifications UL (Underwriters Laboratories) Ex
Certifications UL (Underwriters Laboratories) Ex
The SRN8620X enclosure has external dimensions of 800mm x 600mm x 200mm.
Supplied with
A blind door and a galvanised sheet metal internal mounting plate.
Specifications
Attribute | Value |
|---|---|
| External Height | 800 mm |
| External Width | 600 mm |
| External Depth | 200mm |
| Body Material | 304 Stainless Steel |
| Transparent Door | No |
| IP Rating | IP66 |
| Chassis Plate | Yes |
| Door Lock Type | Key |
| Gland Plate | No |
| Colour | Unpainted |
| Series | SRX |
| Fixing Kit | No |
| Internal Mounting Type | Panel |
| External Mounting Type | Bracket |
