Xylem Flojet 230 V 1.4 bar Magnetic Coupling Centrifugal Water Pump, 23L/min
- RS Stock No.:
- 667-9071
- Mfr. Part No.:
- 183944
- Manufacturer:
- Xylem Flojet
25 In stock for delivery within 2 working days
Added
Price Each
€300.24
(exc. VAT)
€369.30
(inc. VAT)
| Units | Per unit |
| 1 + | €300.24 |
- RS Stock No.:
- 667-9071
- Mfr. Part No.:
- 183944
- Manufacturer:
- Xylem Flojet
Technical data sheets
Legislation and Compliance
Product Details

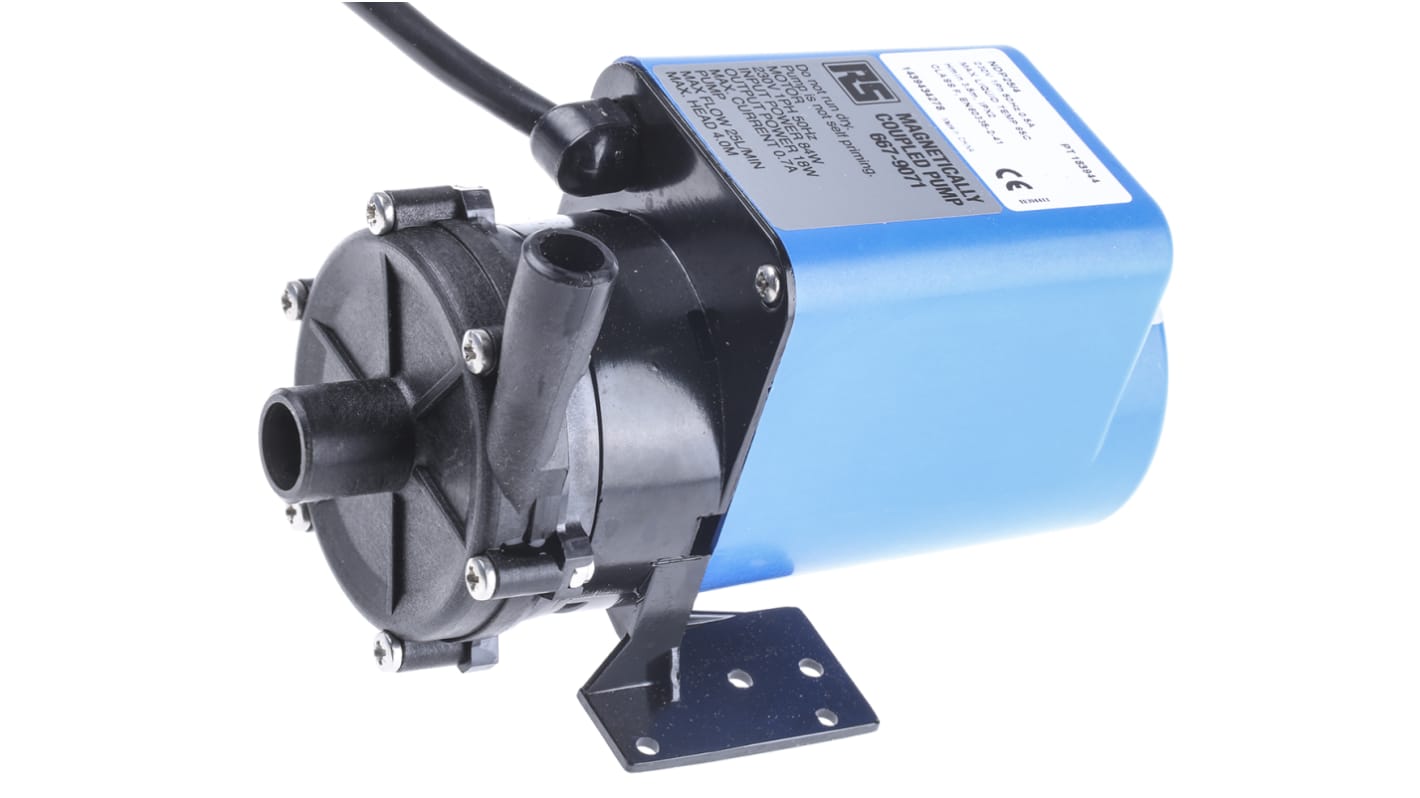

Xylem Flojet Centrifugal Pump
The Xylem Flojet magnetic coupling centrifugal pump is a highly efficient pump designed for continuous transfer/recirculation of aggressive chemicals, chilled water, and pure or precious liquids in the high-pressure system, particularly where space is limited. The product has a maximum flow rate of 23L/minute.
Features and Benefits
The supply voltage is 230V
Maximum working pressure is 1.4bar
Maximum fluid temperature is 85°C
Input power is 80W
Magnetically coupling which offers leak-free pumping
No Mechanical seal
Reduced heat transfer from motor to fluid
Deep groove ball bearings
Manufactured in chemical resistant thermo-plastics – entirely non-metallic
Fluoro-elastomer rubber static O-ring seal, and ’Graph ion’ impeller bearings
The mounting plate offers several fixing options
Maximum working pressure is 1.4bar
Maximum fluid temperature is 85°C
Input power is 80W
Magnetically coupling which offers leak-free pumping
No Mechanical seal
Reduced heat transfer from motor to fluid
Deep groove ball bearings
Manufactured in chemical resistant thermo-plastics – entirely non-metallic
Fluoro-elastomer rubber static O-ring seal, and ’Graph ion’ impeller bearings
The mounting plate offers several fixing options
Applications
In photographic equipment
X-ray equipment
Industrial processing equipment
X-ray equipment
Industrial processing equipment
Certifications
IP22 rated (Motor housing)
Specifications
Attribute | Value |
|---|---|
| Maximum Flow Rate | 23L/min |
| Supply Voltage | 230 V |
| Maximum Head | 3.8m |
| Maximum Working Pressure | 1.4 bar |
| Body Material | PP |
| Coupling Type | Magnetic |
| Input Power | 80W |
| Maximum Fluid Temperature | +85°C |
| Input Connection Size | 21mm |
| Output Connection Size | 16.5mm |
| Wetted Materials | PP (Housing), Stainless Steel (Spindle), Standard EPDM (O-Ring), Strontium Ferrite (Magnet) |
| IP Rating | IP22 |
| Pump Type | Centrifugal |
