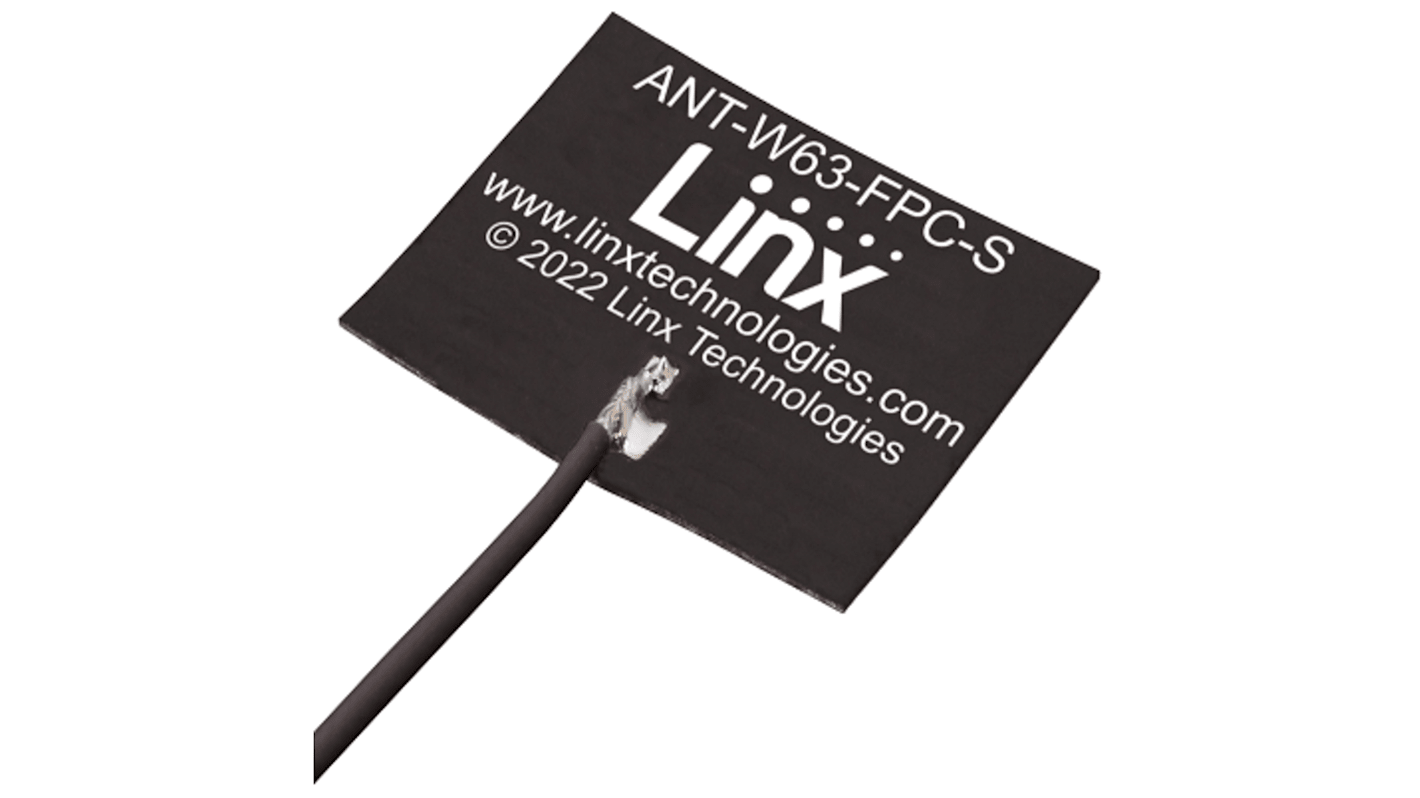

Linx ANT-W63-FPC-SH50M4 PCB WiFi Antenna with MHF4 Connector, WiFi
- RS Stock No.:
- 249-3326
- Mfr. Part No.:
- ANT-W63-FPC-SH50M4
- Manufacturer:
- Linx
966 In stock for delivery within 2 working days
Price Each (In a Pack of 2)
€8.59
(exc. VAT)
€10.57
(inc. VAT)
Units | Per unit | Per Pack* |
---|---|---|
1 - 9 | €8.59 | €17.18 |
10 - 24 | €8.16 | €16.32 |
25 - 49 | €7.76 | €15.52 |
50 + | €7.00 | €14.00 |
*price indicative
- RS Stock No.:
- 249-3326
- Mfr. Part No.:
- ANT-W63-FPC-SH50M4
- Manufacturer:
- Linx
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The Linx Technologies ANT-W63-FPC-SH series antennas are 25 mm x 20 mm adhesive flexible printed circuit (FPC) antennas for WiFi 6/WiFi 6E applications in the 2.4 GHz, 5 GHz and 6 GHz bands. The ANT-W63-FPC-SH antennas provide a ground plane independent dipole internal/embedded antenna solution. The flexibility and adhesive backing makes the ANT-W63-FPC-SH series easy to mount in RF transparent (e.g. plastic) enclosures, enabling environmental sealing and for protection from antenna damage. Connection is made to the radio via a coaxial cable terminated in an MHF1/U.FL-type plug (female socket), or MHF4 plug (female socket) connector.
Performance at 2.4 GHz to 2.5 GHz
VSWR ≤ 1.8
Peak Gain 5.5 dBi
Efficiency 85%
Performance at 5.950 GHz to 7.125 GHz
VSWR ≤ 1.5
Peak Gain 7.8 dBi
Efficiency 76%
Ground plane independent dipole antenna
Compact, low-profile
25.3 mm x 20.3 mm x 0.1 mm
Adhesive backing permanently adheres to non metal enclosures using 3M 467MP™/200MP adhesive
Flexible to fit in challenging enclosures
VSWR ≤ 1.8
Peak Gain 5.5 dBi
Efficiency 85%
Performance at 5.950 GHz to 7.125 GHz
VSWR ≤ 1.5
Peak Gain 7.8 dBi
Efficiency 76%
Ground plane independent dipole antenna
Compact, low-profile
25.3 mm x 20.3 mm x 0.1 mm
Adhesive backing permanently adheres to non metal enclosures using 3M 467MP™/200MP adhesive
Flexible to fit in challenging enclosures
Specifications
Attribute | Value |
---|---|
RF Protocols | WiFi |
Internal/External | Internal |
Antenna Physical Form | PCB |
Frequency Range | 2.4 GHz, 5 GHz |
Connector Type | MHF4 |
Antenna Mounting Type | Adhesive |
Mounting Type | Adhesive |
Gain | 8.5dBi |
Cable Length | 50mm |
Connector Gender | Female |
Antenna Directivity | Omnidirectional |
Antenna Internal Construction | Dipole |
Dimensions | 0.1x20x25mm |
Weight | 0.4g |
Height | 0.1mm |
Width | 20mm |
Depth | 25mm |
Maximum Operating Temperature | +85°C |
Series | LFPCW63 |
Minimum Operating Temperature | -40°C |
