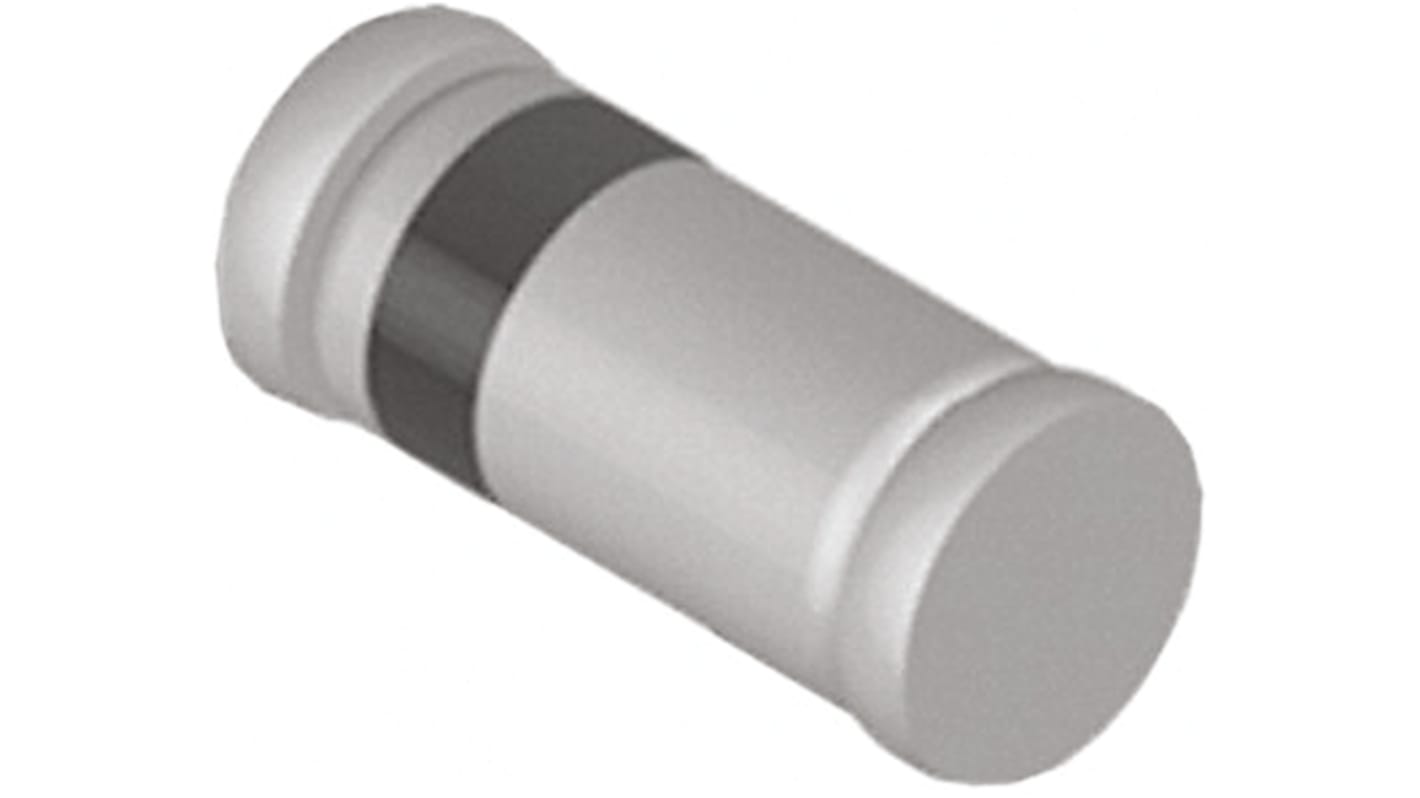

Vishay, 36V Zener Diode 5% 500 mW SMT 2-Pin SOD-80
- RS Stock No.:
- 145-2293
- Mfr. Part No.:
- TZM5258B-GS08
- Manufacturer:
- Vishay
Temporarily out of stock - back order for despatch 02-09-2024, delivery within 2 working days
Added
Price Each (On a Reel of 2500)
€0.037
(exc. VAT)
€0.046
(inc. VAT)
| Units | Per unit | Per Reel* |
| 2500 - 2500 | €0.037 | €92.50 |
| 5000 - 10000 | €0.035 | €87.50 |
| 12500 + | €0.033 | €82.50 |
| *price indicative | ||
- RS Stock No.:
- 145-2293
- Mfr. Part No.:
- TZM5258B-GS08
- Manufacturer:
- Vishay
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Zener Diodes 500mW, TZM52xxB Series, Vishay Semiconductor
Small Signal Zener Diodes
Very sharp reverse characteristic
Very high stability
Low reverse current level
Tolerance ±5%
AEC-Q101 qualified
Very sharp reverse characteristic
Very high stability
Low reverse current level
Tolerance ±5%
AEC-Q101 qualified
Zener Diodes, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 36V |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 500 mW |
| Package Type | SOD-80 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 5% |
| Pin Count | 2 |
| Test Current | 3.4mA |
| Maximum Zener Impedance | 70Ω |
| Maximum Reverse Leakage Current | 100nA |
| Dimensions | 3.7 x 1.6 x 1.6mm |
| Typical Voltage Temperature Coefficient | 0.093%/K |
| Maximum Operating Temperature | +175 °C |
