Staubli Black Female Banana Socket, 4 mm Connector, Solder Termination, 32A, 1000V, Gold Plating

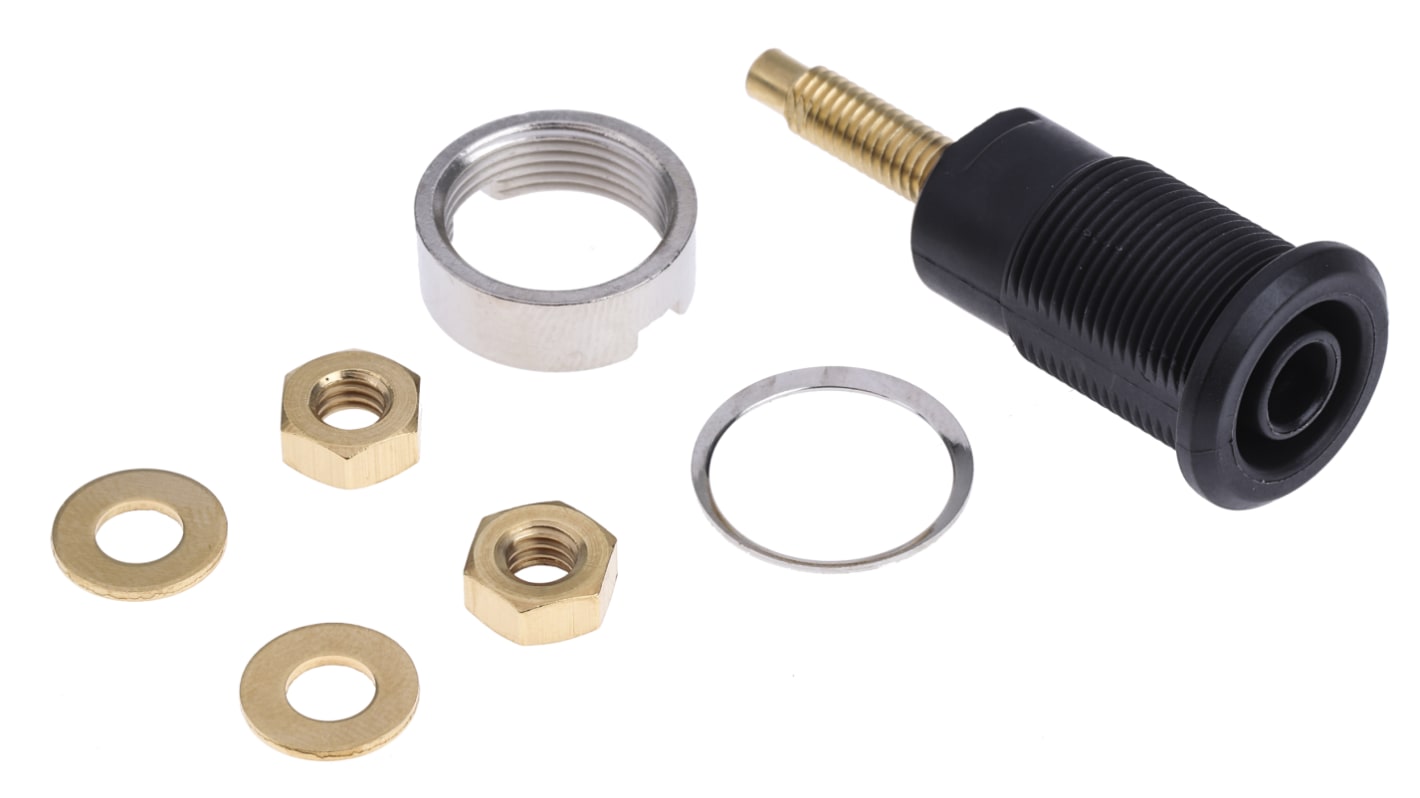

The Multi Contact black, female socket is a 4mm connector for joining wires to electronic equipment. It is equipped with spring-loaded plugs with a rigid insulating sleeve. The socket is screwed into predrilled panels of plastic, metal, and other materials. It has a voltage rating of 1kV and current rating of 32A.

Solder termination
Gold contact plating and brass contact material
Compatible with shrouded plugs and leads
Termination style: M4 15mm stud with soldering hole
Length is 38.5mm
Includes nuts and washers for clamping wire or ring terminals
Panel mounting hole diameter is 12mm
1000 V, CAT III, 32 A

These 4 mm connectors are popular as they can be connected and disconnected quickly and provide a high-quality connection in many applications such as:
Automotive (car manufacturing plant equipment)
Motorsports
Aeronautics (plant equipment)

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
UL approved

Colours available in this SLB4-G series include:
404-200 – black
404-244 – red
404-216 – blue
404-266 – yellow
404-222 – green
122-9695 – brown
122-9696 – grey
404-250 – white
