4 Hole Flange Bearing Unit 50mm ID
- RS Stock No.:
- 750-8927
- Mfr. Part No.:
- UCFX10
- Manufacturer:
- RS PRO
3 Within 1 working day(s) (IE stock)
8 Within 2 working day(s) (EU stock)
Added
Price Each
€58.04
(exc. VAT)
€71.39
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €58.04 |
| 5 - 9 | €56.87 |
| 10 - 24 | €55.71 |
| 25 + | €54.55 |
- RS Stock No.:
- 750-8927
- Mfr. Part No.:
- UCFX10
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details

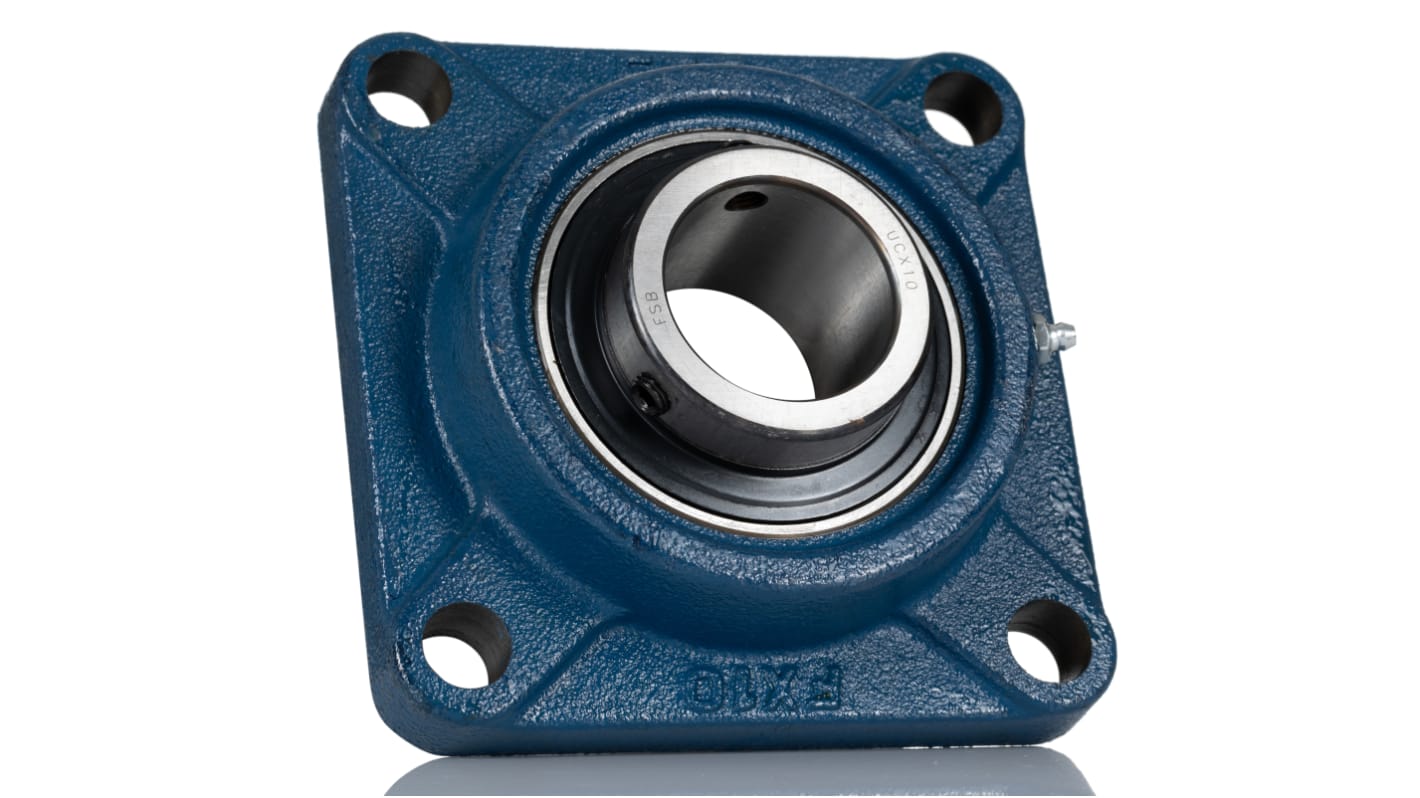

RS PRO Four-Bolt Medium Duty Flange Bearing Unit for 50mm Shaft (162 x 162mm)
A four-bolt flange bearing unit used to support a 50mm diameter shaft designed to provide stability and support to shaft rotation in industrial machinery.
Consisting of a high-quality insert bearing, an extended inner ring and secured with a simple screw locking mechanism for an easy to use flange bearing unit. The bearing unit is held in place with 4 M16 bolt holes for secure attachment to the floor or machine frames for a strong vibration free bearing housing unit capable of withstanding high axial loads.
Flange bearing units are used throughout industries and can be found in a wide variety of applications including agricultural machinery, conveyors, textile equipment or anywhere a high level of power transmission and restriction of axially movement is required.
Features and Benefits
Flange bearing housing unit
Suitable for 50mm shaft rotation
Medium duty
Suitable for constant and alternating rotation
4 x M16 mounted
162 x 162mm base size
Cast Iron construction
High contamination resistance
Suitable for high temperature applications
Suitable for 50mm shaft rotation
Medium duty
Suitable for constant and alternating rotation
4 x M16 mounted
162 x 162mm base size
Cast Iron construction
High contamination resistance
Suitable for high temperature applications
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
Specifications
Attribute | Value |
|---|---|
| Inside Diameter | 50mm |
| Bearing Unit Type | Flange Bearing Unit |
| Number of Mount Holes | 4 |
| Material | Cast Iron |
| Length | 162mm |
| Width | 162mm |
| Depth | 59.4mm |
| Mount Hole Size | 19mm |
| Mount Hole Centre-to-Centre | 130mm |
