RS PRO Digital Switching Power Supply, 0 → 32V, 3A, 3-Output, 420W - RS Calibrated

RS Stock No.:: 252-2001
Manufacturer:: RS PRO

RS PRO Digital Switching Power Supply, 0 → 32V, 3A, 3-Output, 420W - RS Calibrated

Subtotal (1 unit)**

€879.40

(exc. VAT)

€1,081.66

(inc. VAT)

3 In stock, please allow up to 5 working days for delivery*

* Delivery dates may change based on your chosen quantity and delivery address.

Real time stock check

Units	Per unit
1 +	€879.40

**price indicative

RS Stock No.:: 252-2001
Manufacturer:: RS PRO

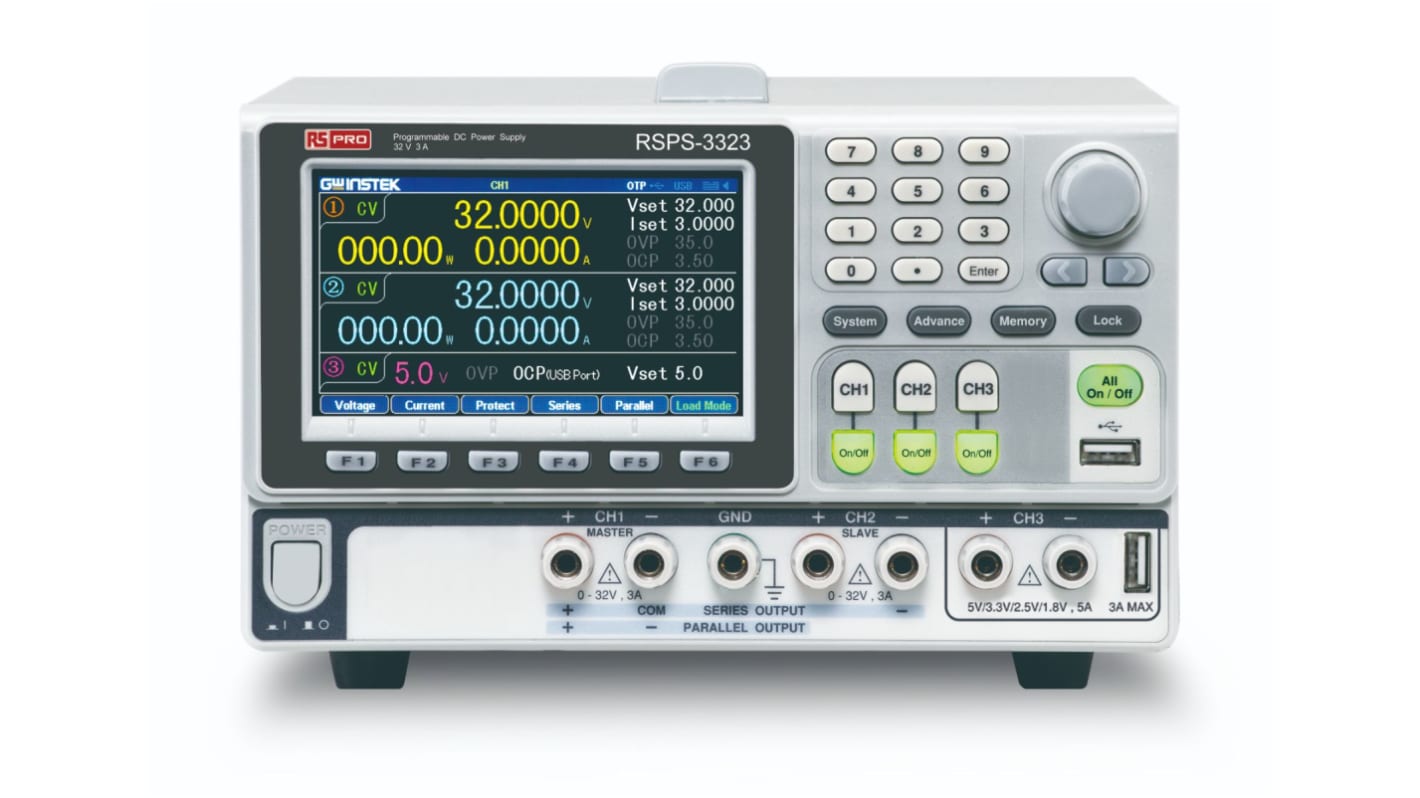

RS PRO Multi-Output Programmable D.C Power Supply

From RS PRO this is the multi-output programmable DC bench power supply with 3-channel output, CH1 – 0 ∼ 33V/0 ∼ 3A, CH2 – 0 ∼ 32V/0 ∼ 3V, CH3 1.8V, 2.5V, 3.3V, 5.0V/5A. The RS PRO bench power supplies are made to industry standards plus provide excellent solutions for your electronics and power projects. You are also provided with high program and read back resolution plus optimal low-ripple noise, output transient recovery capability, and independent output On-Off switch for each channel. This range of RS PRO multi-output programmable power supplies have a wealth of features and functions from the 4.3-inch LCD display to supporting setting and measurement values including waveform display and much more.

Features & Benefits

4.3-inch TFT LCD display

Setting value, measurement value, output waveform display support

CC, CV, CR Mode load function

Setting resolution 1mV/0.1mA, read back resolution 0.1m/V/0.1mA

Low ripple noise

Transient response time

Utilizes hardware realising over voltage, over current and, over temperature protection

Delay, output monitoring, and output recorder function

Intelligent temperature control fan reducing noise

sequential output function, built-in 8 template wave forms

Output recorder function

10-Sets of memory for each sequence, delay, recorder, panel setting condition

Supports a USB – Type A output terminal

Standard RS 232, USB, Ext I/O

Applications

Schools and research institutes

Energy storage device industries

Semiconductor industries

Consumer electronics industries

What is Included

1 x Power cord

1 x User manual

3 x Test leads GTL-104

European test leads GTL-204A x 3, GTL-201A x 1

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Model Number	GPP-3323
	Number of Outputs	3
	Calibrated	RSCAL
	Output Voltage	0 → 32V
	Output Current	3A
	Power Rating	420W
	Type	Analogue, Digital
	Bench Power Supply Type	Programmable DC Power Supply
	Digital/Analogue	Digital
	Minimum Temperature	0°C
	Maximum Temperature	40°C

	Select all
	Brand RS PRO
	Model Number GPP-3323
	Number of Outputs 3
	Calibrated RSCAL
	Output Voltage 0 → 32V
	Output Current 3A
	Power Rating 420W
	Type Analogue, Digital
	Bench Power Supply Type Programmable DC Power Supply
	Digital/Analogue Digital
	Minimum Temperature 0°C
	Maximum Temperature 40°C
