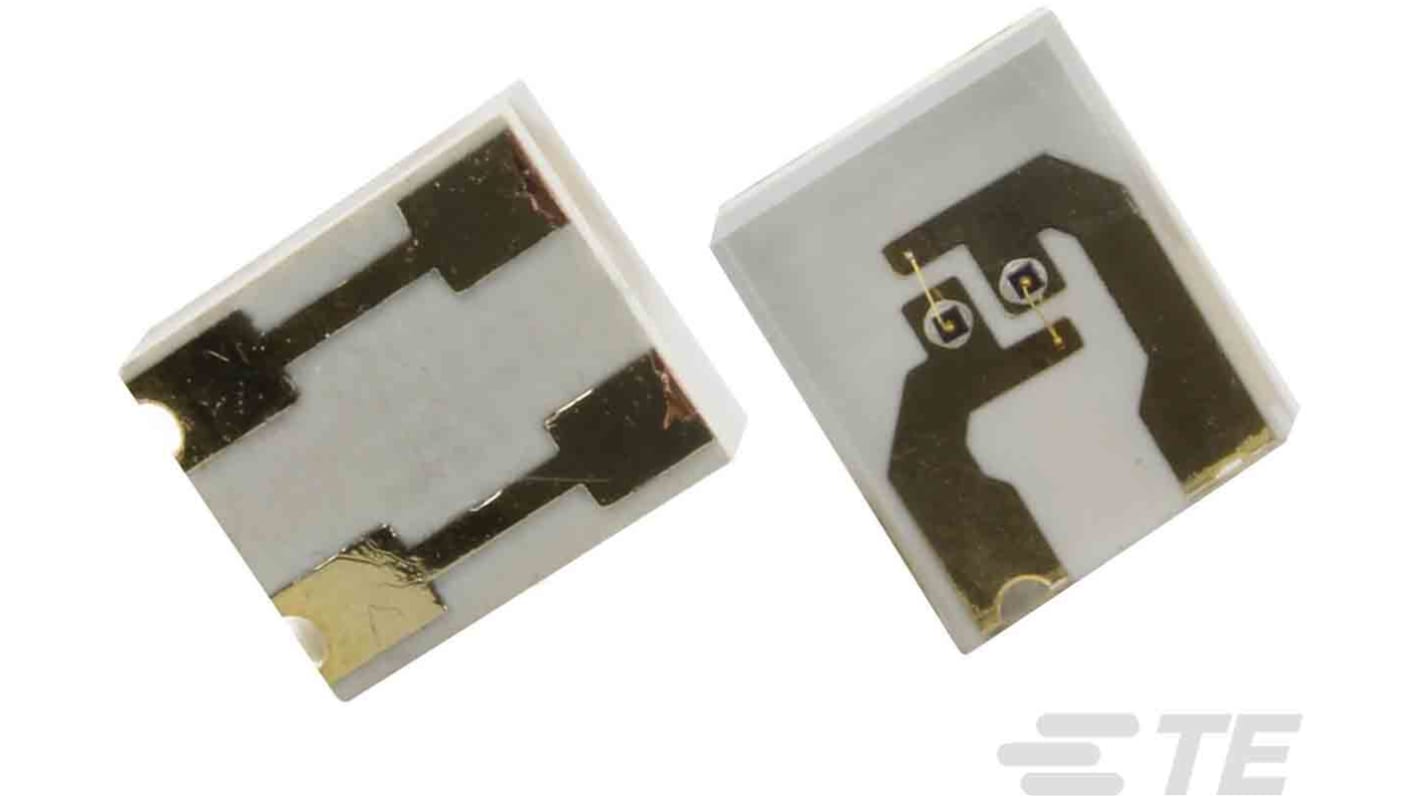

TE Connectivity Biometric Sensor, 2-Pin
- RS Stock No.:
- 197-5281
- Mfr. Part No.:
- 10104019-20
- Manufacturer:
- TE Connectivity
Stock information currently inaccessible
- RS Stock No.:
- 197-5281
- Mfr. Part No.:
- 10104019-20
- Manufacturer:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Biometric Sensor | |
| Sensor Technology | Optical | |
| Output Type | Analogue | |
| Series | EPM-5001 | |
| Mount Type | Surface | |
| Pin Count | 2 | |
| Minimum Supply Voltage | 0.7V | |
| Maximum Operating Temperature | 80°C | |
| Maximum Supply Voltage | 33V | |
| Minimum Operating Temperature | -20°C | |
| Standards/Approvals | No | |
| Height | 1.3mm | |
| Length | 4.8mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Biometric Sensor | ||
Sensor Technology Optical | ||
Output Type Analogue | ||
Series EPM-5001 | ||
Mount Type Surface | ||
Pin Count 2 | ||
Minimum Supply Voltage 0.7V | ||
Maximum Operating Temperature 80°C | ||
Maximum Supply Voltage 33V | ||
Minimum Operating Temperature -20°C | ||
Standards/Approvals No | ||
Height 1.3mm | ||
Length 4.8mm | ||
Automotive Standard No | ||
TE Connectivity’s EPM-5001 series SMT optical detector assembly provides leading accuracy in oxygen level detection. This detector assembly uses a silicon planar diffused photodiode specially designed for medical applications. The EPM-5001 detector assembly is spectrally matched to emitter assemblies ELM-5001 and ELM-5002.
Fast Response
Matched to 660nm Emitter
High Efficiency
Clear Epoxy Lens
Compact Package
Active Area: 8.07mm2
