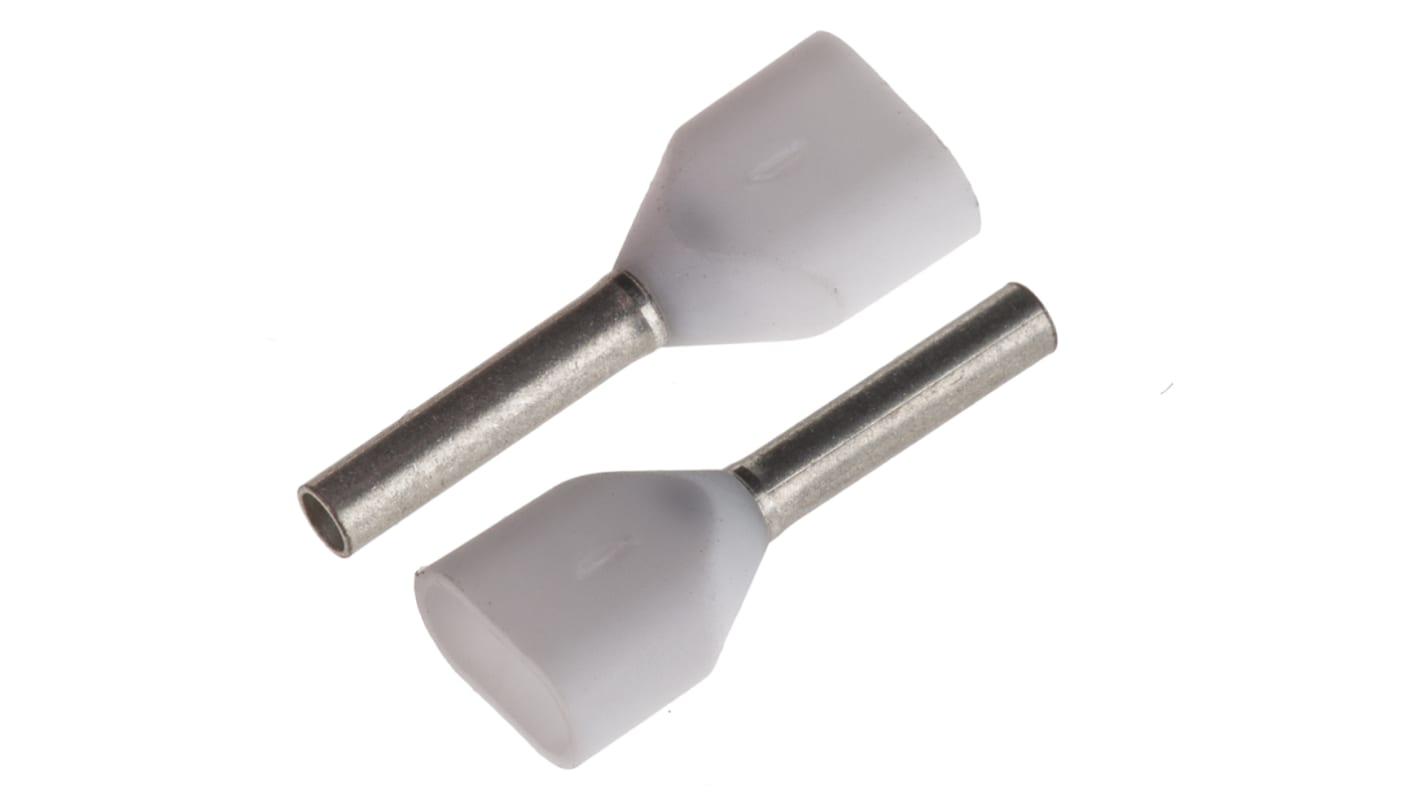

JST, TWE Insulated Crimp Bootlace Ferrule, 8mm Pin Length, 1.5mm Pin Diameter, 2 x 0.5mm² Wire Size, White
- RS Stock No.:
- 122-5205
- Mfr. Part No.:
- TWE0.5-8
- Manufacturer:
- JST
200 Within 1 working day(s) (IE stock)
300 Within 2 working day(s) (EU stock)
Added
Price Each (In a Bag of 100)
€0.134
(exc. VAT)
€0.165
(inc. VAT)
| Units | Per unit | Per Bag* |
| 100 - 100 | €0.134 | €13.40 |
| 200 - 200 | €0.13 | €13.00 |
| 300 + | €0.125 | €12.50 |
| *price indicative | ||
- RS Stock No.:
- 122-5205
- Mfr. Part No.:
- TWE0.5-8
- Manufacturer:
- JST
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
JST Twin Entry Insulated Bootlace Ferrule Crimp Terminals
A range of industrial standard insulated bootlace ferrule crimp terminals with a twin cable entry. These insulated bootlace ferrule crimp terminals are made from oxygen free copper which is both robust and highly conductive with excellent mechanical and electrical characteristics. The terminals are then electroplated with tin and treated by a special process developed by JST. This method ensures that there is maximum adhesion of the electroplating, reduces electrical resistance and increases resistance to corrosion. The insulation of these bootlace crimp ferrules is made from polypropylene with excellent flame resistance and insulation properties. These insulated bootlace crimp ferrules are available in various wire sizes.
JST Bootlace Ferrules
Specifications
Attribute | Value |
|---|---|
| Maximum Wire Size mm² | 2 x 0.5mm² |
| Pin Diameter | 1.5mm |
| Number of Entries | 2 |
| Insulation Material | PP |
| Colour | White |
| Pin Length | 8mm |
| Insulation | Insulated |
| Maximum Wire Size AWG | 2 x 20AWG |
| Overall Length | 16mm |
| Series | TWE |
