ebm-papst D2E 133 Series Centrifugal Centrifugal Fan, 230V ac, 710 m³/h, AC Operation 198 mm x 171.5mm x 254 mm
- RS Stock No.:
- 233-9451
- Distrelec Article No.:
- 303-99-365
- Mfr. Part No.:
- D2E133-AM47-23
- Manufacturer:
- ebm-papst

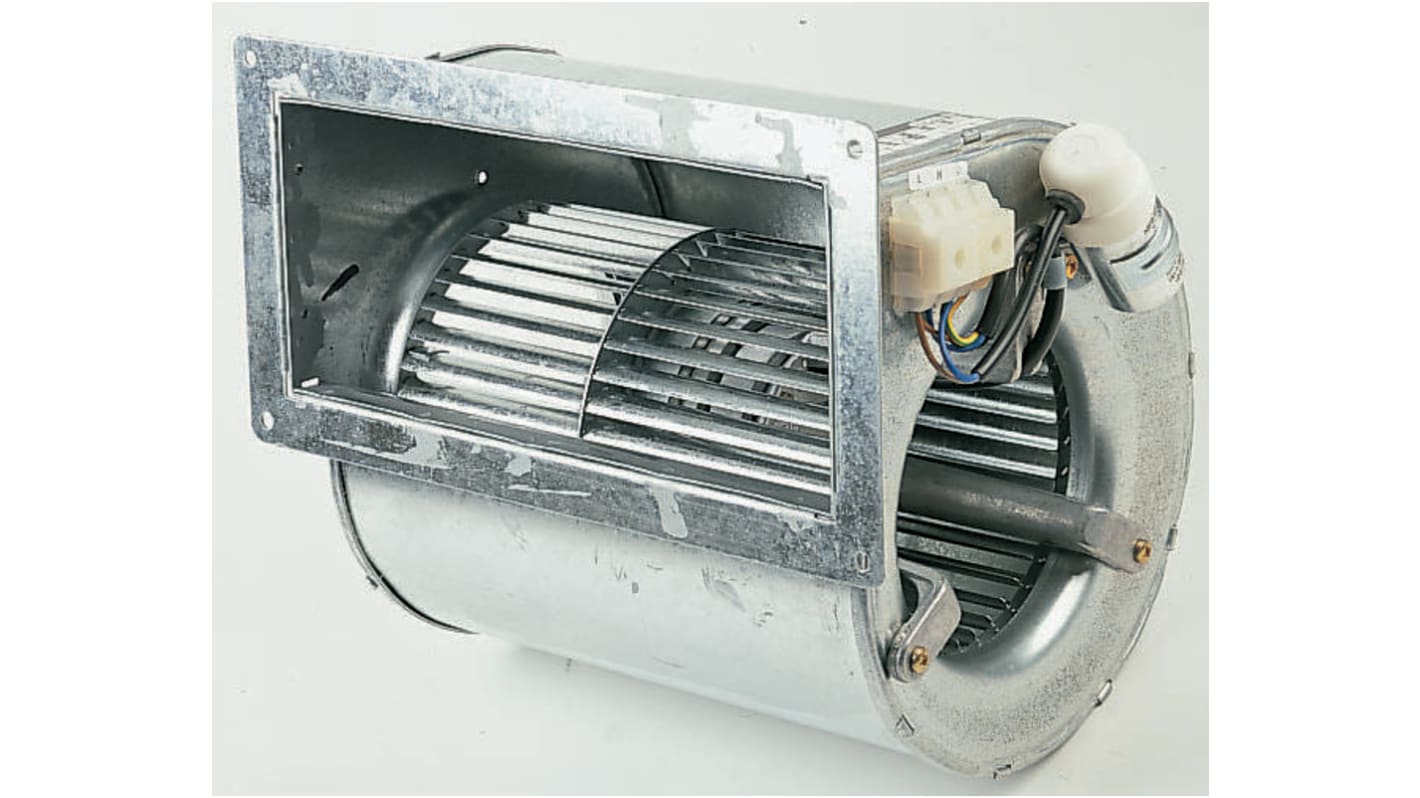

Image representative of range
Bulk discount available
Subtotal (1 unit)*
€444.49
(exc. VAT)
€546.72
(inc. VAT)
In Stock
- 13 unit(s) ready to ship from another location
- Plus 27 unit(s) shipping from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | €444.49 |
| 5 - 9 | €388.93 |
| 10 - 19 | €361.82 |
| 20 + | €349.37 |
*price indicative
- RS Stock No.:
- 233-9451
- Distrelec Article No.:
- 303-99-365
- Mfr. Part No.:
- D2E133-AM47-23
- Manufacturer:
- ebm-papst
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ebm-papst | |
| Supply Voltage | 230V ac | |
| Product Type | Centrifugal Fan | |
| Blower Type | Centrifugal | |
| AC or DC Operation | AC | |
| Air Flow | 710m³/h | |
| Series | D2E 133 | |
| Width | 171.5mm | |
| Terminal Type | Brass Lead Tips Crimped | |
| Fan Speed | 1800rpm | |
| Noise Level | 59dB | |
| Bearing Type | Ball | |
| Standards/Approvals | EN, CCC, GOST, CE, RoHS, ISO | |
| Depth | 254mm | |
| Height | 198mm | |
| Commutation Type | Electronic | |
| Maximum Current | 0.88A | |
| IP Rating | IP44 | |
| Static Pressure | 375Pa | |
| Mounting Hole Diameter | 92 mm | |
| Select all | ||
|---|---|---|
Brand ebm-papst | ||
Supply Voltage 230V ac | ||
Product Type Centrifugal Fan | ||
Blower Type Centrifugal | ||
AC or DC Operation AC | ||
Air Flow 710m³/h | ||
Series D2E 133 | ||
Width 171.5mm | ||
Terminal Type Brass Lead Tips Crimped | ||
Fan Speed 1800rpm | ||
Noise Level 59dB | ||
Bearing Type Ball | ||
Standards/Approvals EN, CCC, GOST, CE, RoHS, ISO | ||
Depth 254mm | ||
Height 198mm | ||
Commutation Type Electronic | ||
Maximum Current 0.88A | ||
IP Rating IP44 | ||
Static Pressure 375Pa | ||
Mounting Hole Diameter 92 mm | ||
- COO (Country of Origin):
- DE
ebm-papst Centrifugal Blower
The ebm-papst centrifugal dual inlet, high-performance fan motor blower has an airflow of 710m³/h and a supply voltage rating of 230VAC. This is integrated within the impeller that reduces installation dimensions. It is constructed from die-cast aluminium and is rugged with a long service life. It is 198mm long, 171.5mm wide and 254mm depth. The scroll housing is open on both sides for added efficiency and a reduction in noise level.
Supplied with pre-mounted capacitor and terminal strip.
Note:
To prevent overloading the motor, this blower must be operated against the minimum static pressures.
Features and Benefits
Double width fans with an external rotor motor
Sealed for life
Maintenance free
Class B insulation
Impeller is forward curved multi-vane type
Body is heavy duty, riveted galvanised steel
Ball bearing type and can be mounted in any position
Certifications
CE certified
CCC certified
GOST certified
IP44 rated
EN 60335-1
