ebm-papst D2E 133 Series Centrifugal Centrifugal Fan, 230V ac, 700 m³/h, AC Operation 180 mm x 254mm x 171.5 mm
- RS Stock No.:
- 826-1118
- Distrelec Article No.:
- 304-01-738
- Mfr. Part No.:
- D2E133-AM47-01
- Manufacturer:
- ebm-papst
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
€364.63
(exc. VAT)
€448.49
(inc. VAT)
In Stock
- 21 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | €364.63 |
| 5 - 9 | €319.05 |
| 10 - 19 | €291.71 |
| 20 + | €269.83 |
*price indicative
- RS Stock No.:
- 826-1118
- Distrelec Article No.:
- 304-01-738
- Mfr. Part No.:
- D2E133-AM47-01
- Manufacturer:
- ebm-papst
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ebm-papst | |
| Supply Voltage | 230V ac | |
| Product Type | Centrifugal Fan | |
| Blower Type | Centrifugal | |
| AC or DC Operation | AC | |
| Air Flow | 700m³/h | |
| Series | D2E 133 | |
| Width | 254mm | |
| Fan Speed | 2100rpm | |
| Noise Level | 59dB | |
| Bearing Type | Ball | |
| Depth | 171.5mm | |
| Standards/Approvals | ISO, RoHS, EN, CE, CCC, EAC | |
| Height | 180mm | |
| IP Rating | IP44 | |
| Commutation Type | Electronic | |
| Maximum Current | 900mA | |
| Static Pressure | 375Pa | |
| Mounting Hole Diameter | 5.5 mm | |
| Select all | ||
|---|---|---|
Brand ebm-papst | ||
Supply Voltage 230V ac | ||
Product Type Centrifugal Fan | ||
Blower Type Centrifugal | ||
AC or DC Operation AC | ||
Air Flow 700m³/h | ||
Series D2E 133 | ||
Width 254mm | ||
Fan Speed 2100rpm | ||
Noise Level 59dB | ||
Bearing Type Ball | ||
Depth 171.5mm | ||
Standards/Approvals ISO, RoHS, EN, CE, CCC, EAC | ||
Height 180mm | ||
IP Rating IP44 | ||
Commutation Type Electronic | ||
Maximum Current 900mA | ||
Static Pressure 375Pa | ||
Mounting Hole Diameter 5.5 mm | ||
- COO (Country of Origin):
- DE

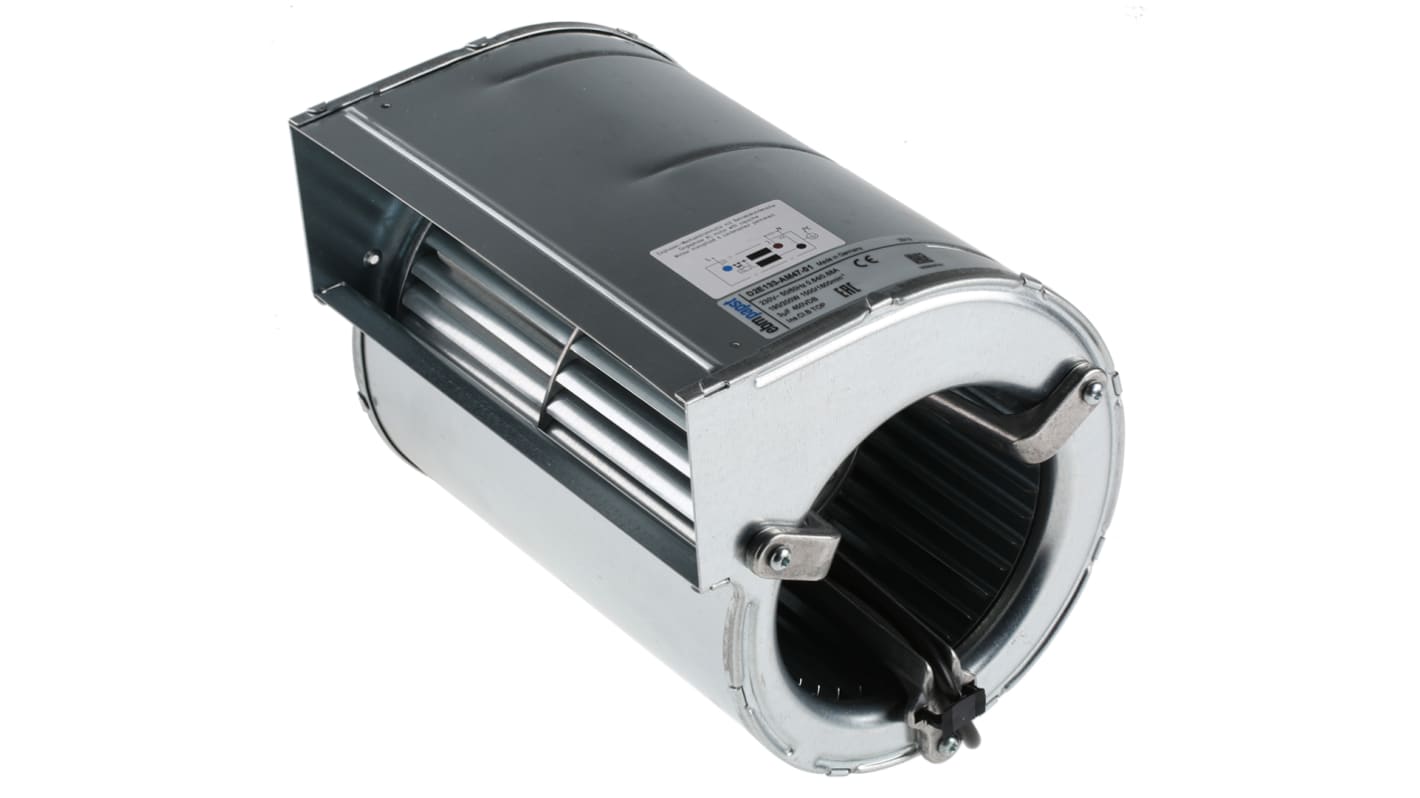

ebm-papst Centrifugal Blower
The ebm-papst centrifugal dual inlet, high-performance fan motor blower has an airflow of 700m³/h and a supply voltage rating of 230VAC. This is integrated within the impeller that reduces installation dimensions. It is constructed from die-cast aluminium and is rugged with a long service life. It is 180mm long, 171.5mm wide and 254mm depth. The scroll housing is open on both sides for added efficiency and a reduction in noise level.
Note:
To prevent overloading the motor, this blower must be operated against the minimum static pressures.
Features and Benefits
Double width fans with an external rotor motor
Sealed for life
Maintenance free
Class B insulation
Impeller is forward curved multi-vane type
Body is heavy duty, riveted galvanised steel
Ball bearing type and can be mounted in any position
Certifications
CE certified
CCC certified
GOST certified
IP44 rated
EN 60335-1
