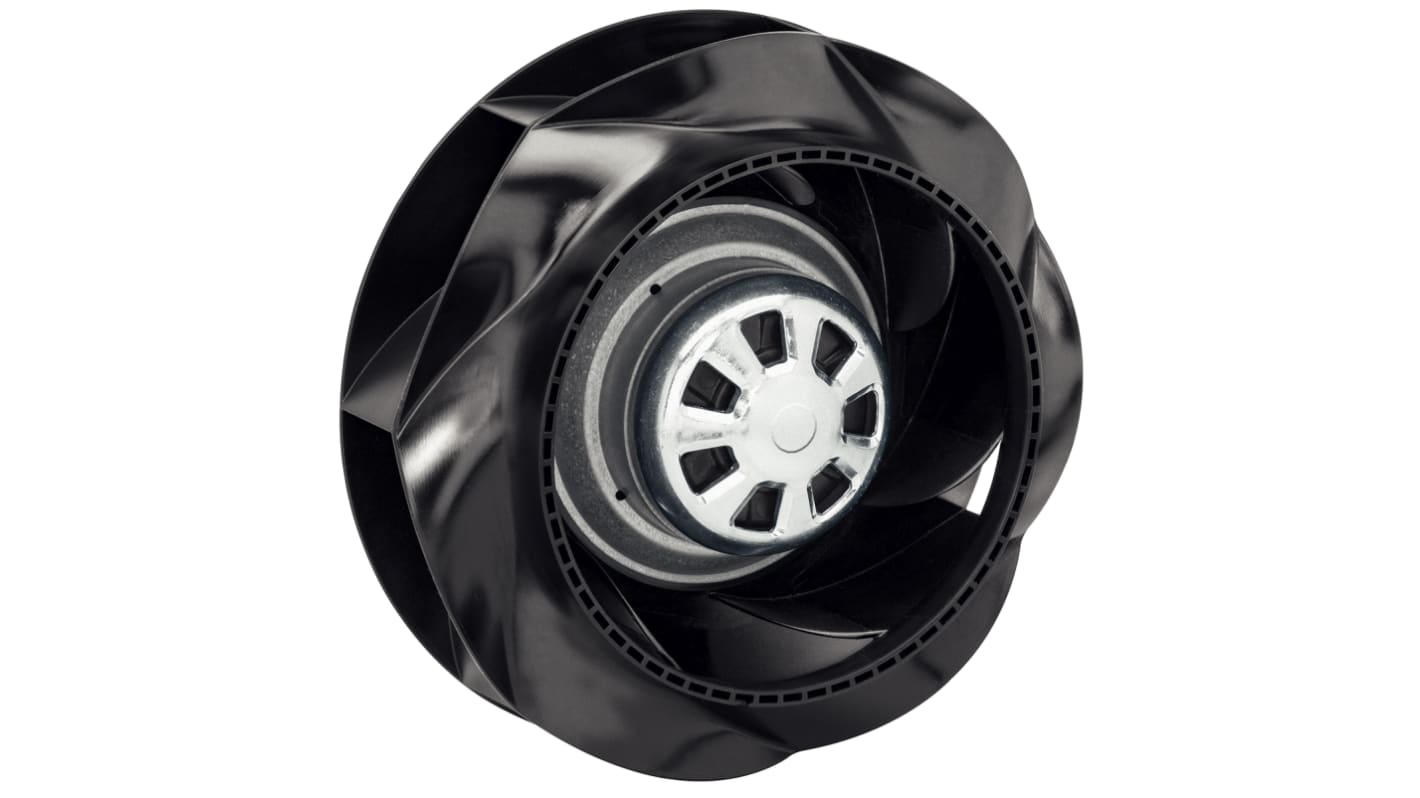

ebm-papst RadiCal Series Centrifugal Fan, 230 V ac, 1290m³/h, AC Operation, 220 (Dia.) x 90mm
- RS Stock No.:
- 802-9444
- Mfr. Part No.:
- R3G220-RD53-03
- Manufacturer:
- ebm-papst
9 In stock for delivery within 2 working days
Added
Price Each
€382.18
(exc. VAT)
€470.08
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €382.18 |
| 5 - 9 | €334.42 |
| 10 - 19 | €305.74 |
| 20 + | €277.08 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 802-9444
- Mfr. Part No.:
- R3G220-RD53-03
- Manufacturer:
- ebm-papst
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
ebm-papst EC Centrifugal Fan
The ebm-papst centrifugal fan has an airflow of 1290m³/h (for 50Hz) at a fan speed of 3230rpm and has a supply voltage rating of 230VAC. It is an electronically commutated motor fan with an external rotor motor. This double inlet centrifugal fan is integrated within the impeller that reduces installation dimensions. The fan is featured with backwards-curved blades. It is an ideal solution for a wide range of applications and also suitable for intake suction use. The scroll housing is open on both the sides for added efficiency and reduction in noise level. The robust and space-saving design of this ebm-papst centrifugal fan makes it versatile and easy to use. The fan is 220mm wide and 92mm deep.
Features and Benefits
Low-pressure centrifugal solutions
Fitted with highly efficient GreenTech EC motor
Aerodynamic shape reduces noise emissions
Hybrid construction makes impellers highly corrosion-resistant
EC control options available
Fitted with highly efficient GreenTech EC motor
Aerodynamic shape reduces noise emissions
Hybrid construction makes impellers highly corrosion-resistant
EC control options available
Applications
Control cabinet cooling
In-line duct fans
Home ventilation units
Heat pumps
In-line duct fans
Home ventilation units
Heat pumps
Certifications
IP54 rated
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 230 V ac |
| Blower Type | Centrifugal |
| AC or DC Operation | AC |
| Air Flow | 1290m³/h |
| Series | RadiCal |
| Width | 220 (Dia.)mm |
| Depth | 92mm |
| Dimensions | 220 (Dia.) x 90mm |
| Fan Speed | 3230rpm |
| Bearing Type | Ball |
| Better World Product | Yes |
| Commutation Type | Electronic |
| Better World Claim | Saves energy |
| Direction of Curve | Backward |
| IP Rating | IP54 |
