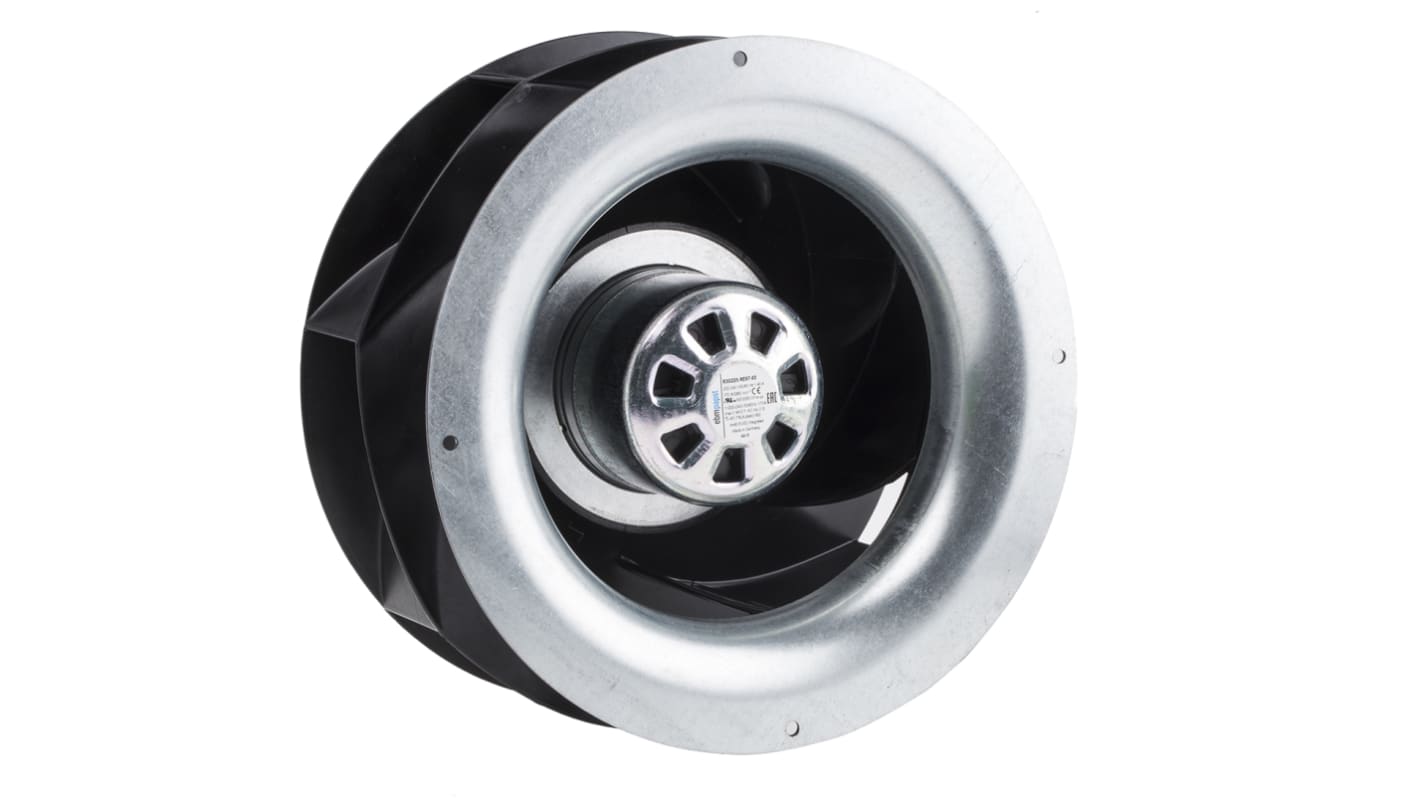

ebm-papst RadiCal Series Centrifugal Centrifugal Fan, 230 V ac, 130 m³/h, AC Operation x 220 mm x 99 mm
- RS Stock No.:
- 802-9453
- Distrelec Article No.:
- 303-76-265
- Mfr. Part No.:
- R3G225-RE07-03
- Manufacturer:
- ebm-papst
Bulk discount available
Subtotal (1 unit)*
€539.75
(exc. VAT)
€663.89
(inc. VAT)
In Stock
- 17 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | €539.75 |
| 5 - 9 | €537.05 |
| 10 - 19 | €507.90 |
| 20 + | €478.75 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 802-9453
- Distrelec Article No.:
- 303-76-265
- Mfr. Part No.:
- R3G225-RE07-03
- Manufacturer:
- ebm-papst
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ebm-papst | |
| Supply Voltage | 230 V ac | |
| Product Type | Centrifugal Fan | |
| Blower Type | Centrifugal | |
| AC or DC Operation | AC | |
| Air Flow | 130m³/h | |
| Series | RadiCal | |
| Width | 220 mm | |
| Fan Speed | 2860rpm | |
| Sensor Output Type | PWM | |
| Noise Level | 66dBA | |
| Bearing Type | Ball | |
| Depth | 99mm | |
| Standards/Approvals | CCC, EN, RoHS, EAC, UL, ISO, CSA | |
| Maximum Current | 1.4A | |
| Static Pressure | 458Pa | |
| Better World Claim | Saves Energy | |
| Better World Product | Yes | |
| IP Rating | IP54 | |
| Commutation Type | Electronic | |
| Special Features | Locked Rotor Protection | |
| Select all | ||
|---|---|---|
Brand ebm-papst | ||
Supply Voltage 230 V ac | ||
Product Type Centrifugal Fan | ||
Blower Type Centrifugal | ||
AC or DC Operation AC | ||
Air Flow 130m³/h | ||
Series RadiCal | ||
Width 220 mm | ||
Fan Speed 2860rpm | ||
Sensor Output Type PWM | ||
Noise Level 66dBA | ||
Bearing Type Ball | ||
Depth 99mm | ||
Standards/Approvals CCC, EN, RoHS, EAC, UL, ISO, CSA | ||
Maximum Current 1.4A | ||
Static Pressure 458Pa | ||
Better World Claim Saves Energy | ||
Better World Product Yes | ||
IP Rating IP54 | ||
Commutation Type Electronic | ||
Special Features Locked Rotor Protection | ||
- COO (Country of Origin):
- DE
ebm-papst RadiCal EC Centrifugal Fans
The ebm-papst RadiCal backward curved EC fan offers higher performance for less power.
• Low-pressure centrifugal solutions
• Fitted with highly efficient GreenTech EC motor
• Aerodynamic shape reduces noise emissions
• Hybrid construction makes impellers highly corrosion-resistant
• EC control options available
Applications
RadiCal centrifugal fans are used in many ventilation and air-conditioning applications. These applications include
• Control cabinet cooling
• In-line duct fans
• Home ventilation units
• Heat pumps
Supplied with
Inlet ring
