Select all	Attribute	Value
	Brand	Megger
	Absolute Maximum AC Current Measurement	300A ac
	Model Number	DCM300E
	Calibrated	RSCAL
	AC Current Measurement Resolution	10µA
	Clamp Meter Type	Leakage Clamp Meter
	Best AC Current Accuracy	±5% +5 digits
	Functions Measured	AC Current
	True RMS	No
	Jaw Capacity Busbars	32mm
	Display Type	LCD
	Dimensions	23 x 64 x 176mm
	Battery Type	LR44
	Safety Category Voltage	500 V, 600V
	Length	23mm
	Width	64mm
	Power Source	Battery
	Battery Life	50 h
	Minimum Operating Temperature	0°C
	Height	176mm
	AC Current Measurement Range	0 → 300 A
	Safety Category Level	CAT II, CAT III
	Weight	125g
	Maximum Operating Temperature	+40°C
	Safety Category	CAT II 600 V, CAT III 500V

	Select all
	Brand Megger
	Absolute Maximum AC Current Measurement 300A ac
	Model Number DCM300E
	Calibrated RSCAL
	AC Current Measurement Resolution 10µA
	Clamp Meter Type Leakage Clamp Meter
	Best AC Current Accuracy ±5% +5 digits
	Functions Measured AC Current
	True RMS No
	Jaw Capacity Busbars 32mm
	Display Type LCD
	Dimensions 23 x 64 x 176mm
	Battery Type LR44
	Safety Category Voltage 500 V, 600V
	Length 23mm
	Width 64mm
	Power Source Battery
	Battery Life 50 h
	Minimum Operating Temperature 0°C
	Height 176mm
	AC Current Measurement Range 0 → 300 A
	Safety Category Level CAT II, CAT III
	Weight 125g
	Maximum Operating Temperature +40°C
	Safety Category CAT II 600 V, CAT III 500V

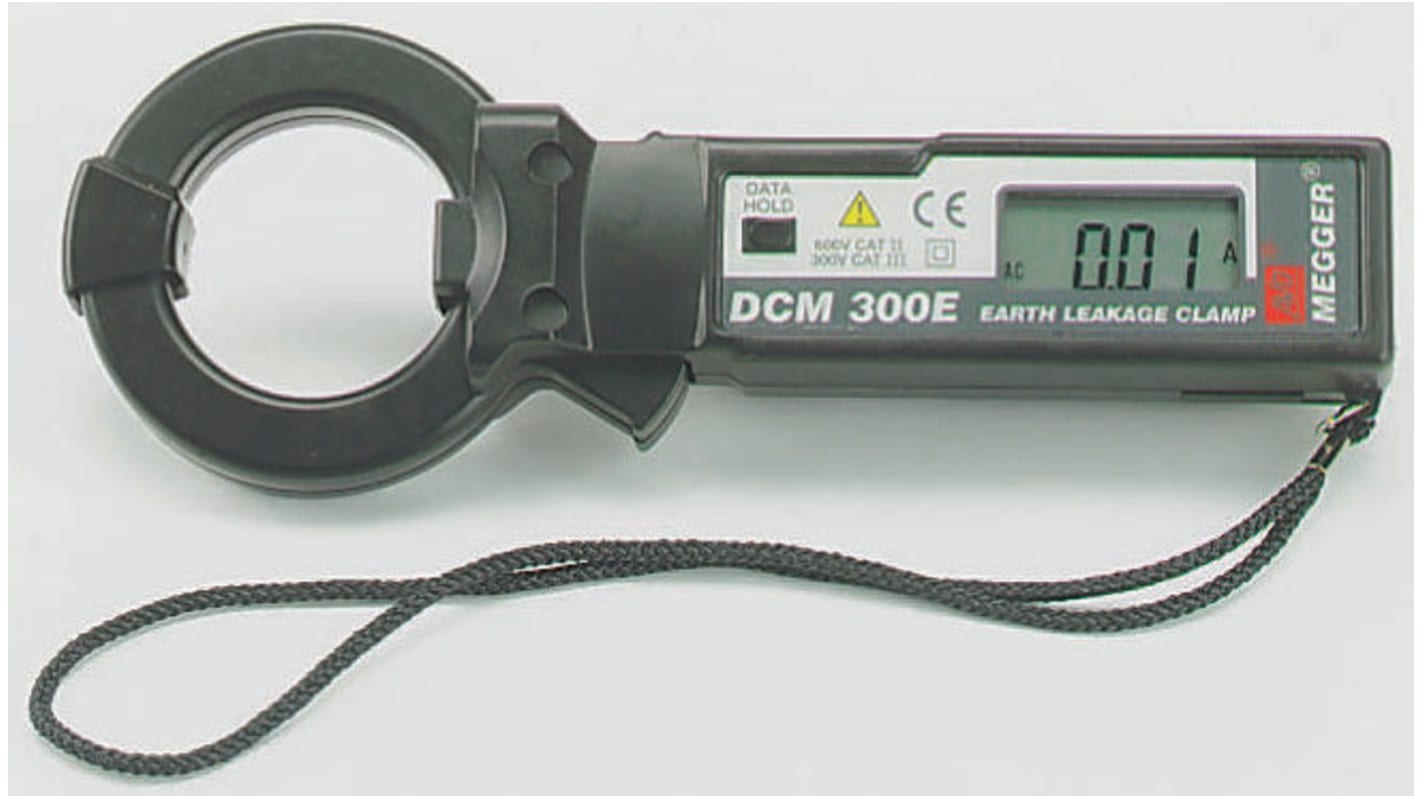

Megger DCM300E Clamp Meter, Max Current 300A ac CAT II 600V With RS Calibration

AVO DCM 300E

Supplied with

Megger DCM300E Clamp Meter, 0.01mA Resolution, 40mm Jaw Size

Features & Benefits

Applications

Does this clamp meter switch itself off?
