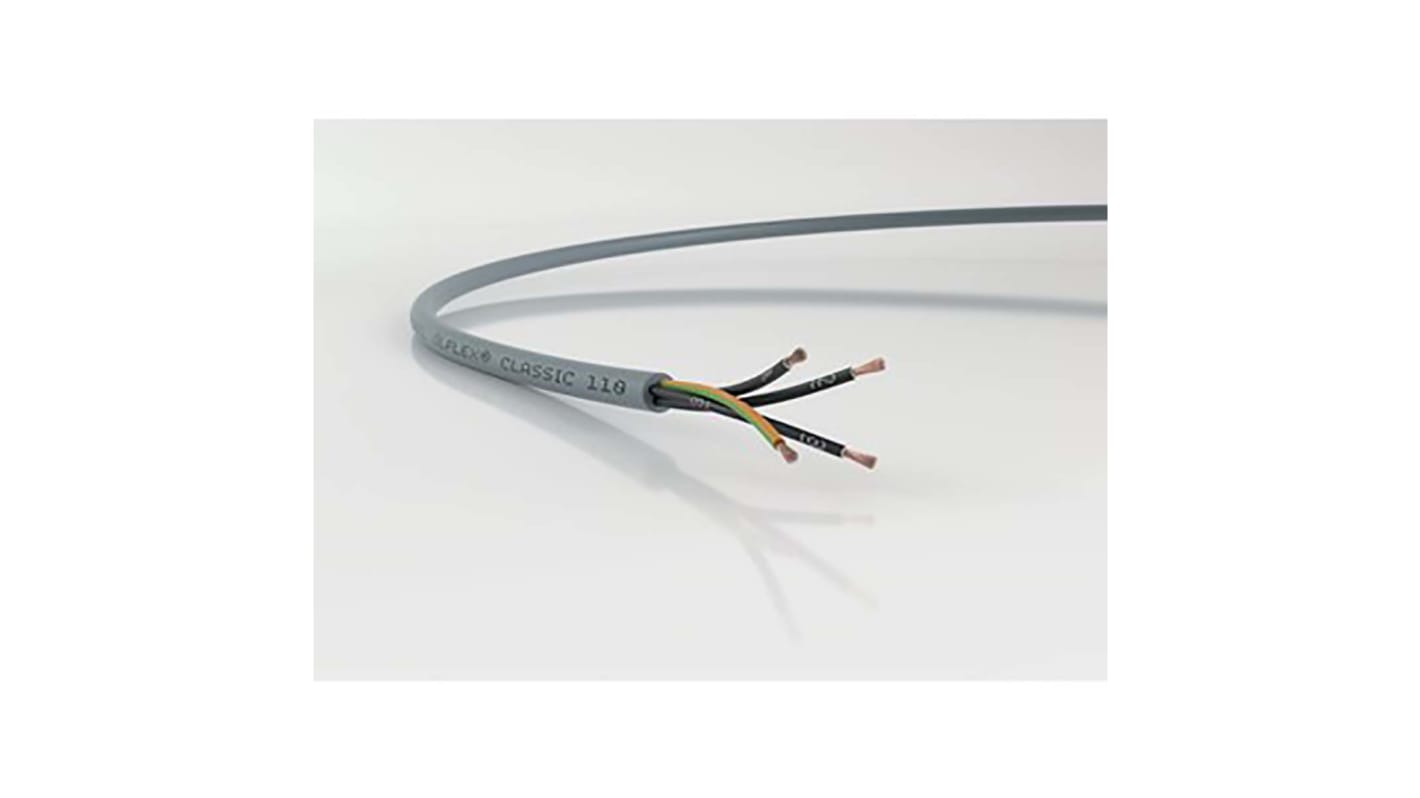

Lapp ÖLFLEX CLASSIC 110 Control Cable, 12 Cores, 1 mm², YY, Unscreened, 50m, Grey PVC Sheath, 17 AWG
- RS Stock No.:
- 141-160
- Mfr. Part No.:
- 1119212
- Manufacturer:
- Lapp
29 In stock for delivery within 2 working days
Price 1 Reel of 50 Metre(s)
€265.34
(exc. VAT)
€326.37
(inc. VAT)
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | €265.34 | €5.307 |
*price indicative
- RS Stock No.:
- 141-160
- Mfr. Part No.:
- 1119212
- Manufacturer:
- Lapp
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
LAPP Control Cable, 12 Cores, 17AWG - ÖLFLEX Series - 1119212
This multicore cable from LAPP provides a connection solution for your control and instrumentation devices in commercial and industrial applications. Its copper conductors have low electrical resistance, so you can rely on them for a reliable connection. As this is a YY type cable, both its outer sheath and insulation are made of PVC. This material offers strong resistance to heat and impact, so it's a good choice for use in harsh environments. A 50m length means you have enough for a large-scale installation or you can cut it to size for smaller jobs.
Features & Benefits
• 12 cores for multi-signal transmission
• Working rating of 300/500V for use in low-voltage applications
• Minimum bending radius of 15 times the cable's outer diameter for flexible installation around corners
• Earth cable drains excess current to the ground for electrical safety
• Current rating of 15A for use with high-current systems
• Working rating of 300/500V for use in low-voltage applications
• Minimum bending radius of 15 times the cable's outer diameter for flexible installation around corners
• Earth cable drains excess current to the ground for electrical safety
• Current rating of 15A for use with high-current systems
Applications
• Bottling plants
• Automated production facilities
• Machine tool engineering
• Automated production facilities
• Machine tool engineering
What temperature range does this cable have?
This cable has an operating temperature range of -30°C to +80°C, so you use it safely in demanding industrial environments.
Standards
VDE 0295, Part 5
Specifications
Attribute | Value |
|---|---|
| Series | ÖLFLEX CLASSIC 110 |
| Number of Cores | 12 |
| Cross Sectional Area | 1 mm² |
| Screened/Unscreened | Unscreened |
| Length | 50m |
| Control Cable Type | YY |
| Sheath Colour | Grey |
| American Wire Gauge | 17 AWG |
| CPR Certification | Eca |
| Outer Diameter | 10.5mm |
| Sheath Material | PVC |
| Earth Cable | Yes |
| Conductor Resistance | 19.5 Ω/km |
| Insulation Material | PVC |
| Minimum Operating Temperature | -40°C |
| Current Rating | 15 A |
| Maximum Operating Temperature | +80°C |
| Core Strands | 32/0.2 mm |
| Voltage Rating | 300/500 V |
| Minimum Bend Radius | Fixed - 4 x D Occasional flexing - 10 x D |
| Conductor Material | Copper |
| Filler Material | Non-Wicking Filler |
| Oil Resistant | Yes |
