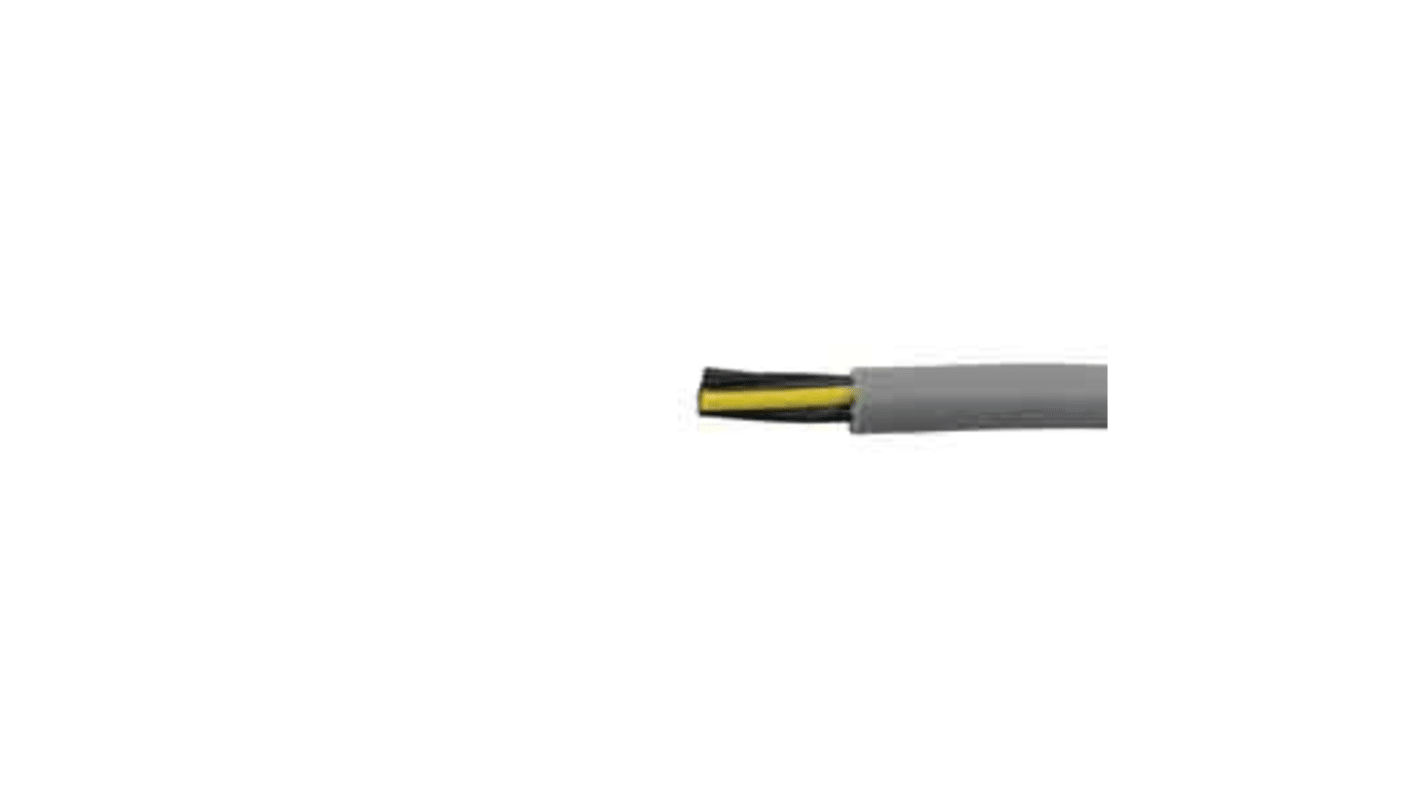

Alpha Wire Pro-Met Control Cable, 2 Cores, 0.5 mm², YY, Unscreened, 50m, Grey PVC Sheath
- RS Stock No.:
- 181-1684
- Mfr. Part No.:
- 470025YY GE321
- Manufacturer:
- Alpha Wire
Subtotal (1 reel of 50 metres)*
€38.69
(exc. VAT)
€47.59
(inc. VAT)
In Stock
- 12 unit(s) ready to ship from another location
- Plus 999,999,987 unit(s) shipping from 03 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | €38.69 | €0.774 |
*price indicative
- RS Stock No.:
- 181-1684
- Mfr. Part No.:
- 470025YY GE321
- Manufacturer:
- Alpha Wire
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Series | Pro-Met | |
| Number of Cores | 2 | |
| Cross Sectional Area | 0.5 mm² | |
| Conductor Material | Bare Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Control Cable Type | YY | |
| Screened/Unscreened | Unscreened | |
| Length | 50m | |
| Outer Diameter | 4.77mm | |
| Minimum Bend Radius | 10 x Cable Diameter (Dynamic), 4 x Diameter (Static) | |
| Voltage Rating | 300/500 V | |
| Standards Met | CE Certified, DIN EN 50290-2-22, DIN VDE 0295 Class 5, EN 60228 Class 5, IEC 60332-1, IEC Certified, REACH EC 1907/2006 | |
| Maximum Operating Temperature | (Dynamic) +70 °C, (Static) +80°C | |
| Fire Behaviour | Flame Retardant | |
| Insulation Material | PVC | |
| Conductor Resistance | 39 Ω/km @ 20°C | |
| Minimum Operating Temperature | (Dynamic) -30 °C, (Static) -40°C | |
| Core Strands | 20/0.177 mm | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Series Pro-Met | ||
Number of Cores 2 | ||
Cross Sectional Area 0.5 mm² | ||
Conductor Material Bare Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Control Cable Type YY | ||
Screened/Unscreened Unscreened | ||
Length 50m | ||
Outer Diameter 4.77mm | ||
Minimum Bend Radius 10 x Cable Diameter (Dynamic), 4 x Diameter (Static) | ||
Voltage Rating 300/500 V | ||
Standards Met CE Certified, DIN EN 50290-2-22, DIN VDE 0295 Class 5, EN 60228 Class 5, IEC 60332-1, IEC Certified, REACH EC 1907/2006 | ||
Maximum Operating Temperature (Dynamic) +70 °C, (Static) +80°C | ||
Fire Behaviour Flame Retardant | ||
Insulation Material PVC | ||
Conductor Resistance 39 Ω/km @ 20°C | ||
Minimum Operating Temperature (Dynamic) -30 °C, (Static) -40°C | ||
Core Strands 20/0.177 mm | ||
