Select all	Attribute	Value
	Brand	RS PRO
	Number of Cores	3
	Cross Sectional Area	1 mm²
	Conductor Material	Annealed Copper
	Sheath Material	PVC
	Control Cable Type	SY
	Sheath Colour	Transparent
	Screen Type	Galvanised Steel
	Screened/Unscreened	Screened
	Armoured	Yes
	Minimum Bend Radius	6 x Diameter
	Length	50m
	Outer Diameter	10.3mm
	Voltage Rating	300/500 V
	Standards Met	BS EN 50525
	CPR Certification	Eca
	Maximum Operating Temperature	+70°C
	Insulation Material	PVC
	Minimum Operating Temperature	-15°C
	Earth Cable	Yes
	Cable Shape	Multicore
	Core Strands	32/0.2 mm
	Bedding Material	PVC

	Select all
	Brand RS PRO
	Number of Cores 3
	Cross Sectional Area 1 mm²
	Conductor Material Annealed Copper
	Sheath Material PVC
	Control Cable Type SY
	Sheath Colour Transparent
	Screen Type Galvanised Steel
	Screened/Unscreened Screened
	Armoured Yes
	Minimum Bend Radius 6 x Diameter
	Length 50m
	Outer Diameter 10.3mm
	Voltage Rating 300/500 V
	Standards Met BS EN 50525
	CPR Certification Eca
	Maximum Operating Temperature +70°C
	Insulation Material PVC
	Minimum Operating Temperature -15°C
	Earth Cable Yes
	Cable Shape Multicore
	Core Strands 32/0.2 mm
	Bedding Material PVC

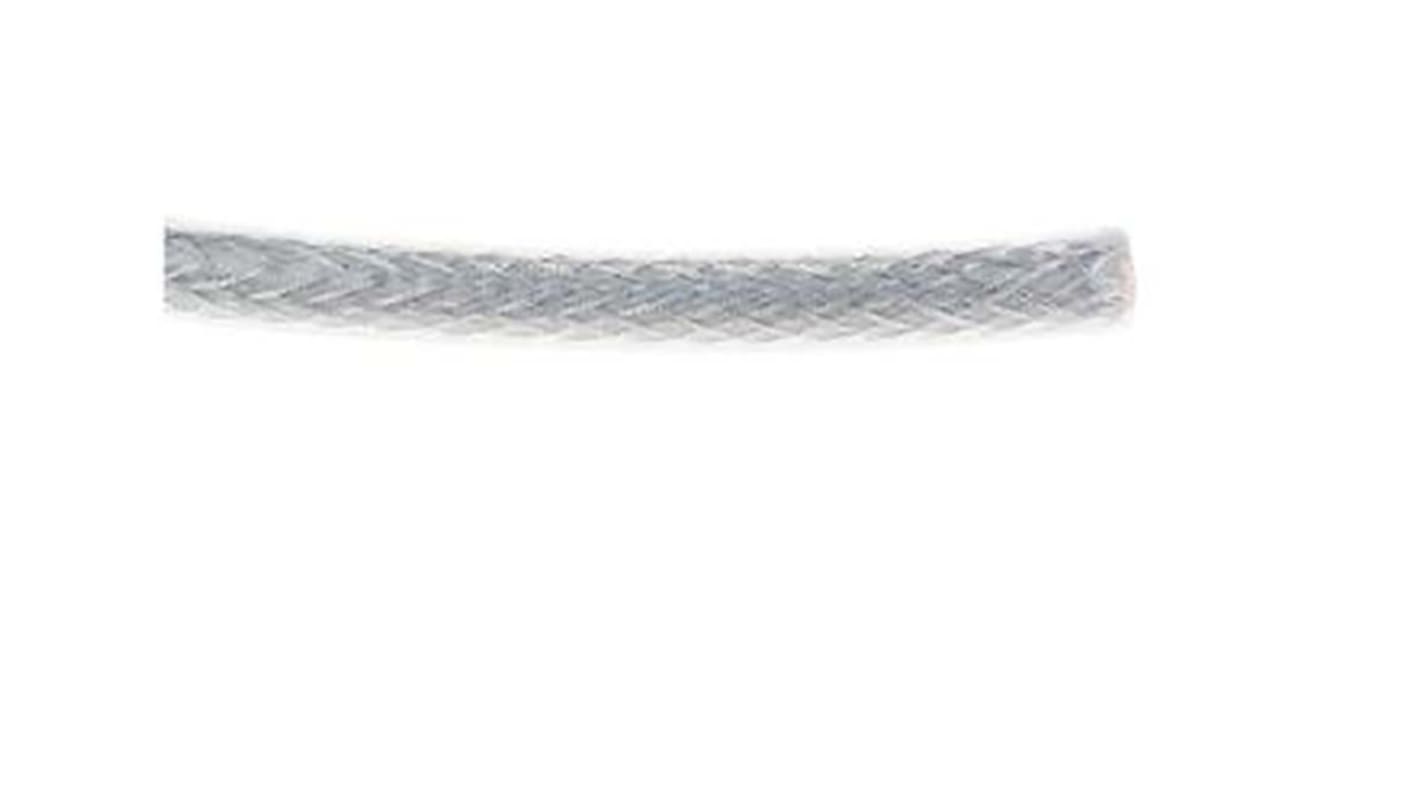

RS PRO Control Cable, 3 Cores, 1 mm², SY, Screened, 50m, Transparent PVC Sheath

RS PRO 3 Core SY Control Cable 1 mm², 50 m, Screened
