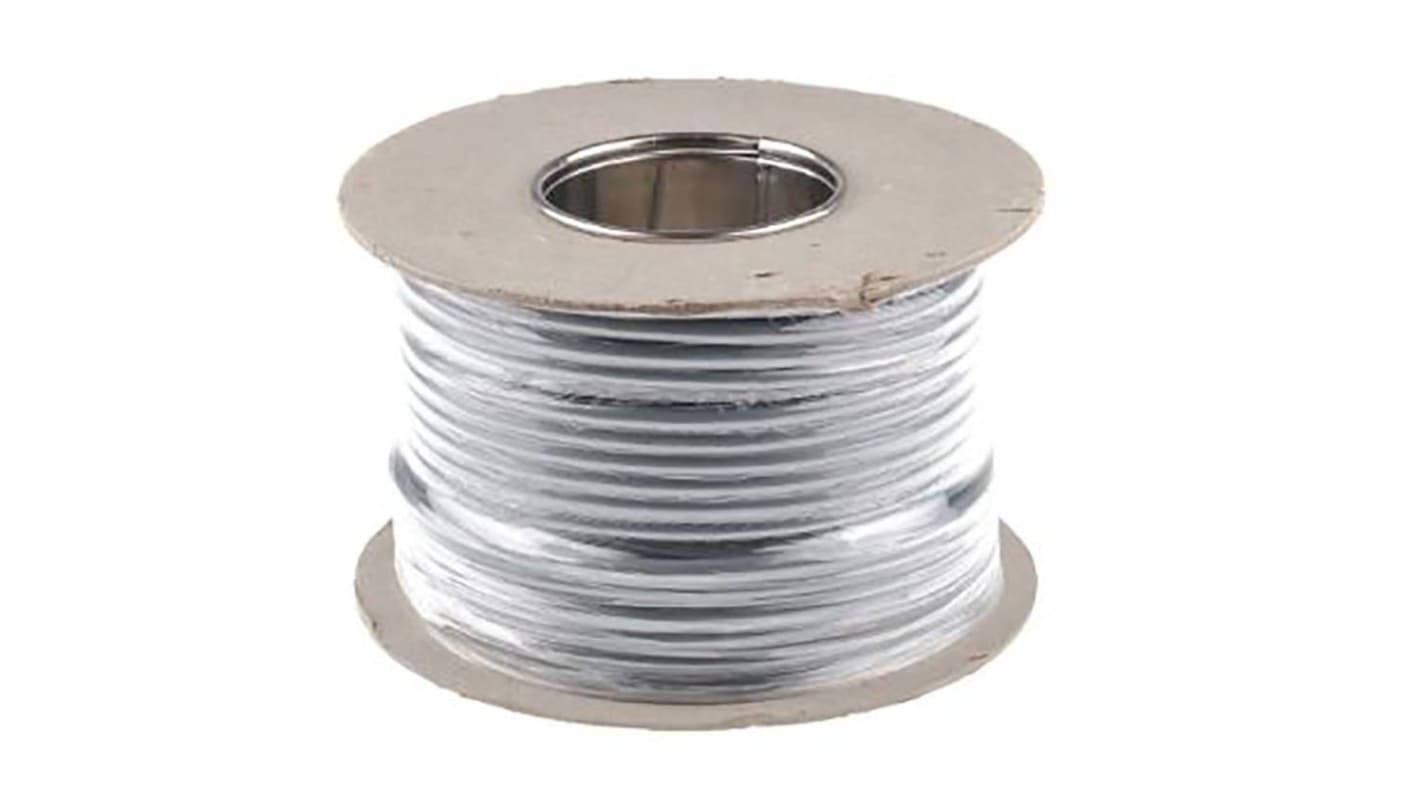

RS PRO Control Cable, 3 Cores, 1.5 mm², YY, Unscreened, 50m, Grey PVC Sheath

Use this RS PRO three-core control cable to link your fixed and mobile appliances such as computer units and equipment in control and assembly lines. The product measures and regulates electricity as well as the simultaneous transfer of analogue or digital signals.
The annealed copper core strands are soft and flexible, which means you can bend and manipulate the cable to reach power supplies and other devices without worrying about the interruption of data signals. The polyvinyl chloride (PVC) insulation prevents thermal build-ups and short circuits that can cause fires.
This item is Restriction of Hazardous Substances (RoHS) compliant, meaning it contains only a minimal amount of any harmful materials. You can use this cable in indoor settings in dry or moist conditions.

• Multicore cable shape
• Annealed copper conductor material
• 30 core strands of 0.25 mm
• Cross-sectional area of 1.5 mm²
• Earth cable
• PVC (polyvinyl chloride) insulation and sheath material
• Length of 50 m
• Minimum operating temperature of -15°C
• Maximum operating temperature of +70°C
• Minimum bend radius of 6 x diameter
• Three cores
• Outer diameter of 8.2 mm
• Galvanised steel screen type
• Unscreened
• Grey sheath colour
• Meets BS EN 50525 standards
• Voltage rating of 300/500 V
