Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX 150
	Number of Cores	5
	Cross Sectional Area	2.5 mm²
	American Wire Gauge	13 AWG
	Conductor Material	Copper
	Sheath Material	PVC
	Sheath Colour	Grey
	Control Cable Type	YY
	Screened/Unscreened	Unscreened
	Screen Type	Unscreened
	Length	50m
	Outer Diameter	12.1mm
	Minimum Bend Radius	4 x Diameter
	Voltage Rating	500 V
	Standards Met	CE, CSA, UL
	CPR Certification	Eca
	Maximum Operating Temperature	+70°C
	Fire Behaviour	Flame Retardant
	Drain Wire	Yes
	Cable Shape	Round
	Minimum Operating Temperature	-40°C
	Insulation Material	PVC
	Oil Resistant	Yes

	Select all
	Brand Lapp
	Series ÖLFLEX 150
	Number of Cores 5
	Cross Sectional Area 2.5 mm²
	American Wire Gauge 13 AWG
	Conductor Material Copper
	Sheath Material PVC
	Sheath Colour Grey
	Control Cable Type YY
	Screened/Unscreened Unscreened
	Screen Type Unscreened
	Length 50m
	Outer Diameter 12.1mm
	Minimum Bend Radius 4 x Diameter
	Voltage Rating 500 V
	Standards Met CE, CSA, UL
	CPR Certification Eca
	Maximum Operating Temperature +70°C
	Fire Behaviour Flame Retardant
	Drain Wire Yes
	Cable Shape Round
	Minimum Operating Temperature -40°C
	Insulation Material PVC
	Oil Resistant Yes

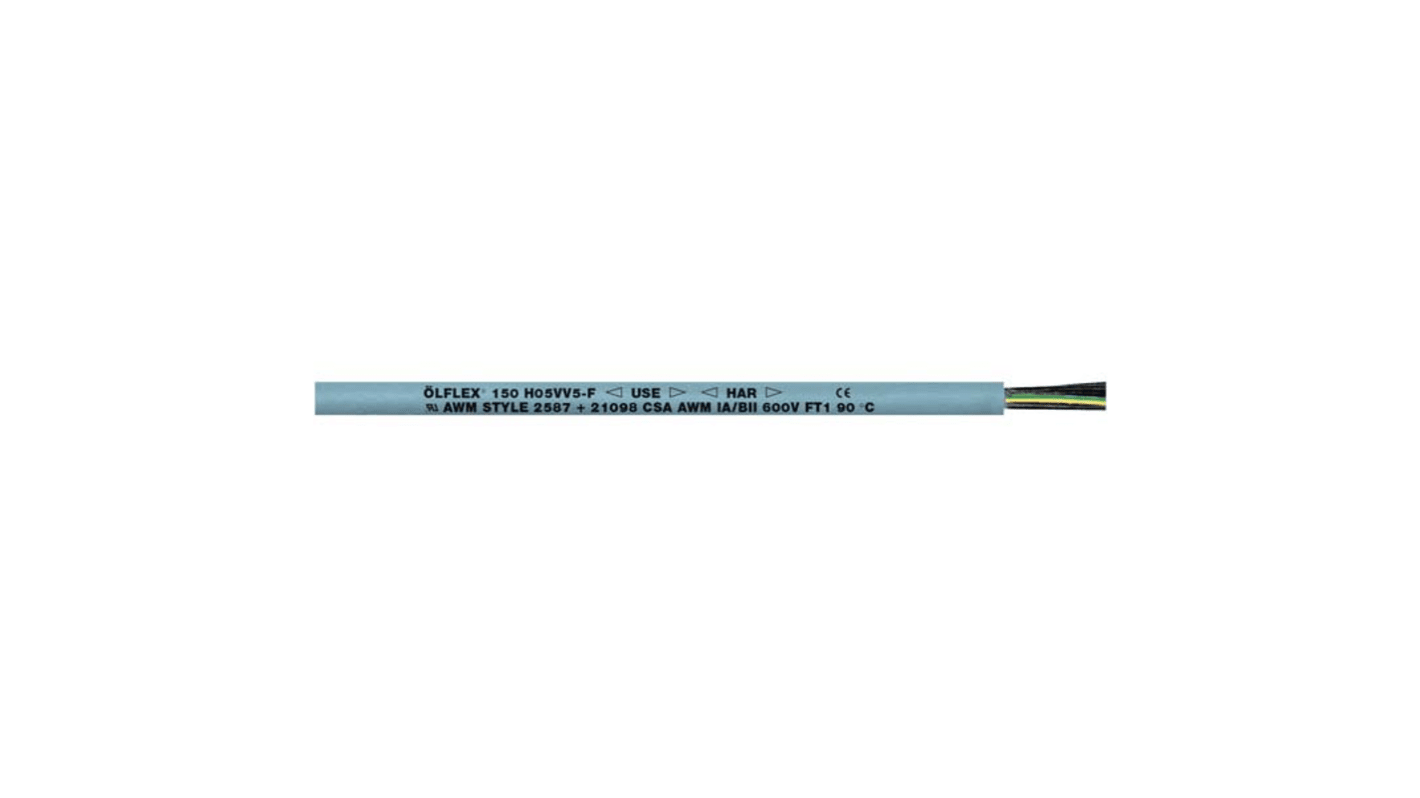

Lapp ÖLFLEX 150 Control Cable, 5 Cores, 2.5 mm², YY, Unscreened, 50m, Grey PVC Sheath, 13 AWG

Lapp ÖLFLEX 150 Series Control Cable, Copper Conductor, 500V - 0015405
