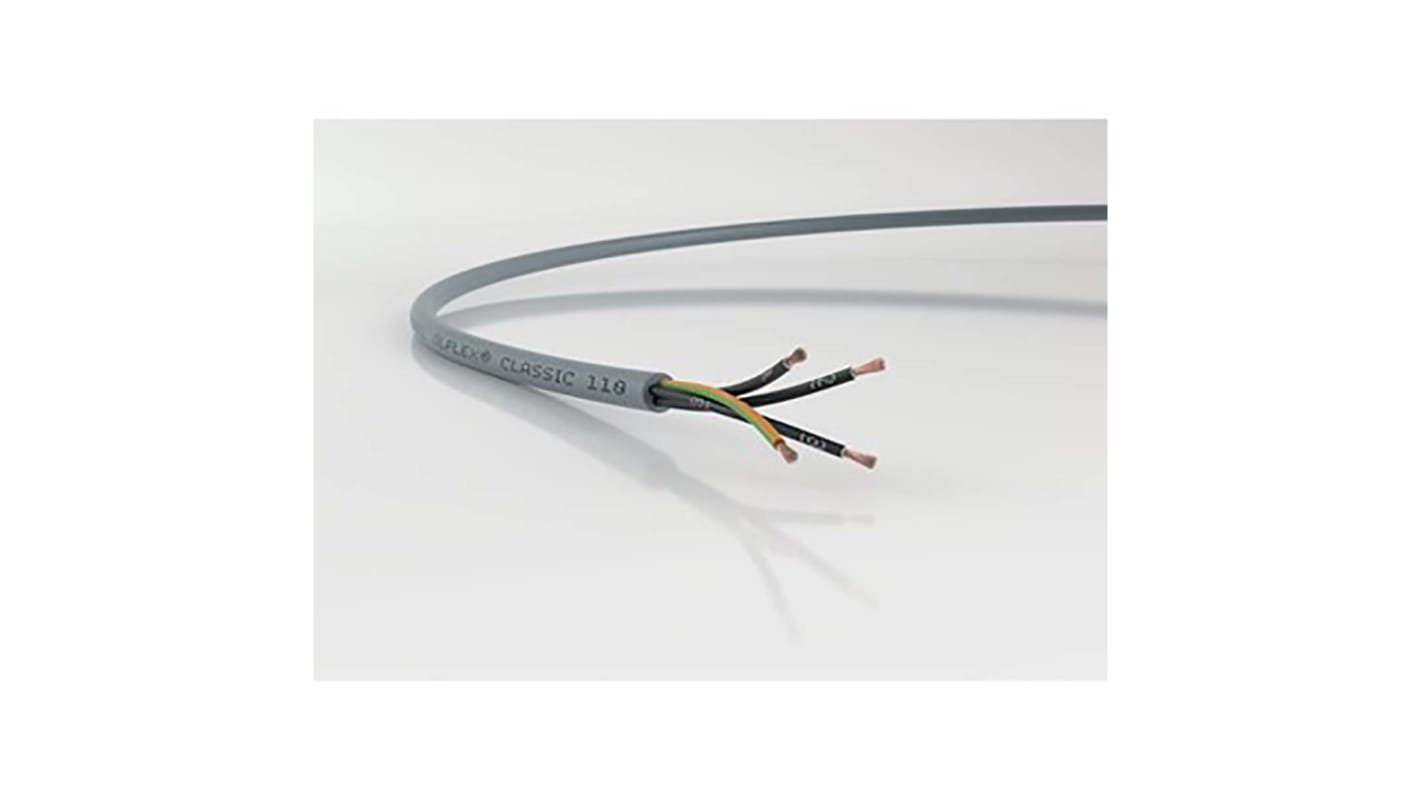

RS PRO Control Cable, 18 Cores, 0.5 mm², YY, Unscreened, 50m, Grey PVC Sheath, 20 AWG
- RS Stock No.:
- 827-4307
- Manufacturer:
- RS PRO
Subtotal (1 reel of 50 metres)*
€192.83
(exc. VAT)
€237.18
(inc. VAT)
In Stock
- 8 unit(s) ready to ship from another location
- Plus 10 unit(s) shipping from 26 June 2025
- Plus 30 unit(s) shipping from 10 July 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | €192.83 | €3.857 |
*price indicative
- RS Stock No.:
- 827-4307
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Cores | 18 | |
| Cross Sectional Area | 0.5 mm² | |
| American Wire Gauge | 20 AWG | |
| Conductor Material | Bare Copper | |
| Sheath Material | PVC | |
| Control Cable Type | YY | |
| Sheath Colour | Grey | |
| Screened/Unscreened | Unscreened | |
| Minimum Bend Radius | Fixed - 4 x D Occasional Flexing - 15 x D | |
| Outer Diameter | 10.5mm | |
| Length | 50m | |
| Voltage Rating | 300 V | |
| Current Rating | 9 A | |
| CPR Certification | Eca | |
| Maximum Operating Temperature | +80°C | |
| Insulation Material | PVC | |
| Minimum Operating Temperature | -40°C | |
| Filler Material | Non-Wicking Filler | |
| Core Strands | 16/0.20 mm | |
| Oil Resistant | Yes | |
| Earth Cable | Yes | |
| Conductor Resistance | 39 Ω/km | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Cores 18 | ||
Cross Sectional Area 0.5 mm² | ||
American Wire Gauge 20 AWG | ||
Conductor Material Bare Copper | ||
Sheath Material PVC | ||
Control Cable Type YY | ||
Sheath Colour Grey | ||
Screened/Unscreened Unscreened | ||
Minimum Bend Radius Fixed - 4 x D Occasional Flexing - 15 x D | ||
Outer Diameter 10.5mm | ||
Length 50m | ||
Voltage Rating 300 V | ||
Current Rating 9 A | ||
CPR Certification Eca | ||
Maximum Operating Temperature +80°C | ||
Insulation Material PVC | ||
Minimum Operating Temperature -40°C | ||
Filler Material Non-Wicking Filler | ||
Core Strands 16/0.20 mm | ||
Oil Resistant Yes | ||
Earth Cable Yes | ||
Conductor Resistance 39 Ω/km | ||
