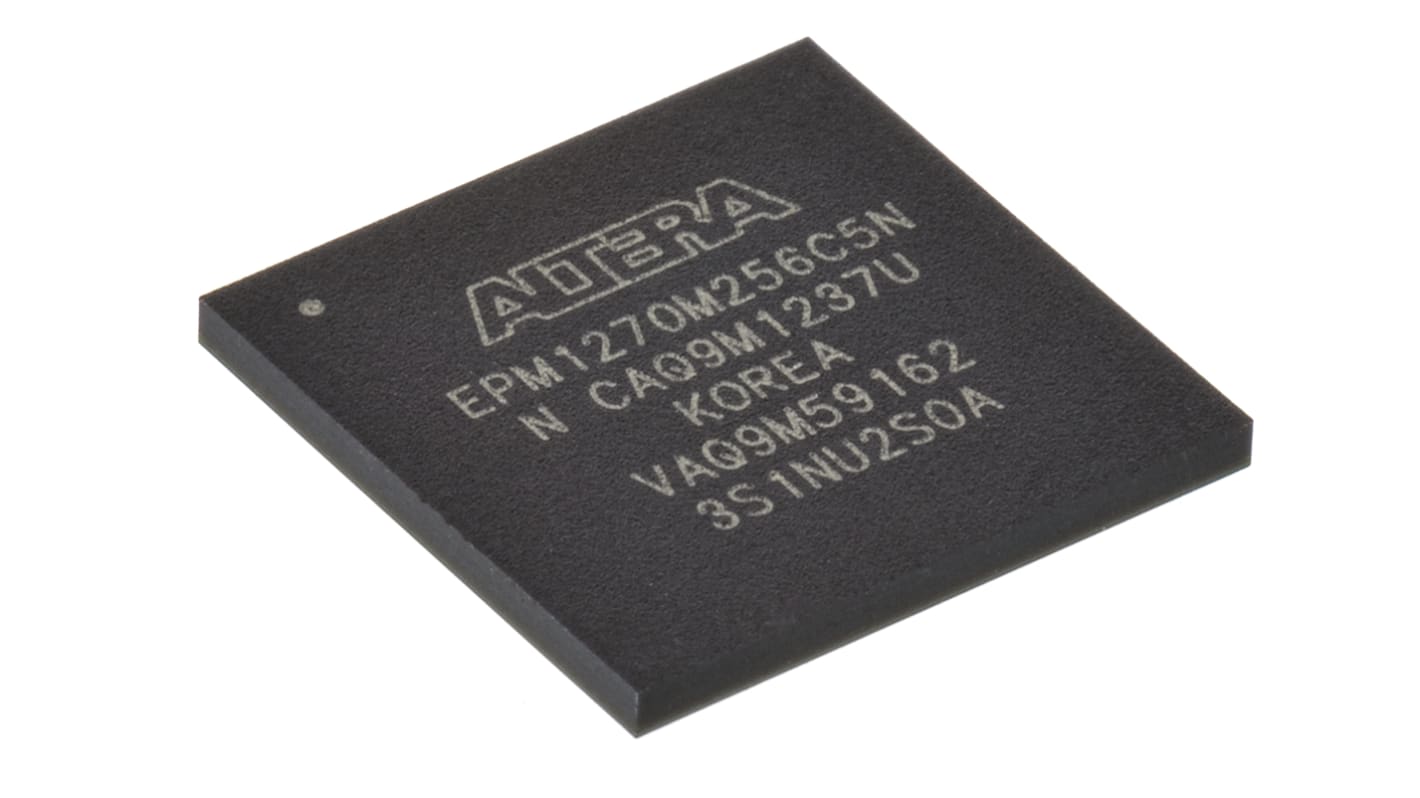

Altera EPM1270M256C5N, CPLD MAX II Flash 980 Cells, 212 I/O, 1270 Labs, 6.2ns, ISP, 256-Pin MBGA

RS Stock No.:: 729-3776
Mfr. Part No.:: EPM1270M256C5N
Manufacturer:: Altera

Altera EPM1270M256C5N, CPLD MAX II Flash 980 Cells, 212 I/O, 1270 Labs, 6.2ns, ISP, 256-Pin MBGA

Subtotal (1 unit)*

€64.61

(exc. VAT)

€79.47

(inc. VAT)

Temporarily out of stock

Shipping from 29 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	€64.61

*price indicative

RS Stock No.:: 729-3776
Mfr. Part No.:: EPM1270M256C5N
Manufacturer:: Altera

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Altera
	Family Name	MAX II
	Number of Macro Cells	980
	Number of User I/Os	212
	Memory Type	Flash
	Number of Logic Blocks/Elements	1270
	In System Programmability	In System
	Mounting Type	Surface Mount
	Package Type	MBGA
	Maximum Operating Temperature	+85 °C
	Minimum Operating Temperature	0 °C
	Pin Count	256
	Propagation Delay	6.2ns
	Individual Output Enable Control	Yes
	Dimensions	11 x 11 x 1.05mm
	Height	1.05mm
	Length	11mm
	Maximum Operating Supply Voltage	3.6 V
	Width	11mm
	Minimum Operating Supply Voltage	3 V
	Propagation Delay Test Condition	10pF

	Select all
	Brand Altera
	Family Name MAX II
	Number of Macro Cells 980
	Number of User I/Os 212
	Memory Type Flash
	Number of Logic Blocks/Elements 1270
	In System Programmability In System
	Mounting Type Surface Mount
	Package Type MBGA
	Maximum Operating Temperature +85 °C
	Minimum Operating Temperature 0 °C
	Pin Count 256
	Propagation Delay 6.2ns
	Individual Output Enable Control Yes
	Dimensions 11 x 11 x 1.05mm
	Height 1.05mm
	Length 11mm
	Maximum Operating Supply Voltage 3.6 V
	Width 11mm
	Minimum Operating Supply Voltage 3 V
	Propagation Delay Test Condition 10pF

Altera EPM1270M256C5N, CPLD MAX II Flash 980 Cells, 212 I/O, 1270 Labs, 6.2ns, ISP, 256-Pin MBGA

Complex Programmable Logic Devices, Altera
