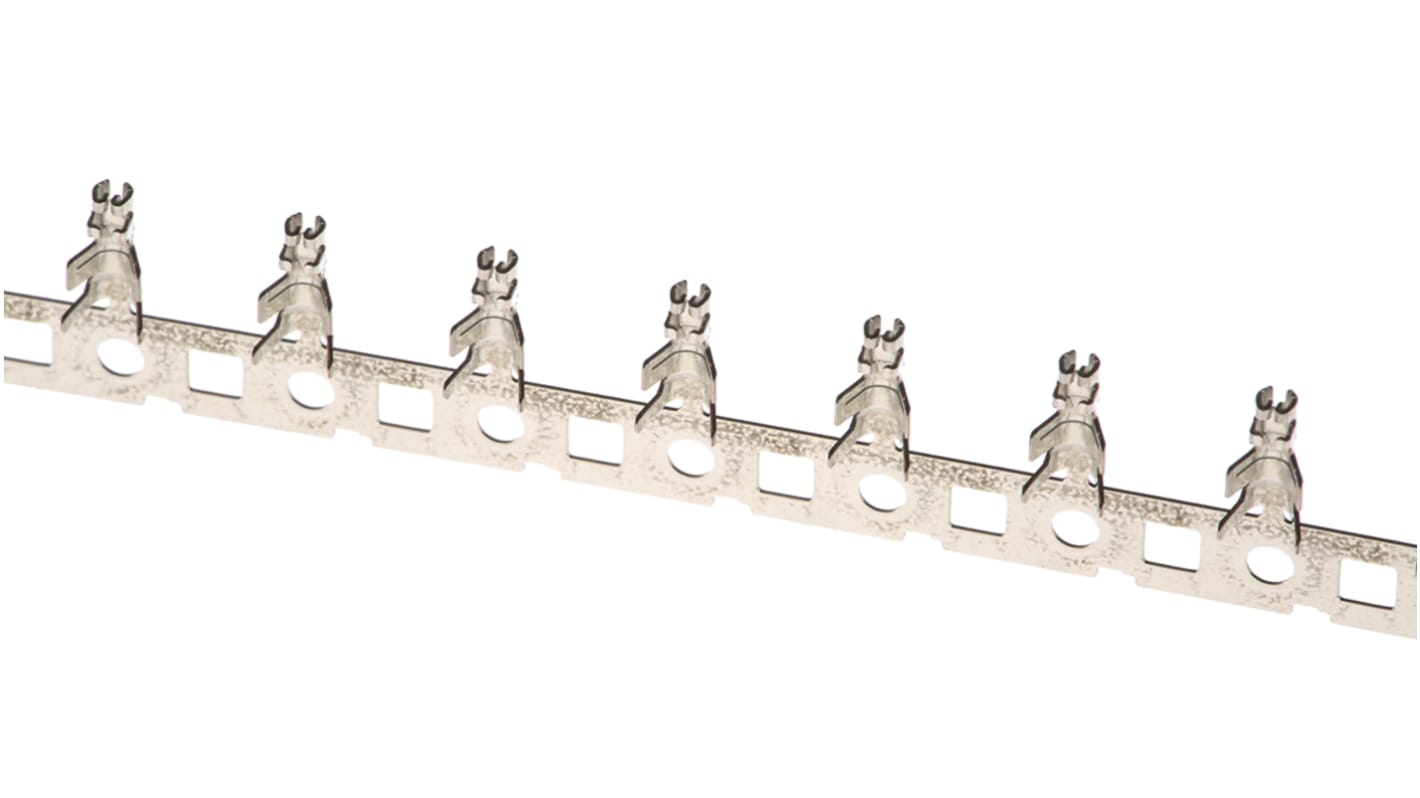

Hirose DF61 Series Female Crimp Terminal, 26AWG Min, 22AWG Max
- RS Stock No.:
- 166-5106
- Mfr. Part No.:
- DF61-2226SCF(41)
- Manufacturer:
- Hirose
Subtotal (1 reel of 18000 units)*
€720.00
(exc. VAT)
€900.00
(inc. VAT)
In Stock
- 18,000 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 18000 + | €0.04 | €720.00 |
*price indicative
- RS Stock No.:
- 166-5106
- Mfr. Part No.:
- DF61-2226SCF(41)
- Manufacturer:
- Hirose
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Gender | Female | |
| For Use With | DF61 Connector Housing | |
| Series | DF61 | |
| Maximum Wire Size mm² | 0.3mm² | |
| Termination Method | Crimp | |
| Minimum Wire Size AWG | 26AWG | |
| Contact Plating | Tin | |
| Contact Material | Copper Alloy | |
| Maximum Wire Size AWG | 22AWG | |
| Maximum Contact Resistance | 10mΩ | |
| Maximum Current | 5A | |
| Minimum Operating Temperature | -35°C | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Hirose | ||
Gender Female | ||
For Use With DF61 Connector Housing | ||
Series DF61 | ||
Maximum Wire Size mm² 0.3mm² | ||
Termination Method Crimp | ||
Minimum Wire Size AWG 26AWG | ||
Contact Plating Tin | ||
Contact Material Copper Alloy | ||
Maximum Wire Size AWG 22AWG | ||
Maximum Contact Resistance 10mΩ | ||
Maximum Current 5A | ||
Minimum Operating Temperature -35°C | ||
Maximum Operating Temperature +85°C | ||
