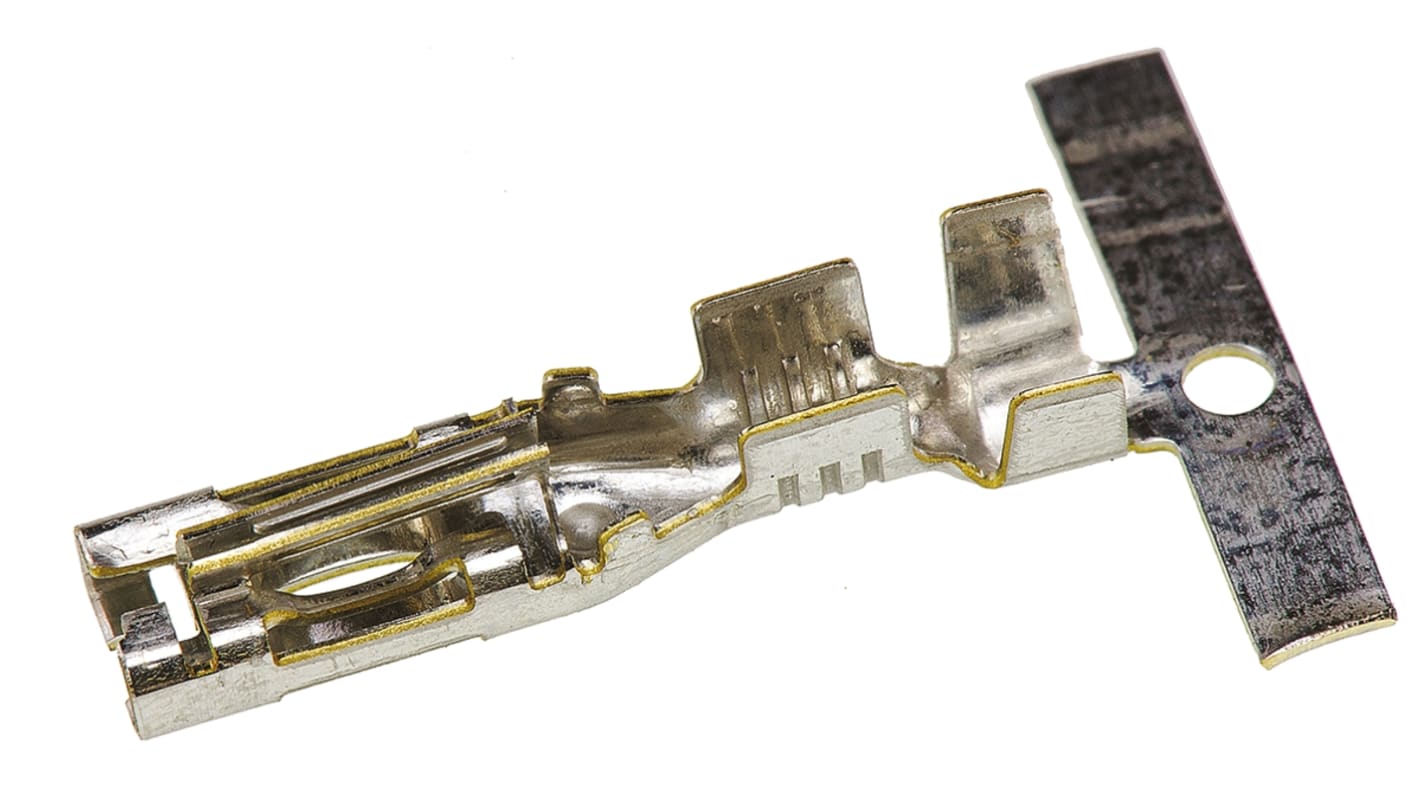

Molex Sabre Series Female Crimp Terminal, 16AWG Min, 14AWG Max
- RS Stock No.:
- 670-2437
- Mfr. Part No.:
- 43375-0001
- Manufacturer:
- Molex
600 In stock for delivery within 2 working days
Added
Price Each (In a Pack of 100)
€0.085
(exc. VAT)
€0.105
(inc. VAT)
| Units | Per unit | Per Pack* |
| 100 - 900 | €0.085 | €8.50 |
| 1000 - 2900 | €0.076 | €7.60 |
| 3000 - 7400 | €0.071 | €7.10 |
| 7500 - 14900 | €0.068 | €6.80 |
| 15000 + | €0.066 | €6.60 |
| *price indicative | ||
- RS Stock No.:
- 670-2437
- Mfr. Part No.:
- 43375-0001
- Manufacturer:
- Molex
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Sabre Contacts & Tooling
Four points of electrical contact for greater contact reliability
14-18 awg
Hand Crimp Tool for Sabre Flat Blade Crimp Terminals
Activation/Deactivation Tool to be used with 43178 Wire to Wire Terminal Series.
Extraction Tool used to extract terminals from housings.
14-18 awg
Hand Crimp Tool for Sabre Flat Blade Crimp Terminals
Activation/Deactivation Tool to be used with 43178 Wire to Wire Terminal Series.
Extraction Tool used to extract terminals from housings.
Standards
UL E29179 and UL1950 ; CSA LR19980
Molex Sabre Crimp Terminal, 14 AWG - 43375-0001
This crimp terminal from Molex is designed to provide reliable contact material for electrical connections. With brass contact plating and options for both female gender and high temperature usage, it offers a low resistance solution for a variety of applications. It is a versatile product suitable for industrial needs.
Features & Benefits
• Reliable brass contact material for better conductivity
• Tin contact plating for durable connections
• Female gender for specific connections
• Tin contact plating for durable connections
• Female gender for specific connections
Applications
• Compatible with Sabre connector housing for secure connections
Can it withstand high temperatures?
Yes, the crimp terminal is designed for use in temperatures up to +75 °C.
Will it provide a reliable connection for industrial applications?
The brass contact material ensures a secure and low resistance connection.
Is it compatible with Sabre series products?
Yes, it is specifically designed to work with Sabre Connector Housing.
Standards
UL E29179; UL1950; CSA LR19980
Molex Sabre Series
7.5mm pitch
Range of robust, single-row connectors, for high current applications up to 18A
System allowing wire-wire and wire-board connection
Suitable for 14 to 18 awg
Positive locking casings with audible click, to prevent accidental disconnection
Casings polarised to ensure correct mating
Contacts completely insulated within the casing
Range of robust, single-row connectors, for high current applications up to 18A
System allowing wire-wire and wire-board connection
Suitable for 14 to 18 awg
Positive locking casings with audible click, to prevent accidental disconnection
Casings polarised to ensure correct mating
Contacts completely insulated within the casing
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| For Use With | Sabre Connector Housing |
| Series | Sabre |
| Minimum Wire Size mm² | 0.8mm² |
| Termination Method | Crimp |
| Maximum Wire Size mm² | 2mm² |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 16AWG |
| Contact Material | Brass |
| Maximum Wire Size AWG | 14AWG |
| Series Number | 43375 |
| Maximum Contact Resistance | 10mΩ |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +75°C |
