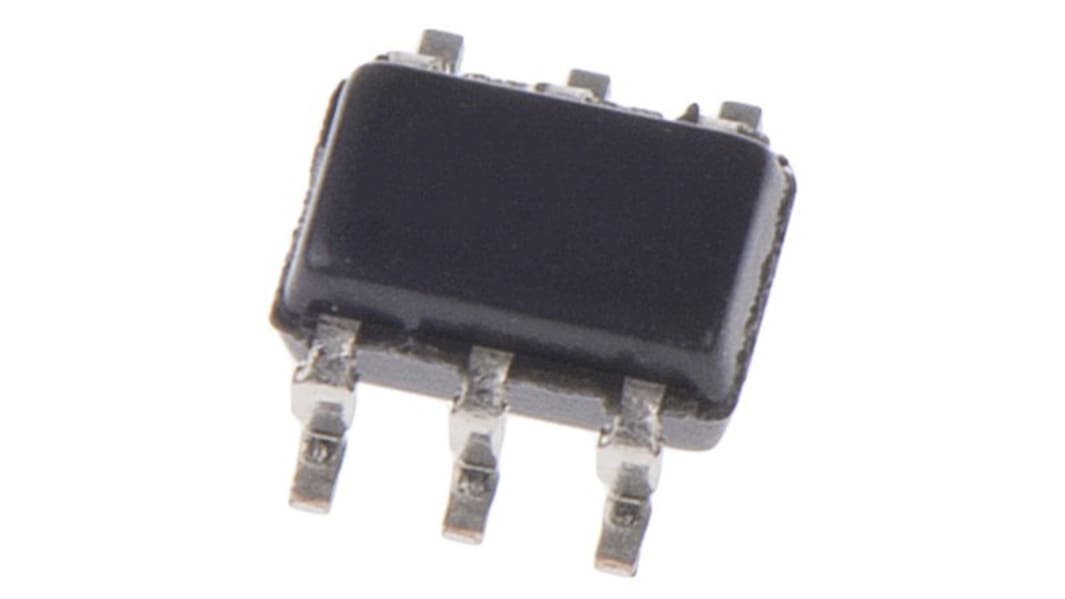

NCV214RSQT2G onsemi, Current Sense Amplifier Single Rail to Rail 6-Pin SC-70

RS Stock No.:: 185-9030
Mfr. Part No.:: NCV214RSQT2G
Manufacturer:: onsemi

NCV214RSQT2G onsemi, Current Sense Amplifier Single Rail to Rail 6-Pin SC-70

Bulk discount available

Price Each (In a Pack of 9)

€0.78

(exc. VAT)

€0.96

(inc. VAT)

Temporarily out of stock - back order for despatch 10-05-2025, delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit	Per Pack**
9 - 81	€0.78	€7.02
90 - 171	€0.673	€6.057
180 - 891	€0.582	€5.238
900 - 1791	€0.512	€4.608
1800 +	€0.467	€4.203

**price indicative

RS Stock No.:: 185-9030
Mfr. Part No.:: NCV214RSQT2G
Manufacturer:: onsemi

Datasheet NCV214RSQT2G

Attribute	Value
Power Supply Type	Single
Typical Single Supply Voltage	2.2 → 26 V
Minimum CMRR	105dB
Number of Channels per Chip	1
Output Type	Rail to Rail
Maximum Supply Current	60 μA
Mounting Type	Surface Mount
Package Type	SC-70
Pin Count	6
Dimensions	2.2 x 1.35 x 1mm
Height	1mm
Length	2.2mm
Maximum Operating Supply Voltage	26 V
Minimum Operating Temperature	-40 °C
Automotive Standard	AEC-Q101
Minimum Operating Supply Voltage	2.2 V
Maximum Operating Temperature	+125 °C
Width	1.35mm

NCV214RSQT2G onsemi, Current Sense Amplifier Single Rail to Rail 6-Pin SC-70
